Name: BALLUFF Photo sensor BOS 18M-PA-ID20-S4 BOS01EY 1 pc(s)
Brand: BALLUFF
SKU: 3418459

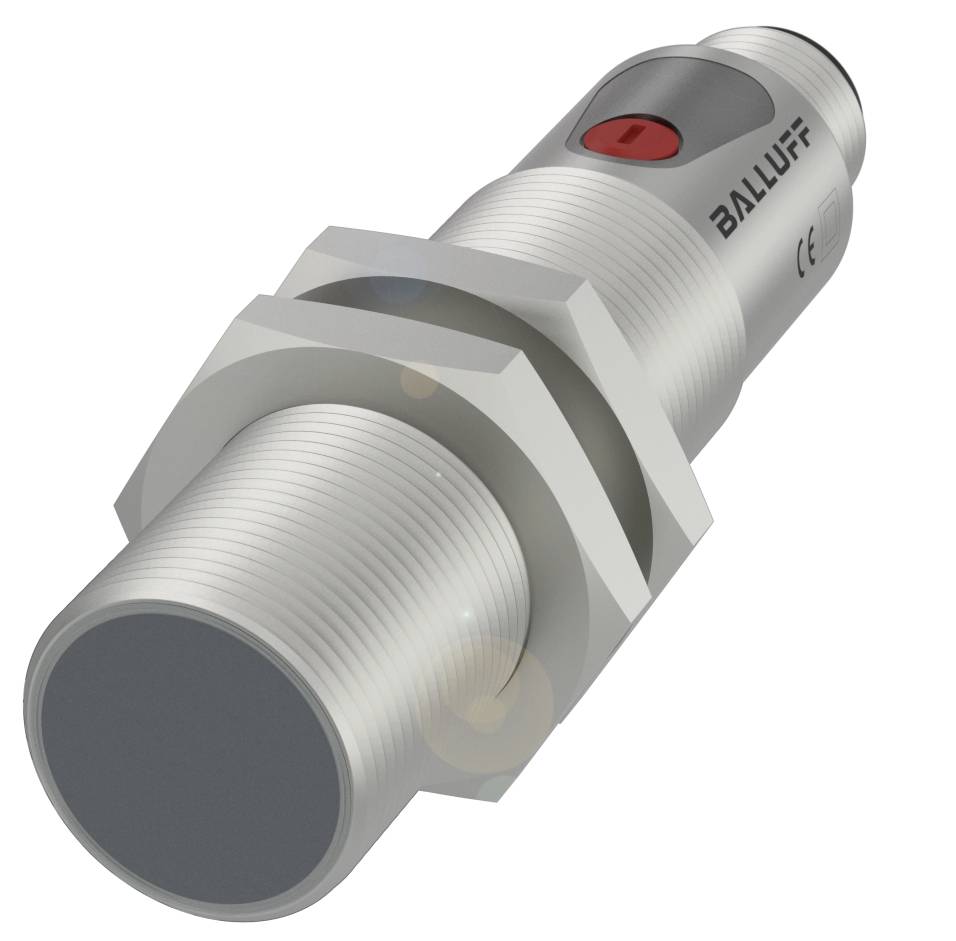

A cylindrical, silver proximity sensor from Balluff with a red marking on top. Suitable for industrial applications.

Image similar

Product type

Photo sensor

Max. operating voltage

30 V DC

Connector

M12 (4-pin)

Type

BOS 18M-PA-ID20-S4

Min. operating voltage

10 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS01EY Cylindrical Light Switch with M18 thread and different types of light

Dimensions: Ø 18 x 75 mm
18M series
PNP NO interface
PNP NC
Functional principle: Optoelectronic sensor
Optical functional principle: Light switch, energetic

Technical specifications

Main features:Dimensions: Ø 18 x 75 mm
Active surface, material: Glass, non-reflecting
Connection: Connector, M12x1 connector, 4-pin
18M series
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical functional principle: Light switch, energetic
Housing material: Nickel-plated brass
LED infrared light
Light spot size: Ø 50 mm with 600 mm
Supplied with nut M18x1 (2x)
Operating instructions
Range 1...800 mm
PNP NO interface
PNP NC
Beam characteristics: Varied
Additional features:
Dimensions: Ø 18 x 75 mm
Attachment: Nut M18x1
Hysteresis H max. (% of Sr): 10.0%
Rated switching distance Sn: 800 mm, adjustable
Temperature drift max. (% of Sr): 10%
MTTF (40 °C) 872 a
Active surface, material: Glass, non-reflecting
Housing material: Nickel-plated brass
Housing material, surface protection: Nickel-plated
Range 1...800 mm
Tightening torque max.: 15 Nm|30 Nm
Surface protection: Nickel-plated
18M series
Shutdown delay toff max.: 0.63 ms

Product type: Photo sensor

Type: BOS 18M-PA-ID20-S4

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Contact type: 1 breaker
1 maker

Connector: M12 (4-pin)

Size: M18

Enclosure material: Brass (Ni-plated)

Material properties: nickel plated

Transmitter type: LED IR

: 800 mm

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3418459 BALLUFF Photo sensor BOS 18M-PA-ID20-S4 BOS01EY 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3418459 BALLUFF Photo sensor BOS 18M-PA-ID20-S4 BOS01EY 1 pc(s)

Description

Energetic light sensors are Ideal for detecting contrast differences. You can detect objects depending on the surface, color and material.They are cost-effective, easy to mount and align. Optoelectronic sensor, light transmitter = LED, connector type = connector, switching output = PNP NO (PNP); PNP NC (pins 4-2, range max. = 800 mm
