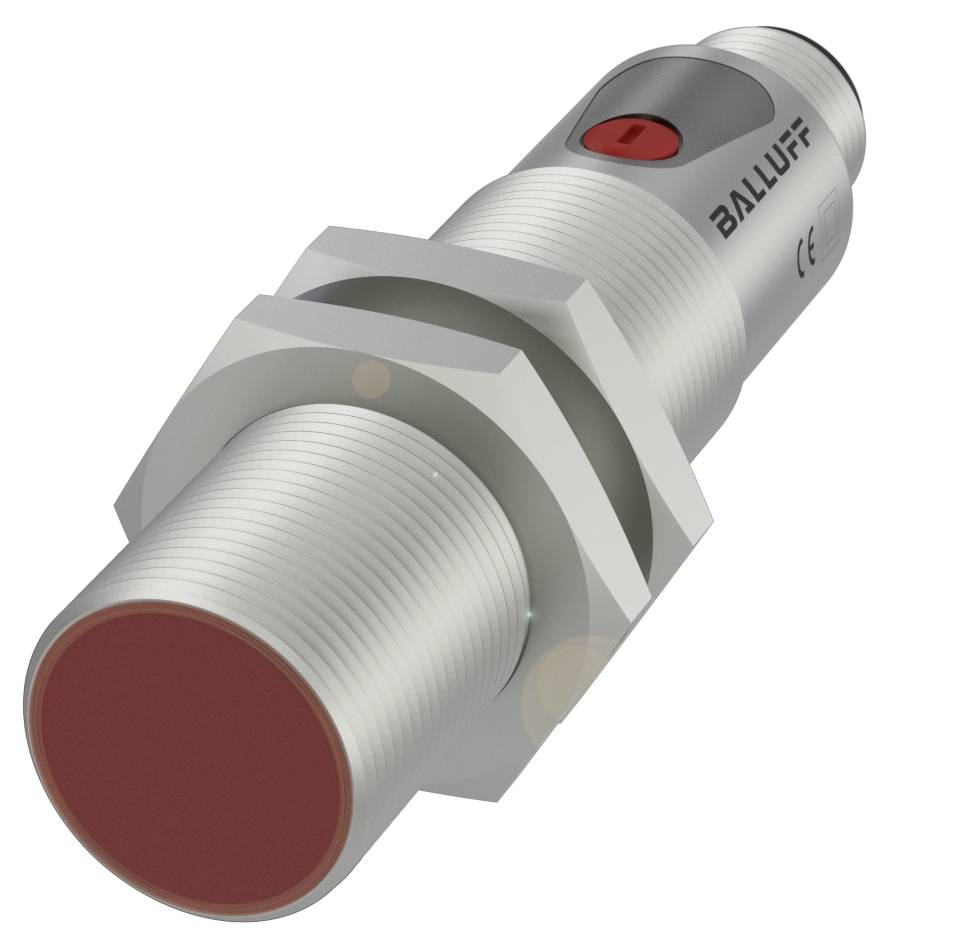

BALLUFF Photo sensor BOS 18M-PO-RD21-S4 BOS01E8 1 pc(s)
EAN:
Part number:
Item no:
Product type
Photo sensor
Max. operating voltage
30 V DC
Connector
M12 (4-pin)
Type
BOS 18M-PO-RD21-S4
Min. operating voltage
10 V DC
Datasheet (PDF)
Highlights & Details
Balluff BOS01E8 Cylindrical light sensors with M18 thread and different types of light
- Dimensions: Ø 18 x 75 mm
- 18M series
- PNP NC interface
- Functional principle: Optoelectronic sensor
- Optical functional principle: Light switch, energetic
Technical specifications
- Main features:Dimensions: Ø 18 x 75 mm
- Active surface, material: Glass, non-reflecting
- Connection: Connector, M12x1 connector, 4-pin
- 18M series
- Operating voltage Ub 10...30 VDC
- Functional principle: Optoelectronic sensor
- Optical functional principle: Light switch, energetic
- Housing material: Nickel-plated brass
- LED red light
- Light spot size: Ø 25 mm with 300 mm
- Supplied with nut M18x1 (2x)
- Operating instructions
- Range 0...300 mm
- PNP NC interface
- Beam characteristics: Varied
- Additional features:
- Dimensions: Ø 18 x 75 mm
- Attachment: Nut M18x1
- Hysteresis H max. (% of Sr): 10.0%
- Rated switching distance Sn: 300 mm, adjustable
- Temperature drift max. (% of Sr): 10%
- MTTF (40 °C) 1299 a
- Active surface, material: Glass, non-reflecting
- Housing material: Nickel-plated brass
- Housing material, surface protection: Nickel-plated
- Range 0...300 mm
- Tightening torque max.: 15 Nm|30 Nm
- Surface protection Mechanical characteristics: Nickel-plated
- Product type
Photo sensor
- Type
BOS 18M-PO-RD21-S4
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 breaker
- Connector
M12 (4-pin)
- Size
M18
- Enclosure material
Brass (Ni-plated)
- Material properties
nickel plated
- Transmitter type
LED red
300 mm
- Depth
75 m
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3418093 BALLUFF Photo sensor BOS 18M-PO-RD21-S4 BOS01E8 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3418093 BALLUFF Photo sensor BOS 18M-PO-RD21-S4 BOS01E8 1 pc(s)
Description
Energetic light sensors are Ideal for detecting contrast differences. You can detect objects depending on the surface, color and material.They are cost-effective, easy to mount and align. Optoelectronic sensor, light transmitter = LED, connector type = connector, switching output = PNP NC) pin 2, range max. = 300 mm
This text is machine translated.
This text is machine translated.
Hints
For more information on this BOS01E8, please refer to its datasheet under 'downloadable documents'
