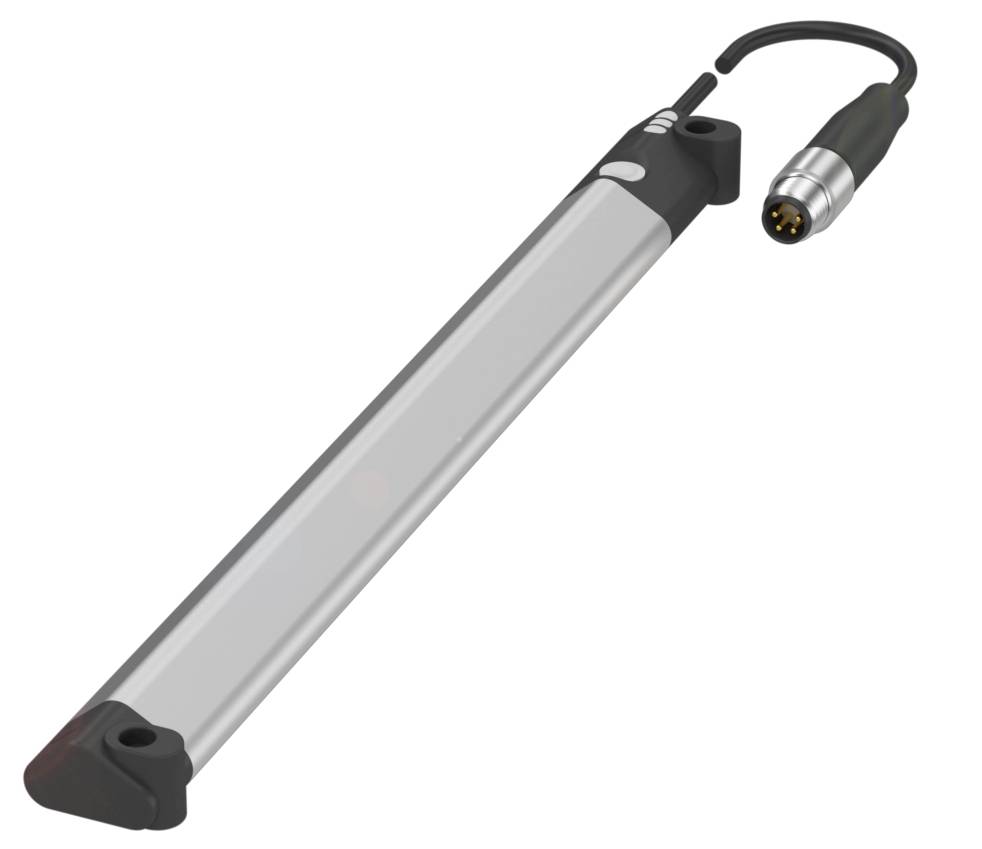

Image similar
BALLUFF Position sensor system Magnetic BMP000A BMP000A Analogue (L x W x H) 170 x 17.5 x 9.6 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Position sensor system
Max. operating voltage
30 V
Outputs
Analogue
Model
Magnetic
Datasheet (PDF)
Highlights & Details
Balluff BMP000A Magnetic field position measuring systems
- Dimensions 17.5 x 9.6 x 170 mm
- Interface: IO-Link 1.1
- Measurement range 160 mm
- Analogue output: Analogue, voltage/analogue, current switchable 0…10 V/4…20 mA
- Resolution ≤ 1 µm (IO-Link), 12 bit (analog)
Technical specifications
- Main features:Dimension 17.5 x 9.6 x 170 mm
- Analogue output: Analogue, voltage/analogue, current switchable 0…10 V/4…20 mA
- Connection: Cable with plug connector, M8x1 plug, 4-pin, 0.5 m, PUR
- Resolution ≤ 1 µm (IO-Link), 12 bit (analog)
- Operating voltage Ub 15...30 VDC
- PA 12 case material
- Aluminium
- Linearity deviation typ.: ±250 µm
- Measurement range 160 mm
- Interface: IO-Link 1.1
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Repeatability 100 µm
- Additional features:
- Functional principle: Magnetic field position measuring system
- Delivery: Quick instructions
- Material: Device
- Dimensions 17.5 x 9.6 x 170 mm
- Operating voltage display: Operation - LED green
- Function display: Yellow LED
- Rated operating voltage Ue DC 24 V
- Rated insulation voltage UI 75 V DC
- Standby delay TV max.: 100 ms
- Operating voltage Ub 15...30 VDC
- M8x1 connector, 4-pin, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- MTTF (40 °C) 201 a
- Cable diameter D 2.4 mm
- Cable length 0.5 m
- Housing material PA 12|Aluminium
- Sheath material: PUR
- Number of conductors: 4
- Cable, bending radius min., fixed laying: 3 x D
- Cable, minimum bending radius, flexible laying 10 x D
- Cable sheath material PUR
- Tightening torque max. 0.1 Nm
- Idle current IO max. at Ue 25 mA
- Application: Positioning
- Measurement range 160 mm
- Resolution ≤ 1 µm (IO-Link), 12 bit (analog)
- Repeatability 100 µm
- Temperature drift max. of final value: ±0.3 %
- Error diagnostic display: Error - red LED
- Output current max. (Analogue U): 5 mA
- Load resistance RL max. (Analogue I): 500 Ohm
- Current capacity in SIO mode: ≤ 100 mA
- Linearity deviation typ.: ±250 µm
- Measured rate max. 1 kHz
- IO-Link Function Classes: 0x8001 Binary Data Channel|0x8004 Teach Commands
- IO-Link Profile IDs: 0x000B SP3.2|0x4000 Identification and|Diagnosis
- Supported IO-Link Profiles: Common Profile|Smart Sensor Profile - Measuring
- Packaging type
Piece
- Product type
Position sensor system
- Type
BMP000A
- Min. operating voltage
15 V
- Max. operating voltage
30 V
- Operating voltage
15 - 30 V
- Outputs
Analogue
- Cable length
0.5 m
- Model
Magnetic
- Connector
M8 (4-pin)
- Enclosure material
PA 12
IP67
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Length
170 mm
- Width
17.5 mm
- Height
9.6 mm
- Dim
(L x W x H) 170 x 17.5 x 9.6 mm
- Jacket material
PUR
- Nominal voltage
30 V
- Operating voltage
24 V DC
- Operating current
24 mA
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3420018 BALLUFF Position sensor system Magnetic BMP000A BMP000A Analogue (L x W x H) 170 x 17.5 x 9.6 mm Piece
User & Safety Instructions
User & Safety Instructions 3420018 BALLUFF Position sensor system Magnetic BMP000A BMP000A Analogue (L x W x H) 170 x 17.5 x 9.6 mm Piece
Description
Magnetic field position measuring systems BMP makes the reliable and wear-free monitoring of running work processes possible. Your intelligent linear feedback, for example, in compact grippers, punching devices or tool changers, helps you to keep control of the various processes, ensure simultaneous processing of objects and at the same time remain energy efficient. Our magnetic field position measuring systems ensure high process reliability and automation quality. Magnetic field position measuring system, connection type 01 = cable with plug connector, housing material primary = PA 12, protection class = IP67, application = positioning
