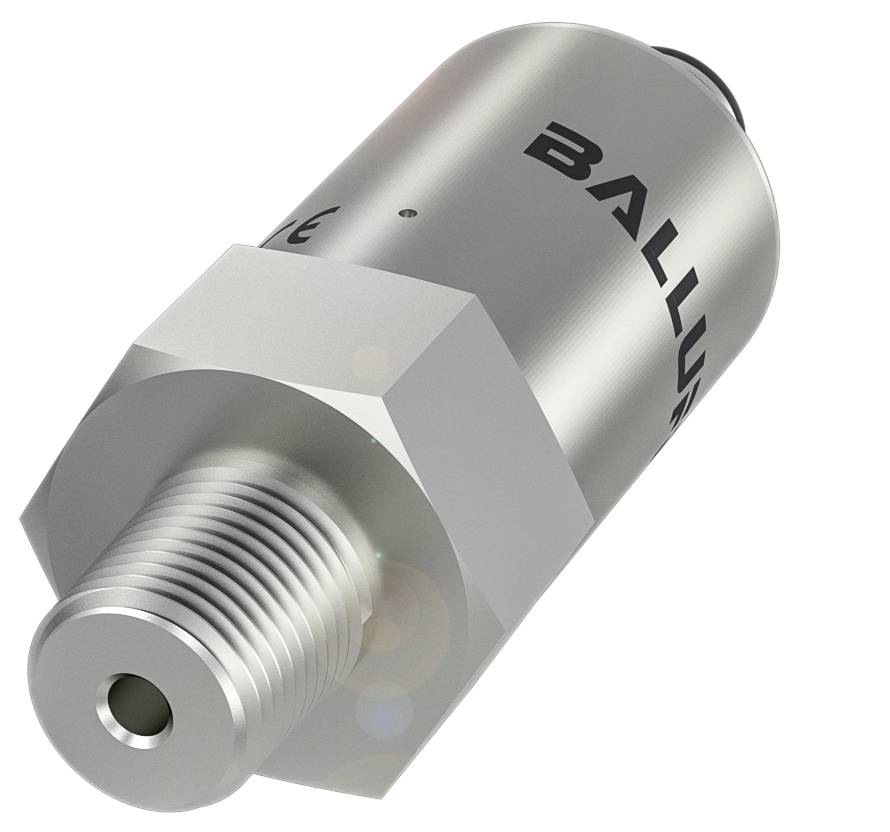

BALLUFF Pressure sensor 1 pc(s) BSP00HZ 0 bar up to 250 bar Plug
EAN:
Part number:
Item no:
Product type
Pressure sensor
Connector
Plug
Pressure reading range (max.)
250 bar
Max. operating voltage
32 V
Type
BSP00HZ
Datasheet (PDF)
Highlights & Details
Balluff BSP00HZ Pressure Sensors Without Display
- Operating voltage Ub 8...32 VDC
- Measurement range: 0...250 bar
- Accuracy ±0.5% FSO BFSL
- Overload pressure 400 bar
- Burst pressure 750 bar
Technical specifications
- Main features:Analog output: Analog, current 4…20 mA
- Connection: Connector, M12x1 connector, 4-pin
- Burst pressure 750 bar
- Operating voltage Ub 8...32 VDC
- Seal material:FKM
- Housing material: Stainless steel (1.4301)
- Accuracy ±0.5% FSO BFSL
- Media temperature: -40...125 °C.
- Measurement range: 0...250 bar
- Process connection R 1/4"
- Process connection material: Stainless steel (1.4301)
- Protection class IP67
- Overload pressure 400 bar
- Ambient temperature: -25 to 85 °C
- Additional features:
- Operating voltage Ub 8...32 VDC
- Protection class III
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- MTTF (40 °C) 1388 a
- Housing material: Stainless steel (1.4301)
- EN 60068-2-27, shock 500 g, 1 ms
- EN 60068-2-6, vibration 10 g, 25…2000 Hz
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Tightening torque max. 30 Nm
- Storage temperature: -40...85 °C
- Weight: 120 g
- Electrical design: 2-wire
- Measurement range: 0...250 bar
- Power consumption max. 25 mA
- Resolution ≤ 14 Bit
- Analog output: Analog, current 4…20 mA
- IEC 61326-2-3:2013
- Accuracy ±0.5% FSO BFSL
- Seal material:FKM
- Temperature coefficient typ.: ≤ ±0.5 % FSO/10K
- Process connection R 1/4"
- Sampling rate 1 ms
- Load cycles 100 MIO
- Burst pressure 750 bar
- Long-term stability max.: 0.3 % FSO/year
- Reaction time max.: 18 ms
- Overload pressure 400 bar
- Measuring cell material: Ceramic Al2O3
- Process connection material: Stainless steel (1.4301)
- Plug casing material: Nickel-plated brass
- Compensation temperature -25...85 °C
- Media temperature: -40...125 °C.
- Noise emission EN 61326-2-3:2013
- Product type
Pressure sensor
- Type
BSP00HZ
- Connector
Plug
- Response time
18 ms
- Outputs
Current (analogue)
- Output signal (min.)
4 A
- Output signal (max.)
20 A
- Interfaces
Analogue amperage
- Resolution
14 Bit
- Accuracy
0.5 %
- Pressure reading range (min.)
0 bar
- Pressure reading range (max.)
250 bar
- Pressure reading range
0 bar up to 250 bar
- Min. operating voltage
8 V
- Max. operating voltage
32 V
- Operating voltage
8 - 32 V
- Burst load
750 bar
IP67
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Weight
120 g
- Content
1 pc(s)
- Nominal voltage
32 V
- Enclosure material
Stainless steel
- Material
Stainless steel
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416458 BALLUFF Pressure sensor 1 pc(s) BSP00HZ 0 bar up to 250 bar Plug
User & Safety Instructions
User & Safety Instructions 3416458 BALLUFF Pressure sensor 1 pc(s) BSP00HZ 0 bar up to 250 bar Plug
Description
Measuring range=0...250 bar, accuracy=±0.5 % FSO BFSL, overload pressure=400 bar, burst pressure=750.00 bar, operating voltage Ub=8...32 VDC, analog output=analog, 4.20 mA current, connector=connector, M12x1 plug, 4-pin, process connector=R 1/4", Process connection material=stainless steel (1.4301), sealing ring material=FKM, housing material=stainless steel (1.4301), medium temperature=-40...125 °C, ambient temperature=-40...85 °C, Protection class=IP67, Approval/conformity=CecULusWEEE
