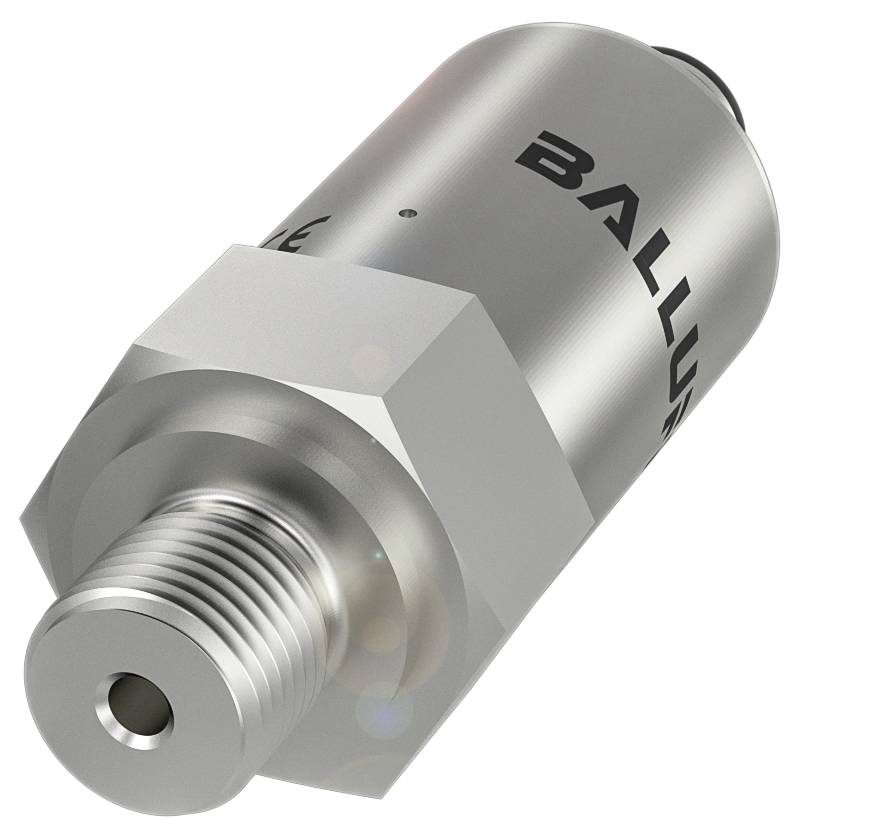

BALLUFF Pressure sensor 1 pc(s) BSP00PK -1 bar up to 10 bar Plug 1 PNP
EAN:
Part number:
Item no:
Product type
Pressure sensor
Connector
Plug
Pressure reading range (max.)
10 bar
Max. operating voltage
30 V
Contact type
1 PNP
Datasheet (PDF)
Highlights & Details
Balluff BSP00PK pressure sensors without display
- Operating voltage Ub 18...30 VDC
- Measuring range: 1 - 10 bar
- Accuracy ±0.5% FSO BFSL
- Overload pressure 20 bar
- Burst pressure 35 bar
Technical specifications
- Main features:Connection: Connector, M12x1 connector, 4-pin
- Burst pressure 35 bar
- Operating voltage Ub 18...30 VDC
- Seal material:FKM
- Housing material: Stainless steel (1.4301)
- Accuracy ±0.5% FSO BFSL
- Media temperature: -40...125 °C.
- Measuring range: 1 - 10 bar
- Process connection G 1/4" (DIN 3852)
- Process connection material: Stainless steel (1.4301)
- Switching output PNP NO/NC
- Interface: IO-Link 1.1
- Protection class IP67
- Overload pressure 20 bar
- Ambient temperature: -25 to 85 °C
- Additional features:
- Operating voltage Ub 18...30 VDC
- Switching frequency 200 Hz
- Protection class III
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- MTTF (40 °C) 661 a
- Switching output PNP NO/NC
- Housing material: Stainless steel (1.4301)
- EN 60068-2-27, shock 500 g, 1 ms
- EN 60068-2-6, vibration 10 g, 25…2000 Hz
- Protection class IP67
- Ambient temperature: -25 to 85 °C
- Output current max. 250 mA
- Tightening torque max. 5 Nm
- Storage temperature: -40...85 °C
- Weight: 120 g
- Measuring range: 1 - 10 bar
- Power consumption maximum 30 mA
- Resolution ≤ 12 Bit
- Interface: IO-Link 1.1
- IEC 61326-2-3:2013
- IO-Link Profile IDs: 0x0001 SP0
- Accuracy ±0.5% FSO BFSL
- Seal material:FKM
- Temperature coefficient typ.: ≤ ±0.5 % FSO/10K
- Process connection G 1/4" (DIN 3852)
- Sampling rate 1 ms
- Load cycles 100 MIO
- Burst pressure 35 bar
- Long-term stability max.: 0.3 % FSO/year
- Reaction time max.: 13 ms
- Overload pressure 20 bar
- Measuring cell material: Ceramic Al2O3
- Process connection material: Stainless steel (1.4301)
- Plug casing material: Nickel-plated brass
- Compensation temperature -25...85 °C
- Media temperature: -40...125 °C.
- Noise emission EN 61326-2-3:2013
- Min. Switching cycle 100 MIO
- Product type
Pressure sensor
- Type
BSP00PK
- Connector
Plug
- Response time
13 ms
- Outputs
PNP
- Interfaces
IO-Link
- Resolution
12 Bit
- Accuracy
0.5 %
- Pressure reading range (min.)
-1 bar
- Pressure reading range (max.)
10 bar
- Pressure reading range
-1 bar up to 10 bar
- Min. operating voltage
18 V
- Max. operating voltage
30 V
- Operating voltage
18 - 30 V
- Contact type
1 PNP
- Burst load
35.00 bar
IP67
- Min. temperature
-25 °C
- Max. temperature
85 °C
- Weight
120 g
- Content
1 pc(s)
- Nominal voltage
30 V
- Max. power rating per slot
250 mA
- Enclosure material
Stainless steel
- Material
Stainless steel
- Switching frequency
200 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416294 BALLUFF Pressure sensor 1 pc(s) BSP00PK -1 bar up to 10 bar Plug 1 PNP
User & Safety Instructions
User & Safety Instructions 3416294 BALLUFF Pressure sensor 1 pc(s) BSP00PK -1 bar up to 10 bar Plug 1 PNP
Description
Measuring range=-1...10 bar, accuracy=±0.5 % FSO BFSL, overload pressure=20 bar, burst pressure=35.00 bar, operating voltage Ub=18...30 VDC, interface=IO-Link 1.1, Switch output=PNP NO/NC contact (NO/NC), connection=connector, M12x1 connector, 4-pole, process connection=G 1/4" (DIN 3852), process connection material=stainless steel (1.4301), sealing ring material=FKM, housing material=stainless steel (1.4301), media temperature=-40...125 °C, Ambient temperature=-25...85 °C, protection class=IP67, approval/conformity=CecULusWEEE
