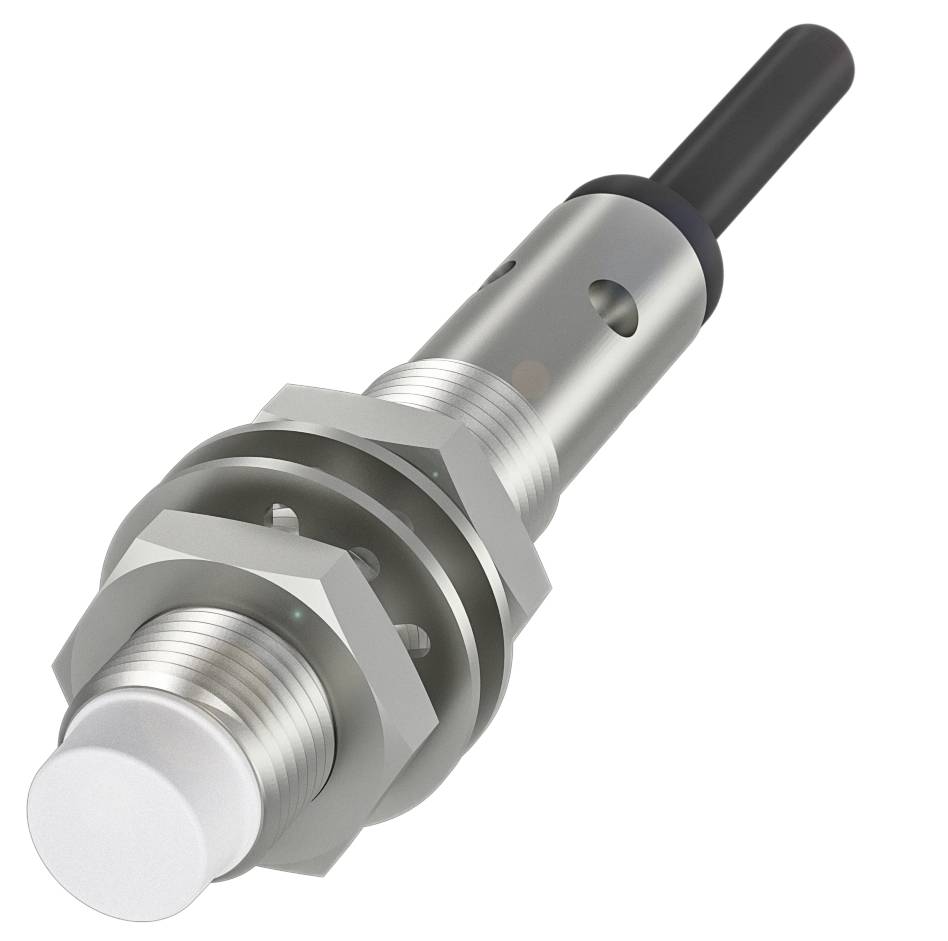

BALLUFF Proximity sensor Inductive BAW M12MF2-UAC40F-BP03 BAW0017 M12 non-shielded Voltage (analogue) (Ø x H) 12 mm x 65
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
30 V DC
Outputs
Voltage (analogue)
Model
Inductive
Connector
Cable
Datasheet (PDF)
Highlights & Details
Balluff BAW0017 Cylindrical design with metric thread
- Dimensions: Ø 12 x 65 mm
- Design M12x1
- Fitting: Non-shielded
- Range 1...4 mm
- Analogue output: Analogue, voltage 0 - 10 V
Technical specifications
- Main features:Dimensions: Ø 12 x 65 mm
- Active surface, material: PBT
- Analogue output: Analogue, voltage 0 - 10 V
- Connection: Cable, 3.00 m, PUR
- Output characteristic: Falling upon approximation
- Design M12x1
- Operating voltage Ub 15...30 VDC
- Fitting: Non-shielded
- Housing material: Nickel-plated brass
- Cut-off frequency –3 dB: 500 Hz
- Linearity deviation max.: ±90 µm
- Range 1...4 mm
- Protection class IP67
- Ambient temperature -10...70 °C
- Repeatability according to BWN: ±10 µm
- Additional features:
- Dimensions: Ø 12 x 65 mm
- Operating voltage display: No.
- Function display: Adjustment display
- Rated operating voltage Ue DC 24 V
- Rated insulation voltage UI 250 V AC
- Operating voltage Ub 15...30 VDC
- Residual ripple max. (% of Ue): 15%
- Protection class: II
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- MTTF (40 °C) 640 a
- Active surface, material: PBT
- Tightening torque 15 Nm
- Size M12x1
- Mounting length 35.5 mm
- Fitting: Non-shielded
- Connection type: Cable, 3.00 m, PUR
- Cable diameter D 4.60 mm
- Cable length 3 m
- Housing material: Nickel-plated brass
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature -10...70 °C
- Pollution level 3
- Number of conductors: 3
- Conductor cross-section: 0.34 mm²
- Idle current IO max. at Ue 10 mA
- Measurement range 1...4 mm
- Cut-off frequency –3 dB: 500 Hz
- Load resistance RL min.: 2000 ohms
- Gradient U 3.30 V/mm
- Linearity deviation max.: ±90 µm
- Linearity range Sl: 1...4 mm
- Temperature drift max. of final value: ±5.0 %
- Analogue output: Analogue, voltage 0 - 10 V
- Output characteristic: Falling upon approximation
- Output voltage at Se 5 V
- Output voltage at SL max. 10 V
- Output voltage at SL min. 0 V
- Exchange option protected Recording range/Measuring range: Yes
- Repeatability according to BWN Functional safety: ±10 µm
- Product type
Proximity sensor
- Type
BAW M12MF2-UAC40F-BP03
- Min. operating voltage
15 V DC
- Max. operating voltage
30 V DC
- Operating voltage
15 - 30 V DC
- Outputs
Voltage (analogue)
- Enclosure material
Brass (Ni-plated)
PBT
- Model
Inductive
- Material properties
nickel plated
- Installation type
non-shielded
- Size
M12
- Connector
Cable
- Cable length
3 m
- Min. temperature
-10 °C
- Max. temperature
70 °C
IP67
- Length
65 mm
- Height
65 m
- (Ø)
12 mm
- Dim
(Ø x H) 12 mm x 65 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416824 BALLUFF Proximity sensor Inductive BAW M12MF2-UAC40F-BP03 BAW0017 M12 non-shielded Voltage (analogue) (Ø x H) 12 mm x 65
User & Safety Instructions
User & Safety Instructions 3416824 BALLUFF Proximity sensor Inductive BAW M12MF2-UAC40F-BP03 BAW0017 M12 non-shielded Voltage (analogue) (Ø x H) 12 mm x 65
Description
Our inductive distance sensors BAW measure different positions and distances and can also distinguish between different material variants. They operate non-contact, are therefore wear-free and have a long service life.Their teaching function has an adjustable linearity range, WAS enables rapid commissioning during initial installation and ensures low downtimes during sensor replacement.Due to the variety of available designs, inductive distance sensors can be easily integrated into any application. Among the most important areas of application are the monitoring of movements in joining, punching or clamping devices of mechanical engineering or the detection of unbalances and expansion of axes.The inductive distance sensors provide an absolute analog voltage, current or IO-Link signal. Dimensions = Ø 12 x 65 mm, design = M12x1, installation = not flush, range = 1...4 mm, analogue output = analogue, voltage 0...10 V, output characteristic = falling when approach is approached, limit frequency -3 dB = 500 Hz, repeatability according to BWN = ±10 µm, linearity deviation max. = µm 90 ±, housing material = brass, nickel-plated, Active surface, material = PBT, Connection = cable, 3.00 m, PUR, operating voltage Ub = 15...30 VDC, ambient temperature = -10...70 °C, protection class = IP67, certification/conformity = CE, UKCA, cULus, WEEE
