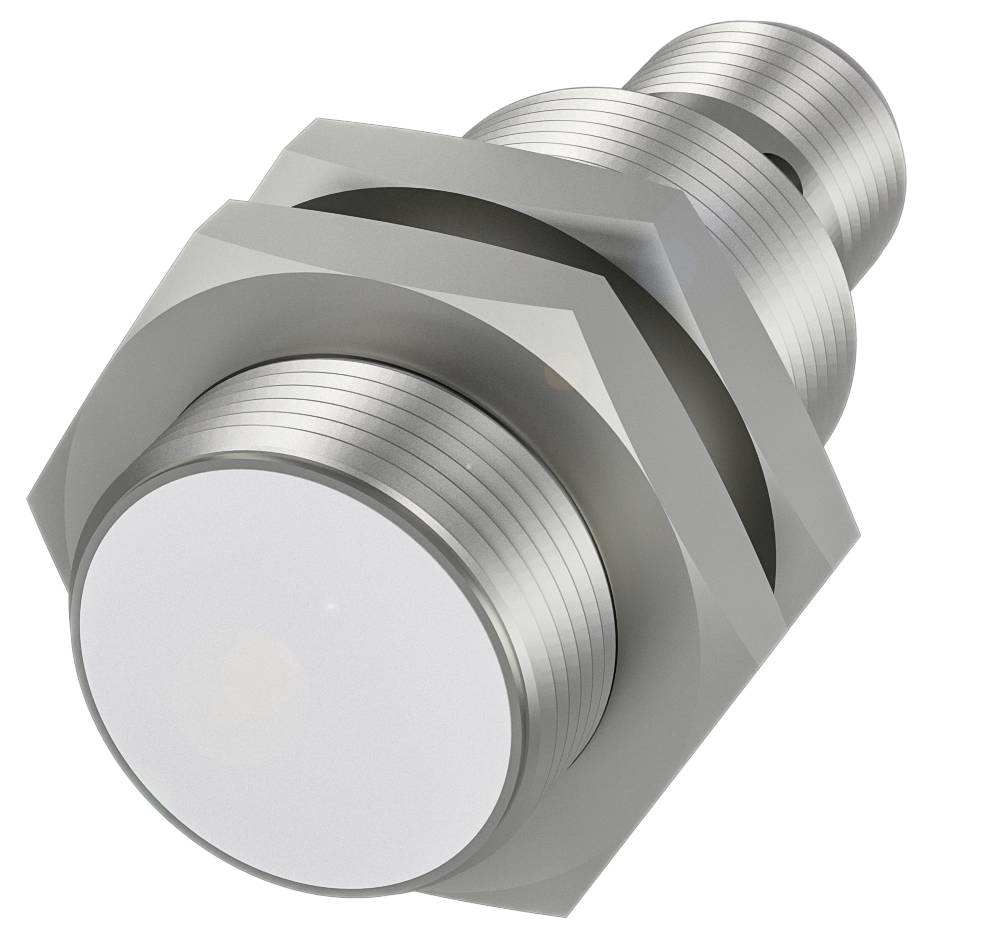

BALLUFF Proximity sensor Inductive BAW M18ME-UAE50B-S04G-K BAW0026 shielded Voltage (analogue) (Ø x H) 18 mm x 44.5 mm
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
26.4 V DC
Outputs
Voltage (analogue)
Model
Inductive
Connector
M12 (4-pin)
Datasheet (PDF)
Highlights & Details
Balluff BAW0026 Cylindrical design with metric thread
- Dimensions: Ø 18 x 44.5 mm
- Design M18x1
- Flush mounting
- Range 1...5 mm
- Analog output: Analog, voltage 0…10 V.
- Analogue temperature
Technical specifications
- Main features:Dimensions: Ø 18 x 44.5 mm
- Active surface, material: PBT
- Analog output: Analog, voltage 0…10 V.
- Analogue temperature
- Connection: Connector, M12x1 connector, 4-pin
- Output characteristic: Falling upon approximation
- Design M18x1
- Operating voltage Ub 21.6...26.4 VDC
- Flush mounting
- Housing material: Nickel-plated brass
- Cut-off frequency –3 dB: 500 Hz
- Linearity deviation max.: ±120 µm
- Range 1...5 mm
- Protection class IP67
- Ambient temperature -10...70 °C
- Repeatability according to BWN: ±8 µm
- Additional features:
- Dimensions: Ø 18 x 44.5 mm
- Operating voltage display: No.
- Rated operating voltage Ue DC 24 V
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 21.6...26.4 VDC
- Residual ripple max. (% of Ue): 10%
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Option to switch, protected: No.
- MTTF (40 °C) 640 a
- Active surface, material: PBT
- Tightening torque 25 Nm
- Size M18x1
- Mounting length 30.0 mm
- Flush mounting: Flush mounting
- Housing material: Nickel-plated brass
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature -10...70 °C
- Pollution level 3
- Idle current IO max. at Ue 10 mA
- Measurement range 1...5 mm
- Cut-off frequency –3 dB: 500 Hz
- Load resistance RL min.: 2000 ohms
- Gradient U 2.50 V/mm
- Linearity deviation max.: ±120 µm
- Linearity range Sl: 1...5 mm
- Temperature drift max. of final value: ±5.0 %
- Repeatability according to BWN: ±8 µm
- Analog output: Analog, voltage 0…10 V|analog, temperature
- Output characteristic: Falling upon approximation
- Output voltage at Se 5 V
- Output voltage at SL max. 10 V
- Output voltage at SL min. 0 V
- Function display Electrical characteristics: Adjustment display
- Load resistance RT min.: 2000 ohms
- Temperature output -9 mV/°C
- Product type
Proximity sensor
- Type
BAW M18ME-UAE50B-S04G-K
- Min. operating voltage
21.6 V DC
- Max. operating voltage
26.4 V DC
- Operating voltage
21.6 - 26.4 V DC
- Outputs
Voltage (analogue)
- Enclosure material
Brass (Ni-plated)
PBT
- Model
Inductive
- Installation type
shielded
- Connector
M12 (4-pin)
- Min. temperature
-10 °C
- Max. temperature
70 °C
IP67
- Length
44.5 mm
- Width
18 mm
- Height
44.5 mm
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 44.5 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Connection
Connector
- No. of pins
4
- Thread type connection side
M12 x 1
5 mm
- Range (min.) (open area)
1 mm
- Resolution
8 µm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416859 BALLUFF Proximity sensor Inductive BAW M18ME-UAE50B-S04G-K BAW0026 shielded Voltage (analogue) (Ø x H) 18 mm x 44.5 mm
User & Safety Instructions
User & Safety Instructions 3416859 BALLUFF Proximity sensor Inductive BAW M18ME-UAE50B-S04G-K BAW0026 shielded Voltage (analogue) (Ø x H) 18 mm x 44.5 mm
Description
Our inductive distance sensors BAW measure different positions and distances and can also distinguish between different material variants. They operate non-contact, are therefore wear-free and have a long service life.Their teaching function has an adjustable linearity range, WAS enables rapid commissioning during initial installation and ensures low downtimes during sensor replacement.Due to the variety of available designs, inductive distance sensors can be easily integrated into any application. Among the most important areas of application are the monitoring of movements in joining, punching or clamping devices of mechanical engineering or the detection of unbalances and expansion of axes.The inductive distance sensors provide an absolute analog voltage, current or IO-Link signal. Dimensions = Ø 18 x 44.5 mm, design = M18x1, installation = flush, range = 1...5 mm, analogue output = analogue, voltage 0.10 V analogue, temperature, output characteristic = falling upon approach, limit frequency -3 dB = 500 Hz, repeatability according to BWN = ±8 µm, linearity deviation max. = µm 120 ±, housing material = brass, nickel-plated, active surface, material = PBT, Connection = plug connector M12x1 plug, 4-pin, operating voltage Ub = 21.6...26.4 VDC, ambient temperature = -10...70 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
