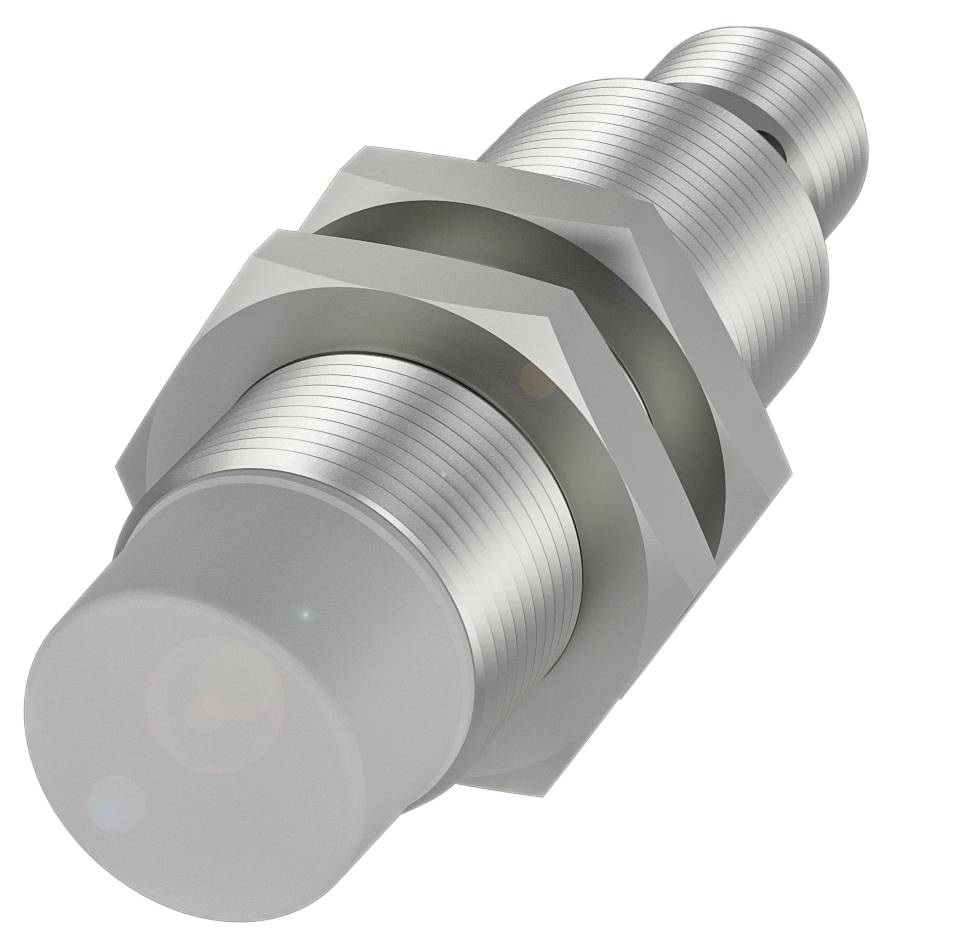

Image similar
BALLUFF Proximity sensor Inductive BAW M18MG-UAC16F-S04G-K BAW0029 M18 x 1 non-shielded Voltage (analogue) (Ø x H) 18 mm
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
30 V DC
Outputs
Voltage (analogue)
Model
Inductive
Connector
M12 (4-pin)
Datasheet (PDF)
Highlights & Details
Balluff BAW0029 Cylindrical design with metric thread
- Dimensions: Ø 18 x 65 mm
- Design M18x1
- Fitting: Non-shielded
- Range 4...16 mm
- Analog output: Analog, voltage 0…10 V.
- Analogue temperature
Technical specifications
- Main features:Dimensions: Ø 18 x 65 mm
- Active surface, material: PBT
- Analog output: Analog, voltage 0…10 V.
- Analogue temperature
- Connection: Connector, M12x1 connector, 4-pin
- Output characteristic: Falling upon approximation
- Design M18x1
- Operating voltage Ub 15...30 VDC
- Fitting: Non-shielded
- Housing material: Nickel-plated brass
- Cut-off frequency –3 dB: 500 Hz
- Linearity deviation max.: ±360 µm
- Range 4...16 mm
- Protection class IP67
- Ambient temperature 10...60 °C
- Repeatability according to BWN: ±200 µm
- Additional features:
- Dimensions: Ø 18 x 65 mm
- Operating voltage display: No.
- Rated operating voltage Ue DC 24 V
- Rated insulation voltage UI 250 V AC
- Operating voltage Ub 15...30 VDC
- Residual ripple max. (% of Ue): 15%
- Protection class: II
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- MTTF (40 °C) 640 a
- Active surface, material: PBT
- Tightening torque 25 Nm
- Size M18x1
- Mounting length 40.5 mm
- Fitting: Non-shielded
- Housing material: Nickel-plated brass
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature 10...60 °C
- Pollution level 3
- Idle current IO max. at Ue 10 mA
- Measurement range 4...16 mm
- Cut-off frequency –3 dB: 500 Hz
- Load resistance RL min.: 2000 ohms
- Gradient U 0.83 V/mm
- Linearity deviation max.: ±360 µm
- Linearity range Sl: 4...16 mm
- Temperature drift max. of final value: ±3.0 %
- Repeatability according to BWN: ±200 µm
- Analog output: Analog, voltage 0…10 V|analog, temperature
- Output characteristic: Falling upon approximation
- Output voltage at Se 5 V
- Output voltage at SL max. 10 V
- Output voltage at SL min. 0 V
- Function display Electrical characteristics: Adjustment display
- Load resistance RT min.: 2000 ohms
- Temperature output -9 mV/°C
- Product type
Proximity sensor
- Type
BAW M18MG-UAC16F-S04G-K
- Min. operating voltage
15 V DC
- Max. operating voltage
30 V DC
- Operating voltage
15 - 30 V DC
- Outputs
Voltage (analogue)
- Enclosure material
Brass (Ni-plated)
PBT
- Model
Inductive
- Material properties
nickel plated
- Installation type
non-shielded
- Size
M18 x 1
- Connector
M12 (4-pin)
- Min. temperature
10 °C
- Max. temperature
60 °C
IP67
- Length
65 mm
- Height
65 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 65 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416817 BALLUFF Proximity sensor Inductive BAW M18MG-UAC16F-S04G-K BAW0029 M18 x 1 non-shielded Voltage (analogue) (Ø x H) 18 mm
User & Safety Instructions
User & Safety Instructions 3416817 BALLUFF Proximity sensor Inductive BAW M18MG-UAC16F-S04G-K BAW0029 M18 x 1 non-shielded Voltage (analogue) (Ø x H) 18 mm
Description
Our inductive distance sensors BAW measure different positions and distances and can also distinguish between different material variants. They operate non-contact, are therefore wear-free and have a long service life.Their teaching function has an adjustable linearity range, WAS enables rapid commissioning during initial installation and ensures low downtimes during sensor replacement.Due to the variety of available designs, inductive distance sensors can be easily integrated into any application. Among the most important areas of application are the monitoring of movements in joining, punching or clamping devices of mechanical engineering or the detection of unbalances and expansion of axes.The inductive distance sensors provide an absolute analog voltage, current or IO-Link signal. Dimensions = Ø 18 x 65 mm, design = M18x1, installation = not flush, range = 4...16 mm, analogue output = analogue, voltage 0.10 V analogue, temperature, output characteristic = dropped when approached, cut-off frequency -3 dB = 500 Hz, repeatability according to BWN = ±200 µm, linearity deviation max. = ±360 µm, Housing material = brass, nickel-plated, active surface, material = PBT, Connection = plug connector M12x1 plug, 4-pin, operating voltage Ub = 15...30 VDC, ambient temperature = 10...60 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
