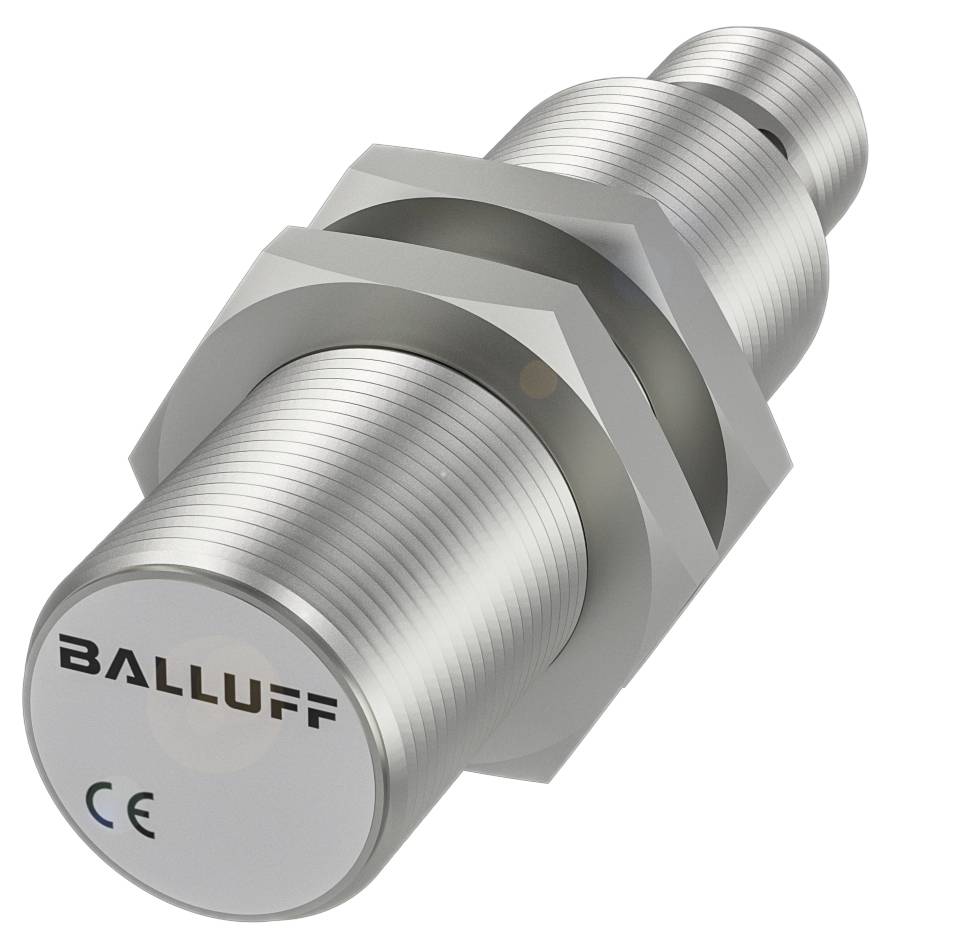

BALLUFF Proximity sensor Inductive BAW002F BAW002F M18 x 1 shielded IO link (Ø x H) 18 mm x 65 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Proximity sensor
Max. operating voltage
30.0 V
Outputs
IO link
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BAW002F Cylindrical design with metric thread
- Dimensions: Ø 18 x 65 mm
- Design M18x1
- Flush mounting
- Range 1...5 mm
- Interface: IO-Link 1.1
- 10 bit
Technical specifications
- Main features:Dimensions: Ø 18 x 65 mm
- Active surface, material: PBT
- Connection: Connector, M12x1 connector, 3-pin
- Output characteristic: Falling upon approximation
- Design M18x1
- Operating voltage Ub 18...30 VDC
- Flush mounting
- Housing material: Nickel-plated brass
- Cut-off frequency –3 dB: 500 Hz
- Linearity deviation max.: ±120 µm
- Range 1...5 mm
- Interface: IO-Link 1.1
- 10 bit
- Protection class IP67
- Ambient temperature -10...70 °C
- Repeatability according to BWN: ±10 µm
- Additional features:
- Dimensions: Ø 18 x 65 mm
- Operating voltage display: No.
- Rated operating voltage Ue DC 24 V
- Rated insulation voltage UI 250 V AC
- Operating voltage Ub 18...30 VDC
- Residual ripple max. (% of Ue): 15%
- Protection class: II
- Connection: M12x1 3-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- MTTF (40 °C) 640 a
- Active surface, material: PBT
- Tightening torque 25 Nm
- Size M18x1
- Mounting length 50.5 mm
- Flush mounting: Flush mounting
- Housing material: Nickel-plated brass
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature -10...70 °C
- Pollution level 3
- Idle current IO max. at Ue 18 mA
- Measurement range 1...5 mm
- Interface: IO-Link 1.1|10 bit
- Cut-off frequency –3 dB: 500 Hz
- Linearity deviation max.: ±120 µm
- Linearity range Sl: 1...5 mm
- Temperature drift max. of final value: ±5.0 %
- Repeatability according to BWN: ±10 µm
- Output characteristic: Falling upon approximation
- Function display Electrical characteristics: Adjustment display
- Packaging type
Piece
- Product type
Proximity sensor
- Type
BAW002F
- Min. operating voltage
18.00 V
- Max. operating voltage
30.0 V
- Operating voltage
18.00 - 30.0 V
- Outputs
IO link
- Switching frequency
500 Hz
- Model
Inductive
- Connector
M18
- Installation type
shielded
- Size
M18 x 1
- Material properties
nickel plated
- Enclosure material
Brass
IP67
- Min. temperature
-10 °C
- Max. temperature
70 °C
- Length
65.00 mm
- Height
65 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 65 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416826 BALLUFF Proximity sensor Inductive BAW002F BAW002F M18 x 1 shielded IO link (Ø x H) 18 mm x 65 m Piece
User & Safety Instructions
User & Safety Instructions 3416826 BALLUFF Proximity sensor Inductive BAW002F BAW002F M18 x 1 shielded IO link (Ø x H) 18 mm x 65 m Piece
Description
Our inductive distance sensors BAW measure different positions and distances and can also distinguish between different material variants. They operate non-contact, are therefore wear-free and have a long service life.Their teaching function has an adjustable linearity range, WAS enables rapid commissioning during initial installation and ensures low downtimes during sensor replacement.Due to the variety of available designs, inductive distance sensors can be easily integrated into any application. Among the most important areas of application are the monitoring of movements in joining, punching or clamping devices of mechanical engineering or the detection of unbalances and expansion of axes.The inductive distance sensors provide an absolute analog voltage, current or IO-Link signal. Dimensions = Ø 18 x 65 mm, design = M18x1, installation = flush, range = 1...5 mm, interface = IO-Link 1.1 10 bit, output characteristic = dropped when approached, limit frequency -3 dB = 500 Hz, repeatability as per BWN = ±10 µm, linearity deviation max. = µm 120 ±, housing material = brass, nickel-plated, Active surface, material = PBT, Connection = plug connector M12x1 plug, 3-pin, operating voltage Ub = 18...30 VDC, ambient temperature = -10...70 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
