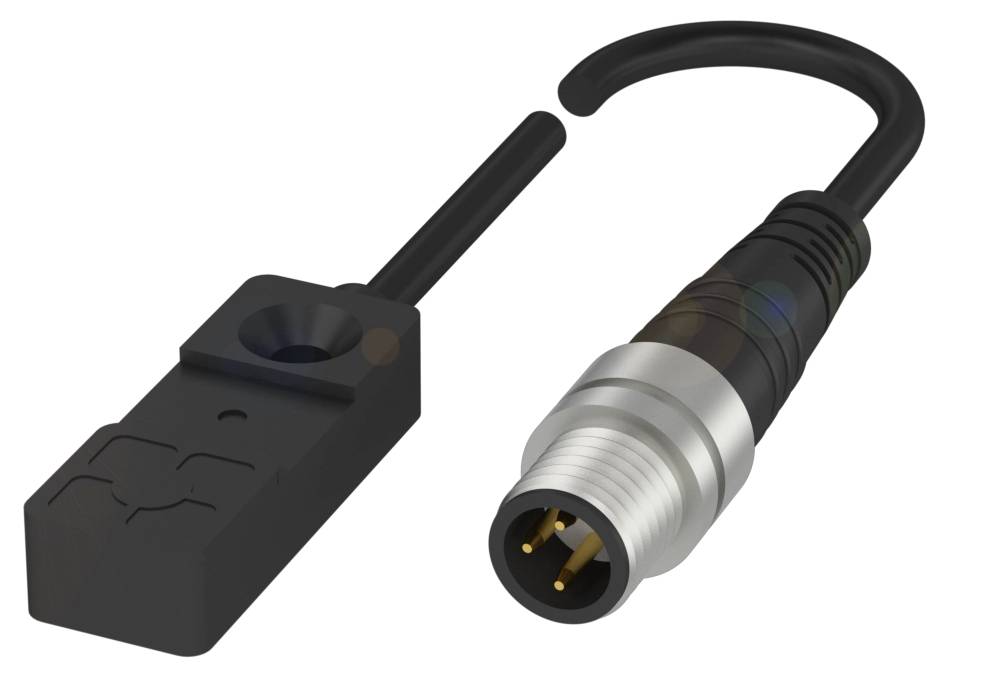

Image similar
BALLUFF Proximity sensor Inductive BAW0031 BAW0031 shielded Voltage (analogue) (L x W x H) 6.00 x 30.00 x 10.00 mm
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
26.4 V
Outputs
Voltage (analogue)
Model
Inductive
Connector
M8 (3-pin)
Datasheet (PDF)
Highlights & Details
Balluff BAW0031 Cubic compact design with through holes for flush mounting
- Dimensions 30 x 10 x 6 mm
- Design: Square-shaped
- Flush mounting
- Range 1...4 mm
- Analogue output: Analogue, voltage 0 - 10 V
Technical specifications
- Main features:Dimension 30 x 10 x 6 mm
- Active surface, material: PA 6, GF30
- Analogue output: Analogue, voltage 0 - 10 V
- Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.30 m, PUR
- Output characteristic: Falling upon approximation
- Design: Square-shaped
- Operating voltage Ub 21.6...26.4 VDC
- Flush mounting
- PA 6, GF30 housing material
- Cut-off frequency –3 dB: 1000 Hz
- Linearity deviation max.: ±150 µm
- Range 1...4 mm
- Protection class IP67
- Ambient temperature 0...70 °C
- Repeatability according to BWN: ±35 µm
- Additional features:
- Dimensions 30 x 10 x 6 mm
- Operating voltage display: No.
- Rated operating voltage Ue DC 24 V
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 21.6...26.4 VDC
- Residual ripple max. (% of Ue): 10%
- M8x1 connection, 3-pin
- Short-circuit protection: No.
- Reverse polarity protection: No.
- Option to switch, protected: No.
- MTTF (40 °C) 640 a
- Active surface, material: PA 6, GF30
- Tightening torque 0.6 Nm
- Flush mounting: Flush mounting
- Connection type: Cable with connector, 0.30 m,|PUR
- Cable diameter D 3.00 mm
- Cable length 0.3 m
- PA 6, GF30 housing material
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature 0...70 °C
- Pollution level 3
- Idle current IO max. at Ue 15 mA
- Measurement range 1...4 mm
- Cut-off frequency –3 dB: 1000 Hz
- Load resistance RL min.: 5000 ohms
- Gradient U 3.30 V/mm
- Linearity deviation max.: ±150 µm
- Linearity range Sl: 1...4 mm
- Temperature drift max. of final value: ±5.0 %
- Repeatability according to BWN: ±35 µm
- Analogue output: Analogue, voltage 0 - 10 V
- Output characteristic: Falling upon approximation
- Output voltage at Se 5 V
- Output voltage at SL max. 10 V
- Output voltage at SL min. 0 V
- Function display Electrical characteristics: Adjustment display
- Product type
Proximity sensor
- Type
BAW0031
- Min. operating voltage
21.6 V
- Max. operating voltage
26.4 V
- Operating voltage
21.6 - 26.4 V
- Outputs
Voltage (analogue)
- Cable length
0.30 m
- Switching frequency
1000 Hz
- Model
Inductive
- Connector
M8 (3-pin)
- Installation type
shielded
- Enclosure material
PA 6 GF 30
IP67
- Min. temperature
0 °C
- Max. temperature
70 °C
- Length
6.00 mm
- Width
30.00 mm
- Height
10.00 mm
- Dim
(L x W x H) 6.00 x 30.00 x 10.00 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416818 BALLUFF Proximity sensor Inductive BAW0031 BAW0031 shielded Voltage (analogue) (L x W x H) 6.00 x 30.00 x 10.00 mm
User & Safety Instructions
User & Safety Instructions 3416818 BALLUFF Proximity sensor Inductive BAW0031 BAW0031 shielded Voltage (analogue) (L x W x H) 6.00 x 30.00 x 10.00 mm
Description
Our inductive distance sensors BAW measure different positions and distances and can also distinguish between different material variants. They operate non-contact, are therefore wear-free and have a long service life.Their teaching function has an adjustable linearity range, WAS enables rapid commissioning during initial installation and ensures low downtimes during sensor replacement.Due to the variety of available designs, inductive distance sensors can be easily integrated into any application. Among the most important areas of application are the monitoring of movements in joining, punching or clamping devices of mechanical engineering or the detection of unbalances and expansion of axes.The inductive distance sensors provide an absolute analog voltage, current or IO-Link signal. Dimensions = 30 x 10 x 6 mm, design = rectangular, installation = flush, range = 1...4 mm, analogue output = analogue, voltage 0...10 V, output characteristic = falling upon approach, limit frequency -3 dB = 1000 Hz, repeatability according to BWN = ±35 µm, linearity deviation max. = ±150 µm, housing material = PA 6, GF30, active surface, material = PA 6, GF30, connection = cable with plug connector, M8x1 plug, 3-pin, 0.30 m, PUR, Operating voltage Ub = 21.6...26.4 VDC, ambient temperature = 0...70 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
