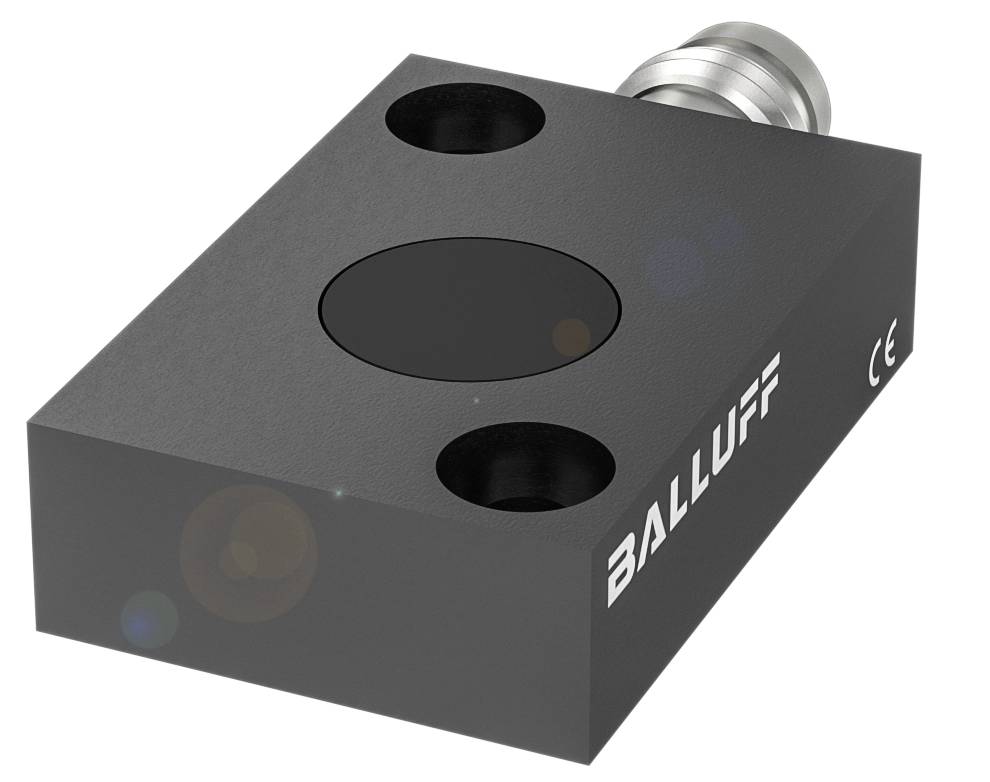

BALLUFF Proximity sensor Inductive BAW0034 BAW0034 shielded Voltage (analogue) (L x W x H) 8.00 x 30.00 x 20.00 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Proximity sensor
Max. operating voltage
26.4 V
Outputs
Voltage (analogue)
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BAW0034 Cubic design with through holes for flush mounting
- Dimensions 30 x 20 x 8 mm
- Design: Square-shaped
- Flush mounting
- Range 0.5...2 mm
- Analogue output: Analogue, voltage 0 - 10 V
Technical specifications
- Main features:Dimension 30 x 20 x 8 mm
- Active surface, material: PBT
- Analogue output: Analogue, voltage 0 - 10 V
- Connection: Plug connector, M8x1 plug, 3-pin
- Output characteristic: Falling upon approximation
- Design: Square-shaped
- Operating voltage Ub 21.6...26.4 VDC
- Flush mounting
- Housing material: Aluminium, anodized
- Cut-off frequency –3 dB: 1000 Hz
- Linearity deviation max.: ±45 µm
- Range 0.5...2 mm
- Protection class IP67
- Ambient temperature -10...70 °C
- Repeatability according to BWN: ±12 µm
- Additional features:
- Dimensions 30 x 20 x 8 mm
- Operating voltage display: No.
- Rated operating voltage Ue DC 24 V
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 21.6...26.4 VDC
- Residual ripple max. (% of Ue): 10%
- M8x1 connection, 3-pin
- Short-circuit protection: No.
- Reverse polarity protection: No.
- Option to switch, protected: No.
- MTTF (40 °C) 640 a
- Active surface, material: PBT
- Flush mounting: Flush mounting
- Housing material: Aluminium, anodized
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature -10...70 °C
- Pollution level 3
- Idle current IO max. at Ue 15 mA
- Measurement range 0.5...2 mm
- Cut-off frequency –3 dB: 1000 Hz
- Load resistance RL min.: 5000 ohms
- Gradient U 6.70 V/mm
- Linearity deviation max.: ±45 µm
- Linearity range Sl: 0.5...2 mm
- Temperature drift max. of final value: ±5.0 %
- Analogue output: Analogue, voltage 0 - 10 V
- Output characteristic: Falling upon approximation
- Output voltage at Se 5 V
- Output voltage at SL max. 10 V
- Output voltage at SL min. 0 V
- Repeatability according to BWN Functional safety: ±12 µm
- Packaging type
Piece
- Product type
Proximity sensor
- Type
BAW0034
- Min. operating voltage
21.60 V
- Max. operating voltage
26.4 V
- Operating voltage
21.60 - 26.4 V
- Outputs
Voltage (analogue)
- Enclosure material
Aluminium
- Model
Inductive
- Installation type
shielded
- Connector
M8 (3-pin)
- Min. temperature
-10 °C
- Max. temperature
70 °C
IP67
- Length
8.00 mm
- Width
30.00 mm
- Height
20.00 mm
- Dim
(L x W x H) 8.00 x 30.00 x 20.00 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Connection
M8 plug
- No. of pins
3
- Thread type connection side
M8
2 mm
- Range (min.) (open area)
0.5 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416825 BALLUFF Proximity sensor Inductive BAW0034 BAW0034 shielded Voltage (analogue) (L x W x H) 8.00 x 30.00 x 20.00 mm Piece
User & Safety Instructions
User & Safety Instructions 3416825 BALLUFF Proximity sensor Inductive BAW0034 BAW0034 shielded Voltage (analogue) (L x W x H) 8.00 x 30.00 x 20.00 mm Piece
Description
Our inductive distance sensors BAW measure different positions and distances and can also distinguish between different material variants. They operate non-contact, are therefore wear-free and have a long service life.Their teaching function has an adjustable linearity range, WAS enables rapid commissioning during initial installation and ensures low downtimes during sensor replacement.Due to the variety of available designs, inductive distance sensors can be easily integrated into any application. Among the most important areas of application are the monitoring of movements in joining, punching or clamping devices of mechanical engineering or the detection of unbalances and expansion of axes.The inductive distance sensors provide an absolute analog voltage, current or IO-Link signal. Dimensions = 30 x 20 x 8 mm, design = rectangular, installation = flush, range = 0.5...2 mm, analogue output = analogue, voltage 0...10 V, output characteristic = falling upon approach, limit frequency -3 dB = 1000 Hz, repeatability according to BWN = ±12 µm, linearity deviation max. = µm 45 ±, housing material = aluminum, anodized, Active surface, material = PBT, Connection = plug connector, M8x1 plug, 3-pin, operating voltage Ub = 21.6...26.4 VDC, ambient temperature = -10...70 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
