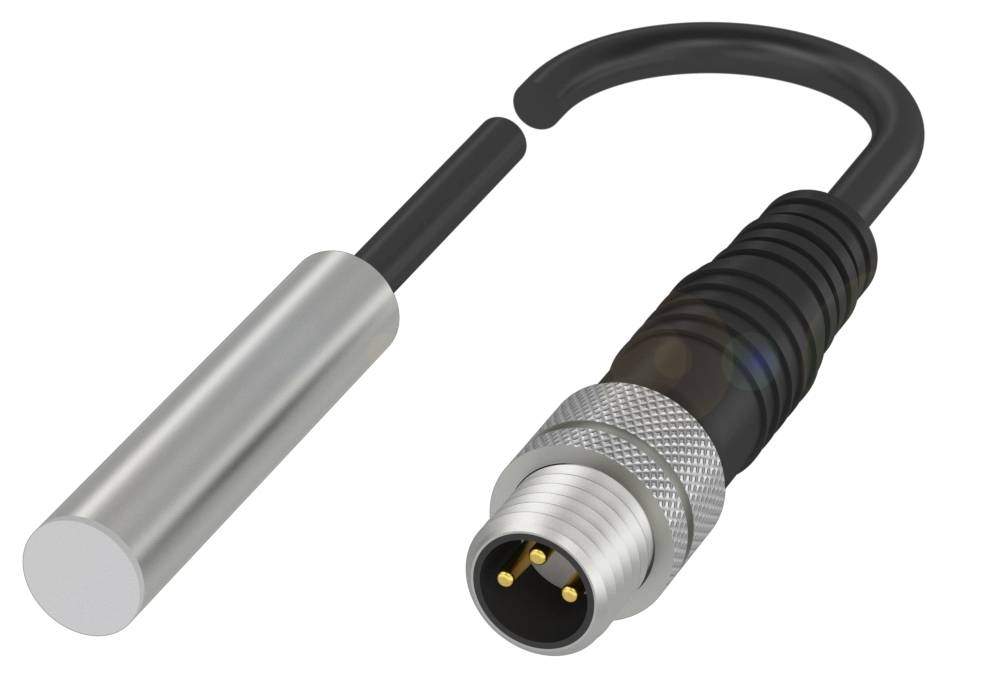

BALLUFF Proximity sensor Inductive BAW005L BAW005L shielded Voltage (analogue) (Ø x L) 6.5 mm x 30.50 mm
EAN:
Part number:
Item no:
Product type
Proximity sensor
Min. operating voltage
21.60 V
Max. operating voltage
26.40 V
Type
BAW005L
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
Balluff BAW005L Cylindrical Miniature version without thread
- Dimensions: Ø 6.5 x 30.5 mm
- D6.5 design
- Flush mounting
- Range 0.5...2 mm
- Analogue output: Analogue, voltage 0 - 10 V
Technical specifications
- Main features:Dimensions: Ø 6.5 x 30.5 mm
- Active surface, material: PBT
- Analogue output: Analogue, voltage 0 - 10 V
- Connection: Cable with plug connector, M8x1 plug, 3-pin, 1.40 m, PUR
- Output characteristic: Falling upon approximation
- D6.5 design
- Operating voltage Ub 21.6...26.4 VDC
- Flush mounting
- Housing material: Stainless steel
- Cut-off frequency –3 dB: 1000 Hz
- Linearity deviation max.: ±45 µm
- Range 0.5...2 mm
- Protection class IP67
- Ambient temperature 10...60 °C
- Repeatability according to BWN: ±10 µm
- Additional features:
- Dimensions: Ø 6.5 x 30.5 mm
- Operating voltage display: No.
- Rated operating voltage Ue DC 24 V
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 21.6...26.4 VDC
- Residual ripple max. (% of Ue): 10%
- M8x1 connection, 3-pin
- Short-circuit protection: No.
- Reverse polarity protection: No.
- Option to switch, protected: No.
- Active surface, material: PBT
- Size D6.5
- Mounting length 30.0 mm
- Flush mounting: Flush mounting
- Connection type: Cable with connector, 1.40 m,|PUR
- Cable diameter D 3.10 mm
- Cable length 1.4 m
- Housing material: Stainless steel
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection class IP67
- Ambient temperature 10...60 °C
- Pollution level 3
- Idle current IO max. at Ue 15 mA
- Measurement range 0.5...2 mm
- Cut-off frequency –3 dB: 1000 Hz
- Load resistance RL min.: 5000 ohms
- Gradient U 6.67 V/mm
- Linearity deviation max.: ±45 µm
- Linearity range Sl: 0.5...2 mm
- Temperature drift max. of final value: ±5.0 %
- Repeatability according to BWN: ±10 µm
- Analogue output: Analogue, voltage 0 - 10 V
- Output characteristic: Falling upon approximation
- Output voltage at Se 5 V
- Output voltage at SL max. 10 V
- Output voltage at SL min. 0 V
- Product type
Proximity sensor
- Type
BAW005L
- Content
1 pc(s)
- Min. operating voltage
21.60 V
- Max. operating voltage
26.40 V
- Operating voltage
21.60 - 26.40 V
- Outputs
Voltage (analogue)
- Connector
M8 (3-pin)
- Cable length
1.40 m
IP67
- Min. temperature
10 °C
- Max. temperature
60 °C
- Length
30.50 mm
- Dim
(Ø x L) 6.5 mm x 30.50 mm
- Manufacturer part #
BAW005L
- Nominal voltage
24 V
- (Ø)
6.5 mm
- Enclosure material
Stainless steel
- Installation type
shielded
- Model
Inductive
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416840 BALLUFF Proximity sensor Inductive BAW005L BAW005L shielded Voltage (analogue) (Ø x L) 6.5 mm x 30.50 mm
User & Safety Instructions
User & Safety Instructions 3416840 BALLUFF Proximity sensor Inductive BAW005L BAW005L shielded Voltage (analogue) (Ø x L) 6.5 mm x 30.50 mm
Description
Our inductive distance sensors BAW measure different positions and distances and can also distinguish between different material variants. They operate non-contact, are therefore wear-free and have a long service life.Their teaching function has an adjustable linearity range, WAS enables rapid commissioning during initial installation and ensures low downtimes during sensor replacement.Due to the variety of available designs, inductive distance sensors can be easily integrated into any application. Among the most important areas of application are the monitoring of movements in joining, punching or clamping devices of mechanical engineering or the detection of unbalances and expansion of axes.The inductive distance sensors provide an absolute analog voltage, current or IO-Link signal. Dimensions = Ø 6.5 x 30.5 mm, design = D6.5, installation = flush, range = 0.5...2 mm, analogue output = analogue, voltage 0...10 V, output characteristic = falling upon approach, limit frequency -3 dB = 1000 Hz, repeatability as per BWN = ±10 µm, linearity deviation max. = µm 45 ±, housing material = stainless steel, active surface, Material = PBT, connection = cable with plug connector, M8x1 plug, 3-pin, 1.40 m, PUR, Operating voltage Ub = 21.6...26.4 VDC, ambient temperature = 10...60 °C, protection class = IP67, approval/conformity = CE, UKCA, cULus, WEEE
