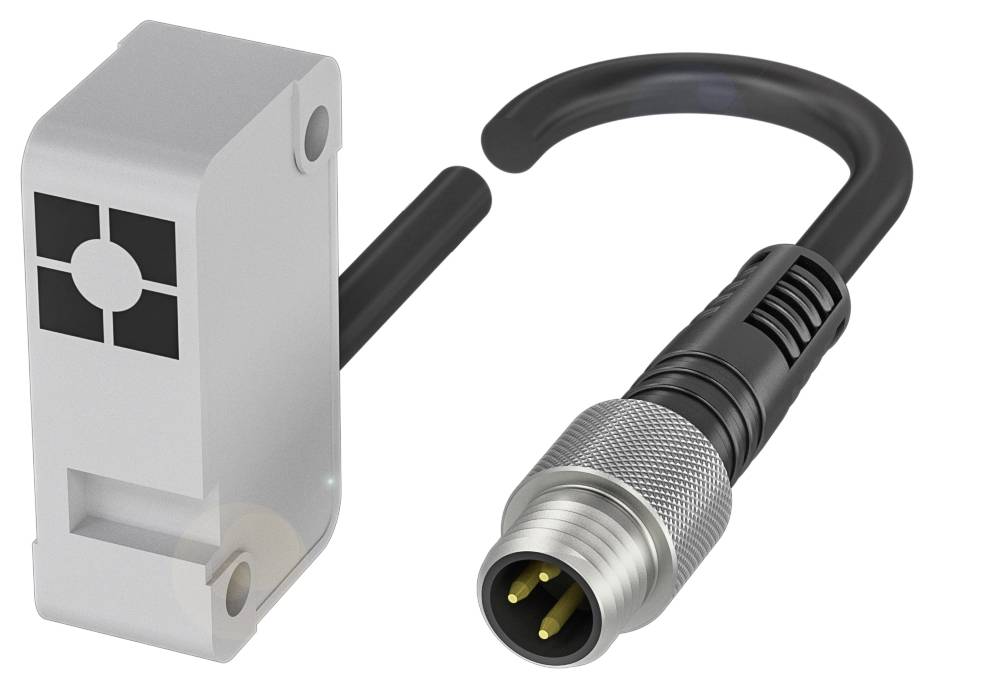

BALLUFF Proximity sensor Inductive BES 517-398-NO-C-S49-00,2 BES01NA shielded PNP NO (Ø x H) 3 m x 16.5 mm Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Proximity sensor
Max. operating voltage
30 V DC
Contact type
1 maker
Switching distance (max.)
2 mm
Datasheet (PDF)
Highlights & Details
Balluff BES01NA Inductive Proximity Switches
- Dimensions 30 x 10.5 x 16.5 mm
- 30x10.5 x 16.5 design type
- Flush mounting
- Range: 2 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimension 30 x 10.5 x 16.5 mm
- Active surface, material: PBT, GF20
- Connection: Cable with plug connector, M8x1 plug, 3-pin, 0.20 m, PUR
- 30x10.5 x 16.5 design type
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material PBT, GF20
- Range: 2 mm
- Switching output: PNP NO
- Switching frequency 2500 Hz
- Protection system: IP65
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions 30 x 10.5 x 16.5 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 50 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 3 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 2500 Hz
- Static voltage drop: 2 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.6 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 2 mm
- Real switching distance Sr:2 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 830 a
- Active surface, material: PBT, GF20
- Size: 30x10.5 x 16.5
- Flush mounting: Flush mounting
- Switching output: PNP NO
- Connection type: Cable with connector, 0.20 m,|PUR
- Cable diameter D 3.70 mm
- Cable length 0.2 m
- Housing material PBT, GF20
- Sheath material: PUR
- EN 60068-2-27, shock: Half sine, 30 gn, 11 ms
- EN 60068-2-6, vibration:55 Hz, amplitude 1 mm, 3x30 min.
- Protection system: IP65
- Ambient temperature: -25 to 70 °C
- Pollution level 3
- Packaging type
Single
- Product type
Proximity sensor
- Type
BES 517-398-NO-C-S49-00,2
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 maker
- Switching distance (max.)
2 mm
- Outputs
PNP NO
- Enclosure material
PBT
GF20
- Model
Inductive
- Material properties
fibreglass-reinforced
- Installation type
shielded
- Connector
M8 (3-pin)
- Cable length
0.20 m
- Min. temperature
-25 °C
- Max. temperature
70 °C
IP65
- Length
30 mm
- Width
10.5 mm
- Height
16.5 mm
- (Ø)
3 m
- Dim
(Ø x H) 3 m x 16.5 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
2500 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416962 BALLUFF Proximity sensor Inductive BES 517-398-NO-C-S49-00,2 BES01NA shielded PNP NO (Ø x H) 3 m x 16.5 mm Single
User & Safety Instructions
User & Safety Instructions 3416962 BALLUFF Proximity sensor Inductive BES 517-398-NO-C-S49-00,2 BES01NA shielded PNP NO (Ø x H) 3 m x 16.5 mm Single
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=30 x 10.5 x 16.5 mm, design=square-shaped, installation=flush, range=2 mm, switching output=PNP NO (NO), Switching frequency=2500 Hz, casing material=PBT, GF20, active surface, material=PBT, GF20, connection=cable with connector, M8x1 plug, 3-pin, 0.20 m, PUR, operating voltage Ub=10...30 VDC, ambient temperature=-25...70 °C, protection class=IP65, approval/conformity=CecULusEACWEEE
