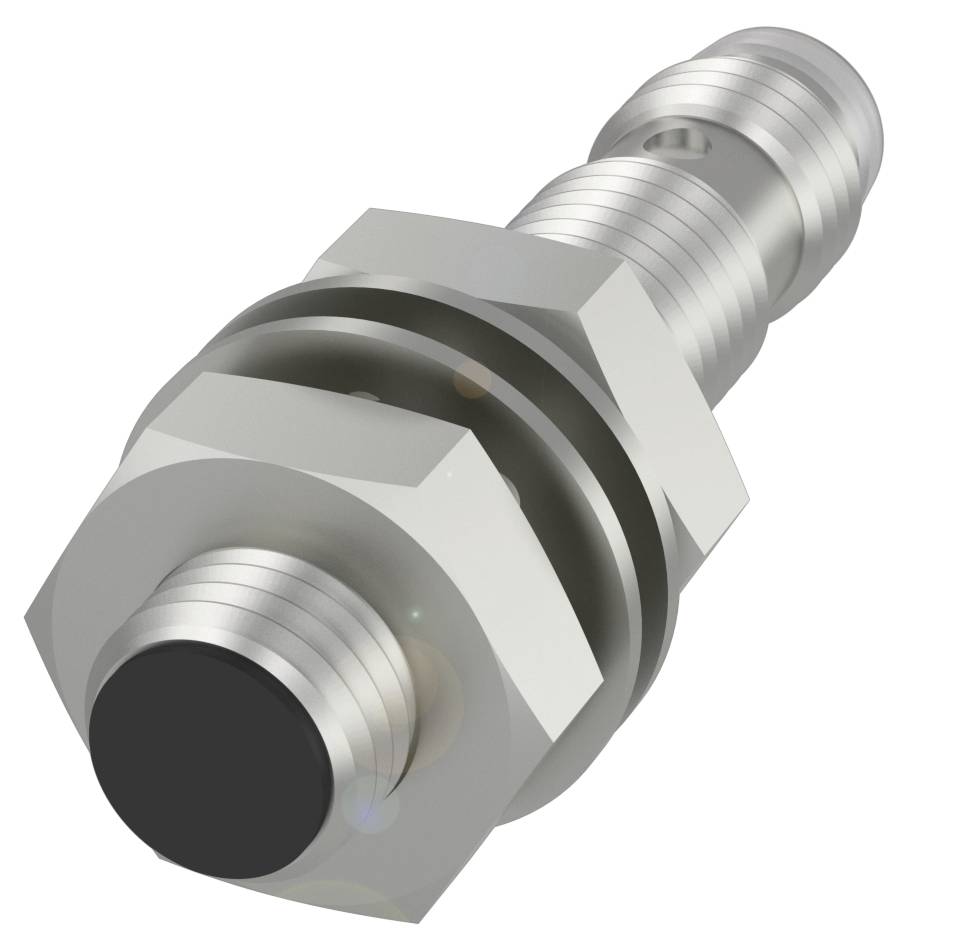

Image similar
BALLUFF Proximity sensor Inductive BES M08EE-POC20B-S49G-003 BES00CF M8 shielded PNP NC (Ø x L) 8 mm x 40 mm
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
30 V DC
Outputs
PNP NC
Switching distance (max.)
2 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
BES00CF Cylindrical design
- Dimensions: Ø 8 x 40 mm
- M8x1 design
- Flush mounting
- Range: 2 mm
- Switching output: PNP NC
Technical specifications
- Main features:Dimensions: Ø 8 x 40 mm
- Active surface, material: PBT
- Connection: Plug connector, M8x1 plug, 3-pin
- M8x1 design
- Operating voltage Ub 10...30 VDC
- Flush mounting
- Housing material: Stainless steel
- Range: 2 mm
- Switching output: PNP NC
- Switching frequency 5000 Hz
- Protection class: IP68
- Ambient temperature -40...85 °C
- Additional features:
- Dimensions: Ø 8 x 40 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 250 V AC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 25 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 2 mA
- Idle current IO max., unattenuated: 7 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 10%
- Switching frequency 5000 Hz
- Protection class: II
- Static voltage drop: 2.5 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.6 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 2 mm
- Real switching distance Sr:2 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 595 a
- Active surface, material: PBT
- Tightening torque 8 Nm
- Size M8x1
- Mounting length 28.00 mm
- Flush mounting: Flush mounting
- Switching output: PNP NC
- Switching distance indicator: ■■
- Housing material: Stainless steel
- Brand: Global
- Product type
Proximity sensor
- Type
BES M08EE-POC20B-S49G-003
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP NC
- Switching distance (max.)
2 mm
- Switching frequency
5000 Hz
- Model
Inductive
- Connector
M8 (3-pin)
- Installation type
shielded
- Size
M8
- Enclosure material
Stainless steel
PBT
- Contact type
1 PNP
IP68
- Min. temperature
-40 °C
- Max. temperature
85 °C
- Length
40 mm
- (Ø)
8 mm
- Dim
(Ø x L) 8 mm x 40 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417098 BALLUFF Proximity sensor Inductive BES M08EE-POC20B-S49G-003 BES00CF M8 shielded PNP NC (Ø x L) 8 mm x 40 mm
User & Safety Instructions
User & Safety Instructions 3417098 BALLUFF Proximity sensor Inductive BES M08EE-POC20B-S49G-003 BES00CF M8 shielded PNP NC (Ø x L) 8 mm x 40 mm
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 8 x 40 mm, design=M8x1, installation=flush, range=2 mm, switching output=PNP NC), Switching frequency=5000 Hz, casing material=stainless steel, active surface, material=PBT, connection=connector, M8x1 plug, 3-pin, operating voltage Ub=10...30 VDC, ambient temperature=-40...85 °C, protection class=IP68, approval/conformity=cULusCEEACWEEE
