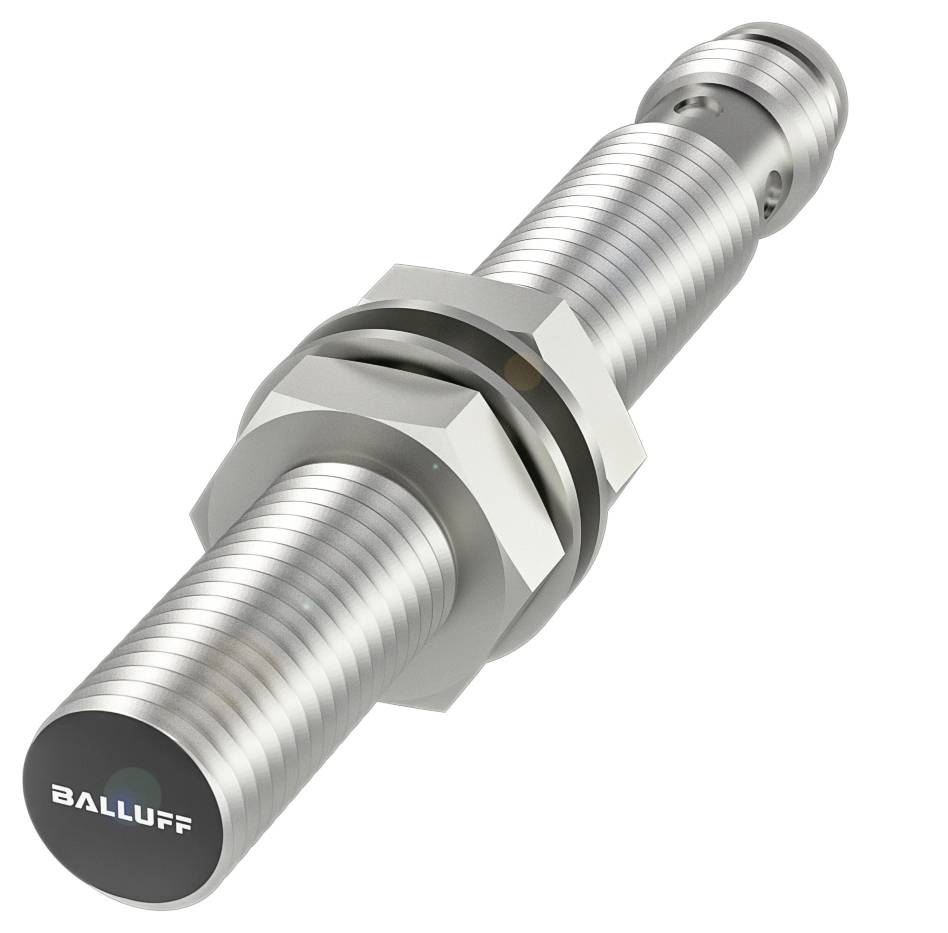

BALLUFF Proximity sensor Inductive BES M08MI-NSC20B-S49G BES002U M8 shielded NPN NO (Ø x H) 8 mm x 59 m
EAN:
Part number:
Item no:
Product type
Proximity sensor
Max. operating voltage
30 V DC
Outputs
NPN NO
Switching distance (max.)
2 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BES002U inductive proximity switch
- Dimensions: Ø 8 x 59 mm
- M8x1 design
- Flush mounting
- Range: 2 mm
- Switching output: NPN no (NO)
Technical specifications
- Main features:Dimensions: Ø 8 x 59 mm
- Active surface, material: PA 12
- Connection: Plug connector, M8x1 plug, 3-pin
- M8x1 design
- Operating voltage Ub 12...30 VDC
- Flush mounting
- Housing material: Nickel-plated brass
- Range: 2 mm
- Switching output: NPN no (NO)
- Switching frequency 700 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Additional features:
- Dimensions: Ø 8 x 59 mm
- Operating voltage display: No.
- Function display: Yes
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 30 ms
- Operating voltage Ub 12...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 5 mA
- Residual current l max. 20 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 700 Hz
- Static voltage drop: 2.5 V
- M8x1 connection, 3-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.6 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 2 mm
- Real switching distance Sr:2 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 880 a
- Active surface, material: PA 12
- Housing material Mechanical characteristics: Brass, nickel-plated
- Tightening torque 3 Nm
- Size M8x1
- Mounting length 50.00 mm
- Flush mounting: Flush mounting
- Switching output: NPN no (NO)
- Switching distance indicator: ■■
- Brand: Global
- Product type
Proximity sensor
- Type
BES M08MI-NSC20B-S49G
- Min. operating voltage
12 V DC
- Max. operating voltage
30 V DC
- Operating voltage
12 - 30 V DC
- Outputs
NPN NO
- Switching distance (max.)
2 mm
- Switching frequency
700 Hz
- Model
Inductive
- Connector
M8 (3-pin)
- Installation type
shielded
- Size
M8
- Material properties
nickel plated
- Enclosure material
Brass (Ni-plated)
PA12
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
59 mm
- Height
59 m
- (Ø)
8 mm
- Dim
(Ø x H) 8 mm x 59 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416664 BALLUFF Proximity sensor Inductive BES M08MI-NSC20B-S49G BES002U M8 shielded NPN NO (Ø x H) 8 mm x 59 m
User & Safety Instructions
User & Safety Instructions 3416664 BALLUFF Proximity sensor Inductive BES M08MI-NSC20B-S49G BES002U M8 shielded NPN NO (Ø x H) 8 mm x 59 m
Description
Our standard inductive sensors are Ideal for object detection in the metal field. They are short circuit proof and operate without contact, i.e. they are wear-free and are resistant to contamination. The sensors are available in designs from Ø 3 mm to 80 × 80 mm square size. Particularly economical solutions enable you to use the robust and reliable inductive global sensors. We can also deliver the wide range of these over 500 preferred versions in high quantities worldwide at short notice. Dimensions=Ø 8 x 59 mm, design=M8X1, installed=flush, range=2 mm, switched output=NPN NO contact (NO), Switching frequency=700 Hz, casing material=brass, surface protection=nickel, active surface, material=PA 12, connection = plug connector, M8x1 plug, 3-pin, operating voltage Ub=12...30 VDC, ambient temperature=-25...70 °C, Protection class=IP67, Approval/conformity=CecULusEACWEEE
