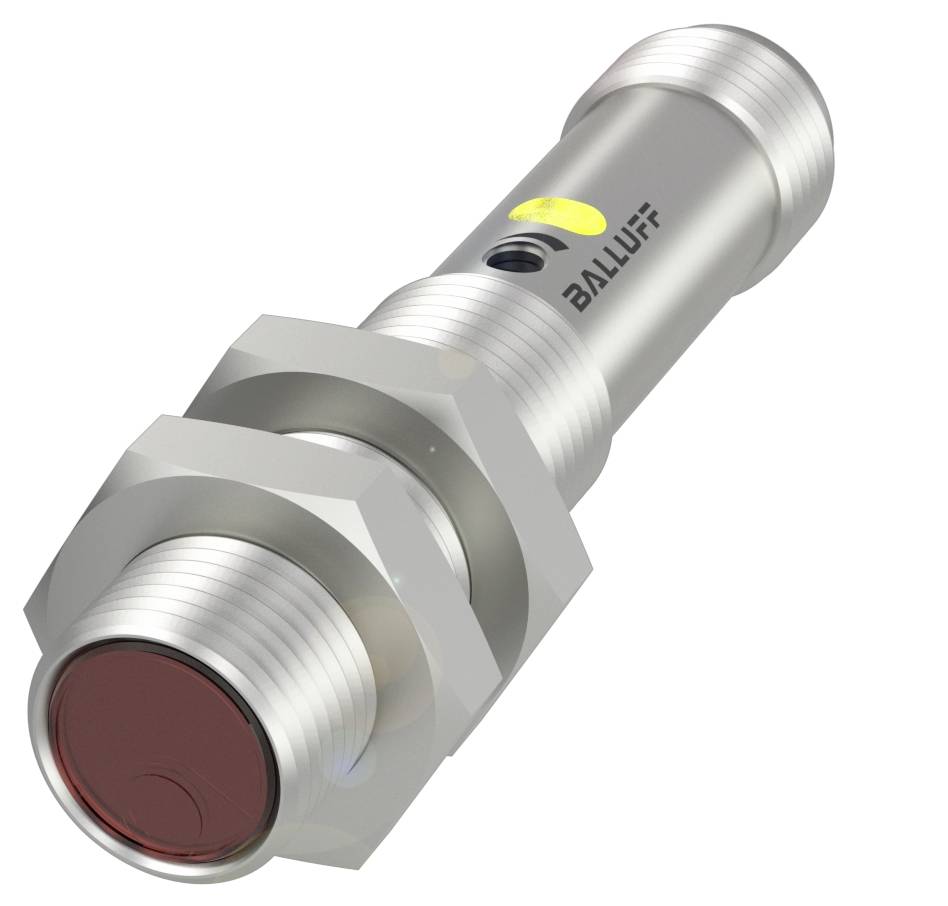

BALLUFF Retroreflective light barrier BOS 12M-PS-PR10-S4 BOS01TT 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Connector
M12 (4-pin)
Type
BOS 12M-PS-PR10-S4
Operating voltage
24 V DC
Contact type
1 maker
Datasheet (PDF)
Highlights & Details
Balluff BOS01TT Cylindrical Reflection Light Barriers with M12 thread and different types of light
- Dimensions: Ø 12 x 60 mm
- Series 12M
- PNP NO interface
- Functional principle: Optoelectronic sensor
- Optical operating principle: Reflection light barrier
Technical specifications
- Main features:Dimensions: Ø 12 x 60 mm
- Active surface, material: PMMA
- Connection: Connector, M12x1 connector, 4-pin
- Series 12M
- Operating voltage Ub 10...30 VDC
- Functional principle: Optoelectronic sensor
- Optical operating principle: Reflection light barrier
- Housing material: Nickel-plated brass
- LED red light
- Light spot size: Ø 160 mm at 3 m.
- Brand: Global
- Range 0 - 3 m
- PNP NO interface
- Beam characteristics: Varied
- Additional features:
- Functional principle: Optoelectronic sensor
- Dimensions: Ø 12 x 60 mm
- Attachment: Nut M12x1
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 100 mA
- Rated insulation voltage UI 75 V DC
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Load capacity max. at Ue 0.2 µF
- Residual ripple max. (% of Ue): 15%
- Switching frequency 1000 Hz
- Connection: Connector, M12x1 connector, 4-|pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Rated switching distance Sn: 3 m, adjustable
- Temperature drift max. (% of Sr): 10%
- MTTF (40 °C) 1432 a
- Active surface, material: PMMA
- Housing material: Nickel-plated brass
- Range 0 - 3 m
- Tightening torque max.: 7 Nm|15 Nm
- Adjustable interval (Sn)
- Contacts, surface protection: Gold-plated
- Surface protection: Nickel-plated
- Brand: Global
- Series 12M
- Shape: Cylinder|straight lens
- Display: LED green: Operating voltage|Boundary range - LED yellow, flashes|LED yellow: Light reception
- Potentiometer 270°
- Shutdown delay toff max.: 0.5 ms
- ON delay max.: 0.5 ms
- Idle current IO max. at Ue 20 mA
- Voltage drop Ud max. at Ie 1.5 V
- External light max. 10000 Lux
- Optical operating principle: Reflection light barrier
- LED red light
- Light spot size: Ø 160 mm at 3 m.
- Polarisation filter: Yes
- Optical switching function: Dark switching
- Beam characteristics: Varied
- Wavelength 644 nm
- LED group according to IEC 62471: Free group
- Product type
Retroreflective light barrier
- Type
BOS 12M-PS-PR10-S4
- Operating voltage
24 V DC
- Contact type
1 maker
- Switching frequency
1000 Hz
- Connector
M12 (4-pin)
- Size
M12
- Enclosure material
Brass (Ni-plated)
- Material properties
nickel plated
- Transmitter type
LED red
- Wavelength
644 nm
3 m
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416525 BALLUFF Retroreflective light barrier BOS 12M-PS-PR10-S4 BOS01TT 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3416525 BALLUFF Retroreflective light barrier BOS 12M-PS-PR10-S4 BOS01TT 1 pc(s)
Description
Thanks to generous assembly tolerances, our reflection light barrier is particularly easy to align. You only install an electric device plus a reflector. Large reflectors guarantee high ranges. The light barriers detect objects regardless of surface, color and material. A polar filter makes them suitable for detecting shiny objects. Optoelectronic sensor, light transmitter = LED, connector type = connector, switching output = PNP NO pin 4, range max. = 3 m
This text is machine translated.
This text is machine translated.
Hints
For more information on this BOS01TT, please refer to its datasheet under 'downloadable documents'
