Name: BALLUFF Retroreflective light barrier BOS 18E-PA-PR20-S4 BOS01KL Retroreflective 1 pc(s)
Brand: BALLUFF
SKU: 3416801

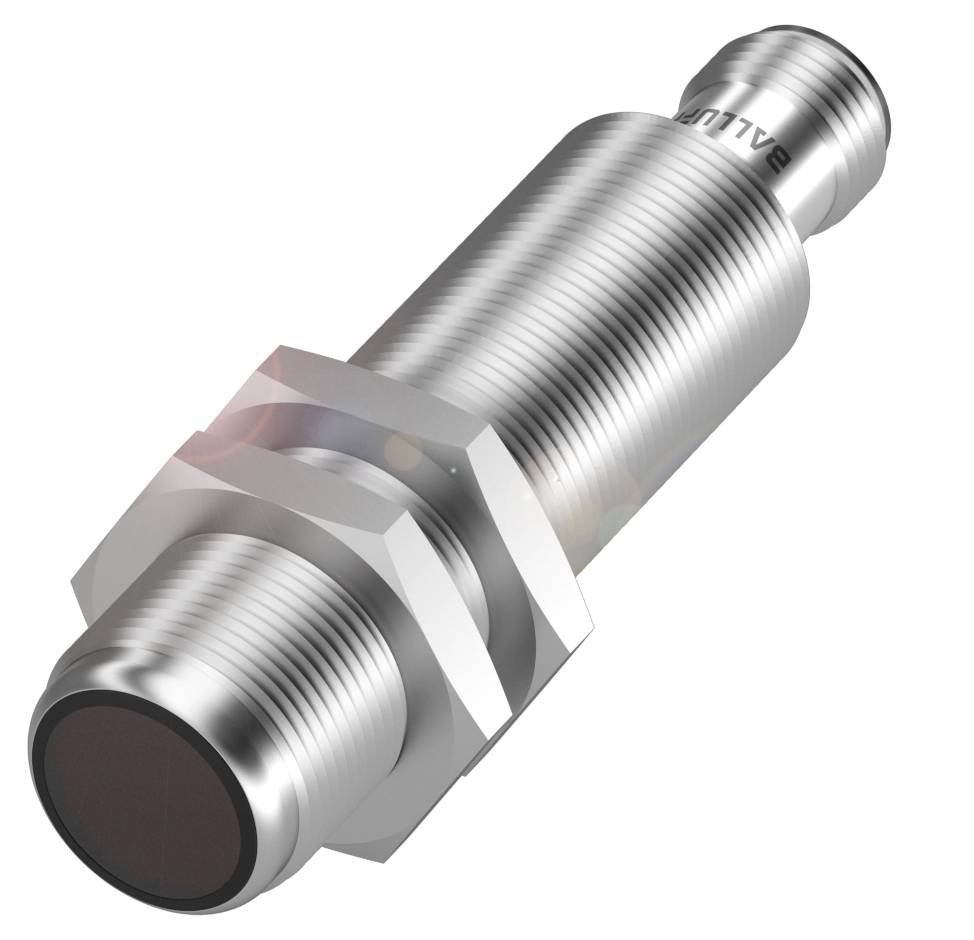

A cylindrical proximity sensor made of metal with a threaded body and smooth cap, used in industrial applications for object detection.

Image similar

Packaging type

Piece

Product type

Retroreflective light barrier

Functions

Retroreflective

Connector

M12 (4-pin)

Type

BOS 18E-PA-PR20-S4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS01KL Cylindrical Reflection Light Sensors with M18 thread and different types of light

Dimensions: Ø 18 x 75 mm
Series 18E
PNP NO interface
PNP NC
Functional principle: Optoelectronic sensor
Special features: Washdown

Technical specifications

Main features:Dimensions: Ø 18 x 75 mm
Active surface, material: Glass
Connection: Connector, M12x1 connector, 4-pin
Series 18E
Special features: Washdown
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier
Housing material: Stainless steel (1.4404)
LED red light
Light spot size: Ø 300 mm at 7 m.
Range: 5 m
PNP NO interface
PNP NC
Beam characteristics: Varied
Additional features:
Functional principle: Optoelectronic sensor
Dimensions: Ø 18 x 75 mm
Attachment: Nut M18x1
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.1 µF
Residual ripple max. (% of Ue): 15%
Switching frequency 400 Hz
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Rated switching distance Sn: 5 m.
Temperature drift max. (% of Sr): 10%
MTTF (40 °C) 538 a
Active surface, material: Glass
Switching output: PNP NO (PNP)|PNP NC (Pins 4-2
Housing material: Stainless steel (1.4404)
EN 60068-2-27, shock: Half-sine, 30 gn, 11 ms, 3x6|half-sine, 100 gn, 2 ms, 3x8000
EN 60068-2-6, Vibration: 10…55 Hz, Amplitude: 1 mm, 3x30|min|10…2000 Hz, Amplitude: 1 mm, 30|gn, 3x5 hrs
Protection class IP68/IP67
Ambient temperature: -25 to 70 °C
Pollution level 3
Range: 5 m
Tightening torque max. 40 Nm
Contacts, surface protection: Gold-plated
Series 18E
Shape: Cylinder|straight lens
Shutdown delay toff max.: 1.25 ms
ON delay max.: 1.25 ms
Idle current IO max. at Ue 30 mA
Voltage drop Ud max. at Ie 2.5 V
External light max. 10000 Lux
Optical operating principle: Reflection light barrier
LED red light
Light spot size: Ø 300 mm at 7 m.
Polarisation filter: Yes
Optical switch function: Dark / light switching
Beam characteristics: Varied
Wavelength 640 nm
LED group according to IEC 62471: Free group
Protection class according to DIN 40050: IPx9K
Adjuster Electrical characteristics: No.

Packaging type: Piece

Product type: Retroreflective light barrier

Type: BOS 18E-PA-PR20-S4

Functions: Retroreflective

Operating voltage: 24 V DC

Contact type: 1 breaker
1 maker

Switching frequency: 400 Hz

Connector: M12 (4-pin)

Size: M18

Enclosure material: Stainless steel

Material properties: rust-proof

Transmitter type: LED red

Wavelength: 640 nm

: 5 m

: IP68
IP67

(Ø): 18 mm

Dim: (Ø) 18 mm

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416801 BALLUFF Retroreflective light barrier BOS 18E-PA-PR20-S4 BOS01KL Retroreflective 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416801 BALLUFF Retroreflective light barrier BOS 18E-PA-PR20-S4 BOS01KL Retroreflective 1 pc(s)

Description

Thanks to generous assembly tolerances, our reflection light barrier is particularly easy to align. You only install an electric device plus a reflector. Large reflectors guarantee high ranges. The light barriers detect objects regardless of surface, color and material. A polar filter makes them suitable for detecting shiny objects. Series=18E, dimension=Ø 18 x 75 mm, interface=PNP NO (PNP) PNP NC, operational principle=Optoelectronic sensor, operational principle optical=reflective light barrier, beam characteristic=diverse, light type=LED red light, Light spot size=Ø 300 mm at 7 m, range=5 m, connector=connector, M12x1 connector, 4-pole, Housing material=stainless steel (1.4404), active surface, material=glass, operating voltage Ub=10...30 VDC, approval/conformity=CecULusEcolabFDA conforming EACWEEE
