Name: BALLUFF Retroreflective light barrier BOS 18M-PO-PR20-S4 BOS01CZ 1 pc(s)
Brand: BALLUFF
SKU: 3417627

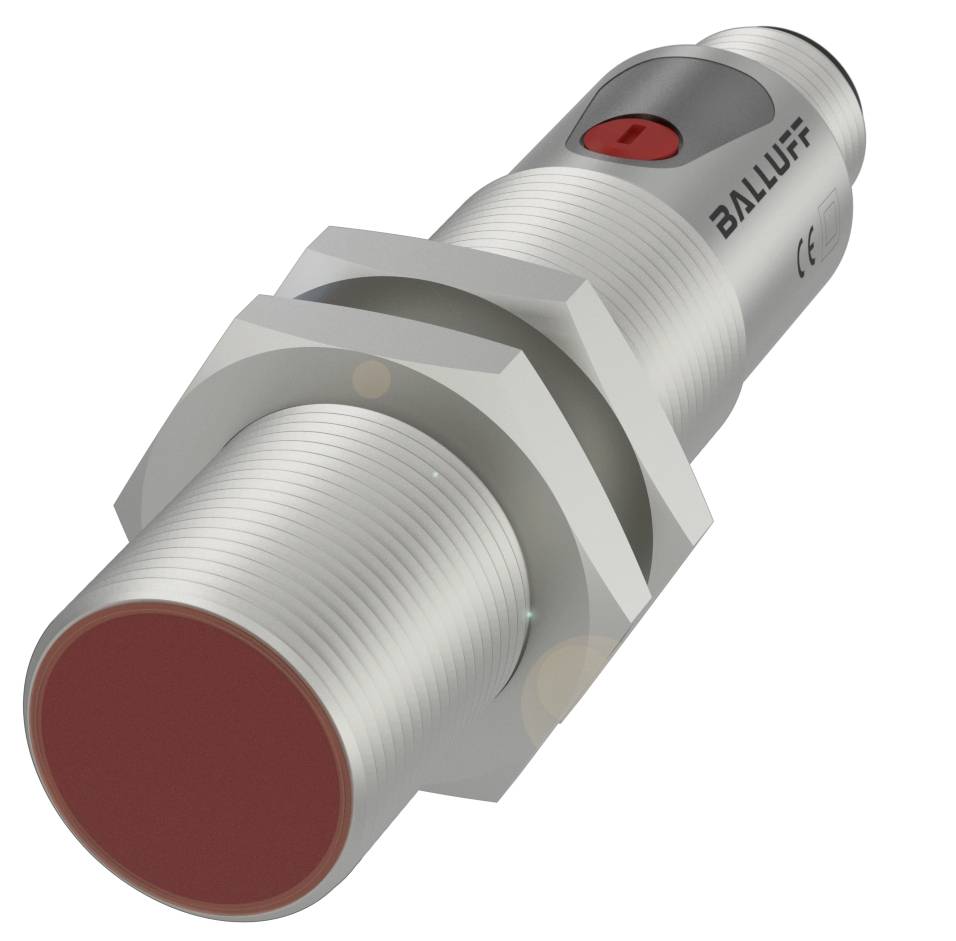

Inductive proximity sensor in cylindrical housing, red-marked detection field, manufacturer name 'Balluff'.

Image similar

Packaging type

Piece

Product type

Retroreflective light barrier

Max. operating voltage

30 V DC

Connector

M12 (4-pin)

Type

BOS 18M-PO-PR20-S4

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS01CZ Cylindrical Reflection Light Barriers with M18 thread and different types of light

Dimensions: Ø 18 x 75 mm
18M series
PNP NC interface
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier

Technical specifications

Main features:Dimensions: Ø 18 x 75 mm
Active surface, material: Glass, non-reflecting
Connection: Connector, M12x1 connector, 4-pin
18M series
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier
Housing material: Nickel-plated brass
LED red light
Light spot size: Ø 300 mm at 7 m.
Supplied with nut M18x1 (2x)
Operating instructions
Range 0 - 7 m
PNP NC interface
Beam characteristics: Varied
Additional features:
Dimensions: Ø 18 x 75 mm
Attachment: Nut M18x1
MTTF (40 °C) 1046 a
Active surface, material: Glass, non-reflecting
Housing material: Nickel-plated brass
Housing material, surface protection: Nickel-plated
Tightening torque max.: 15 Nm|30 Nm
Surface protection: Nickel-plated
18M series
Shutdown delay toff max.: 0.63 ms

Packaging type: Piece

Product type: Retroreflective light barrier

Type: BOS 18M-PO-PR20-S4

Min. operating voltage: 10 V DC

Max. operating voltage: 30 V DC

Operating voltage: 10 - 30 V DC

Contact type: 1 breaker

Connector: M12 (4-pin)

Size: M18

Enclosure material: Brass (Ni-plated)

Material properties: nickel plated

Transmitter type: LED red

: 7 m

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3417627 BALLUFF Retroreflective light barrier BOS 18M-PO-PR20-S4 BOS01CZ 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3417627 BALLUFF Retroreflective light barrier BOS 18M-PO-PR20-S4 BOS01CZ 1 pc(s)

Description

Thanks to generous assembly tolerances, our reflection light barrier is particularly easy to align. You only install an electric device plus a reflector. Large reflectors guarantee high ranges. The light barriers detect objects regardless of surface, color and material. A polar filter makes them suitable for detecting shiny objects. Optoelectronic sensor, light transmitter = LED, connector type = connector, switching output = PNP NC) pin 2, range max. = 7 m

This text is machine translated.
