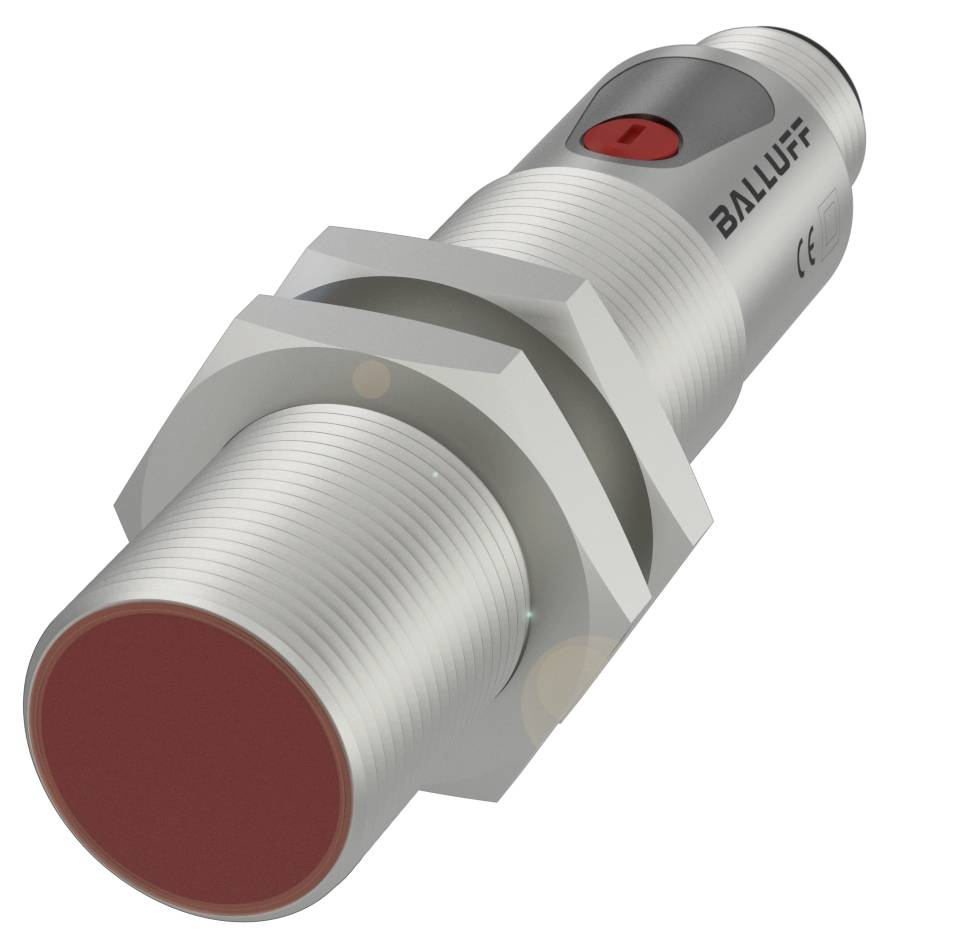

BALLUFF Retroreflective light barrier BOS 18M-PS-PR20-S4 BOS01C3 1 pc(s)
EAN:
Part number:
Item no:
Product type
Retroreflective light barrier
Max. operating voltage
30 V DC
Connector
M12 (4-pin)
Type
BOS 18M-PS-PR20-S4
Min. operating voltage
10 V DC
Datasheet (PDF)
Highlights & Details
Balluff BOS01C3 Cylindrical Reflection Light Barriers with M18 thread and different types of light
- Dimensions: Ø 18 x 75 mm
- 18M series
- PNP NO interface
- Functional principle: Optoelectronic sensor
- Optical operating principle: Reflection light barrier
Technical specifications
- Main features:Dimensions: Ø 18 x 75 mm
- Active surface, material: Glass, non-reflecting
- Connection: Connector, M12x1 connector, 4-pin
- 18M series
- Operating voltage Ub 10...30 VDC
- Functional principle: Optoelectronic sensor
- Optical operating principle: Reflection light barrier
- Housing material: Nickel-plated brass
- LED red light
- Light spot size: Ø 300 mm at 7 m.
- Supplied with nut M18x1 (2x)
- Operating instructions
- Range 0 - 7 m
- PNP NO interface
- Beam characteristics: Varied
- Additional features:
- Dimensions: Ø 18 x 75 mm
- Attachment: Nut M18x1
- MTTF (40 °C) 1046 a
- Active surface, material: Glass, non-reflecting
- Housing material: Nickel-plated brass
- Housing material, surface protection: Nickel-plated
- Tightening torque max.: 15 Nm|30 Nm
- Surface protection: Nickel-plated
- 18M series
- Shutdown delay toff max.: 0.63 ms
- Product type
Retroreflective light barrier
- Type
BOS 18M-PS-PR20-S4
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 maker
- Connector
M12 (4-pin)
- Size
M18
- Enclosure material
Brass (Ni-plated)
- Material properties
nickel plated
- Transmitter type
LED red
7 m
- Height
75 m
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417548 BALLUFF Retroreflective light barrier BOS 18M-PS-PR20-S4 BOS01C3 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3417548 BALLUFF Retroreflective light barrier BOS 18M-PS-PR20-S4 BOS01C3 1 pc(s)
Description
Thanks to generous assembly tolerances, our reflection light barrier is particularly easy to align. You only install an electric device plus a reflector. Large reflectors guarantee high ranges. The light barriers detect objects regardless of surface, color and material. A polar filter makes them suitable for detecting shiny objects. Optoelectronic sensor, light transmitter = LED, connector type = connector, switching output = PNP NO pin 4, range max. = 7 m
This text is machine translated.
This text is machine translated.
Hints
For more information on this BOS01C3, please refer to its datasheet under 'downloadable documents'
