Name: BALLUFF Retroreflective light barrier BOS 18M-PUV-PR30-S4 BOS01J9 Polarised retroreflective 1 pc(s)
Brand: BALLUFF
SKU: 3416638

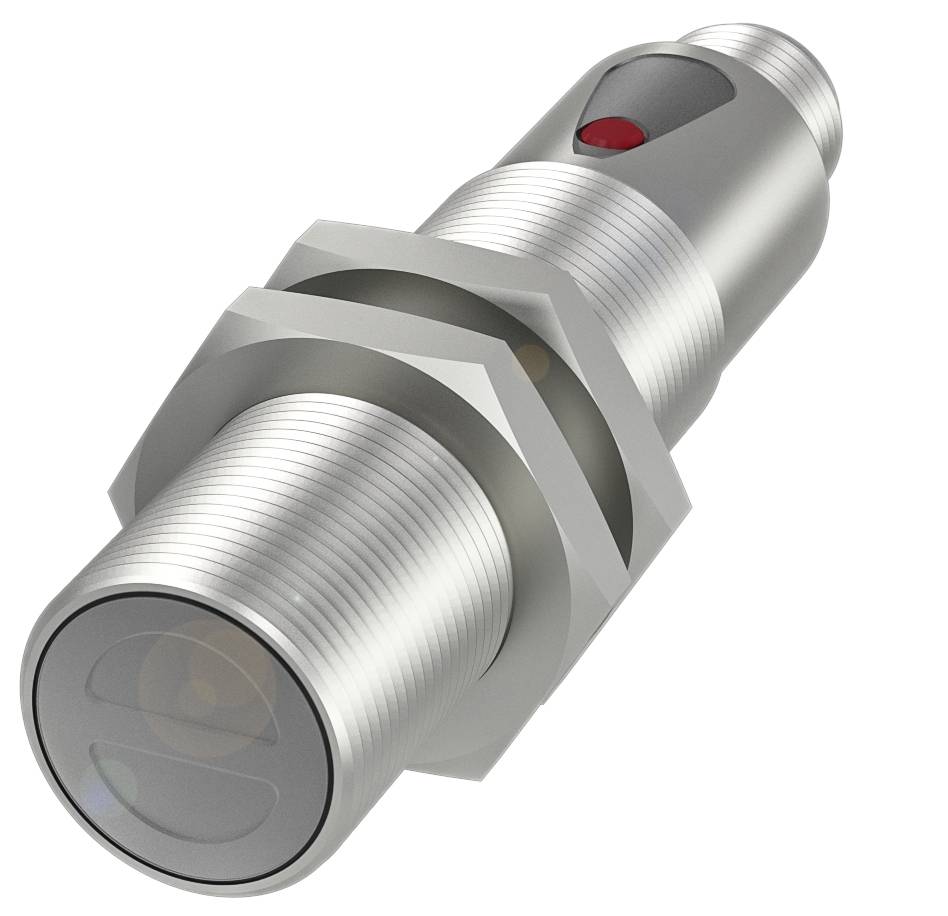

Metal sensor in cylindrical form with ribbed surface and red-glowing indicator on the top; used in industry.

Image similar

Product type

Retroreflective light barrier

Functions

Polarised retroreflective

Connector

M12 (4-pin)

Type

BOS 18M-PUV-PR30-S4

Operating voltage

24 V DC

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS01J9 Cylindrical Reflection Light Barriers with M18 thread and different types of light

Dimensions: Ø 18 x 75 mm
18M series
PNP NO/NC interface
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier

Technical specifications

Main features:Dimensions: Ø 18 x 75 mm
Active surface, material: Glass
Connection: Connector, M12x1 connector, 4-pin
18M series
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier
Housing material: Nickel-plated brass
LED red light
Range 0 - 5 m
PNP NO/NC interface
Beam characteristics: Varied
Additional features:
Functional principle: Optoelectronic sensor
Dimensions: Ø 18 x 75 mm
Attachment: Nut M18x1
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.1 µF
Residual ripple max. (% of Ue): 15%
Switching frequency 1000 Hz
Protection class: II
Connection: Connector, M12x1 connector, 4-|pin
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Rated switching distance Sn: 5 m, adjustable
Temperature drift max. (% of Sr): 10%
MTTF (40 °C) 400 a
Active surface, material: Glass
Housing material: Nickel-plated brass
Range 0 - 5 m
Tightening torque max.: 15 Nm|30 Nm
Adjustable interval (Sn)
Contacts, surface protection: Gold-plated
Surface protection: Nickel-plated
18M series
Shape: Cylinder|straight lens
Display: LED green: Operating voltage|Boundary range - LED yellow, flashes|Short circuit - LED green, flashes|LED yellow: Light reception
Adjuster: Button
Shutdown delay toff max.: 0.5 ms
ON delay max.: 0.5 ms
Idle current IO max. at Ue 40 mA
Voltage drop Ud max. at Ie 2.5 V

Product type: Retroreflective light barrier

Type: BOS 18M-PUV-PR30-S4

Functions: Polarised retroreflective

Operating voltage: 24 V DC

Contact type: 1 breaker
1 maker

Switching frequency: 1000 Hz

Connector: M12 (4-pin)

Size: M18

Enclosure material: Brass (Ni-plated)

Material properties: nickel plated

Transmitter type: LED red

: 5 m

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416638 BALLUFF Retroreflective light barrier BOS 18M-PUV-PR30-S4 BOS01J9 Polarised retroreflective 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416638 BALLUFF Retroreflective light barrier BOS 18M-PUV-PR30-S4 BOS01J9 Polarised retroreflective 1 pc(s)

Description

Thanks to generous assembly tolerances, our reflection light barrier is particularly easy to align. You only install an electric device plus a reflector. Large reflectors guarantee high ranges. The light barriers detect objects regardless of surface, color and material. A polar filter makes them suitable for detecting shiny objects. Series=18M, dimension=Ø 18 x 75 mm, interface=PNP NO/NC contact (NO/NC), operating principle=Optoelectronic sensor, operational principle optical=reflective light barrier, beam characteristic=diverse, light type=LED red light, range=0...5 m, connection=plug connector, M12x1 plug, 4-pin, Housing material=brass, active surface, material=glass, operating voltage Ub=10...30 VDC, approval/conformity=cULusCEEACWEEE

This text is machine translated.
