Name: BALLUFF Retroreflective light barrier BOS Q08M-PO-PR20-00,2-S49 BOS01TC 1 pc(s)
Brand: BALLUFF
SKU: 3416797

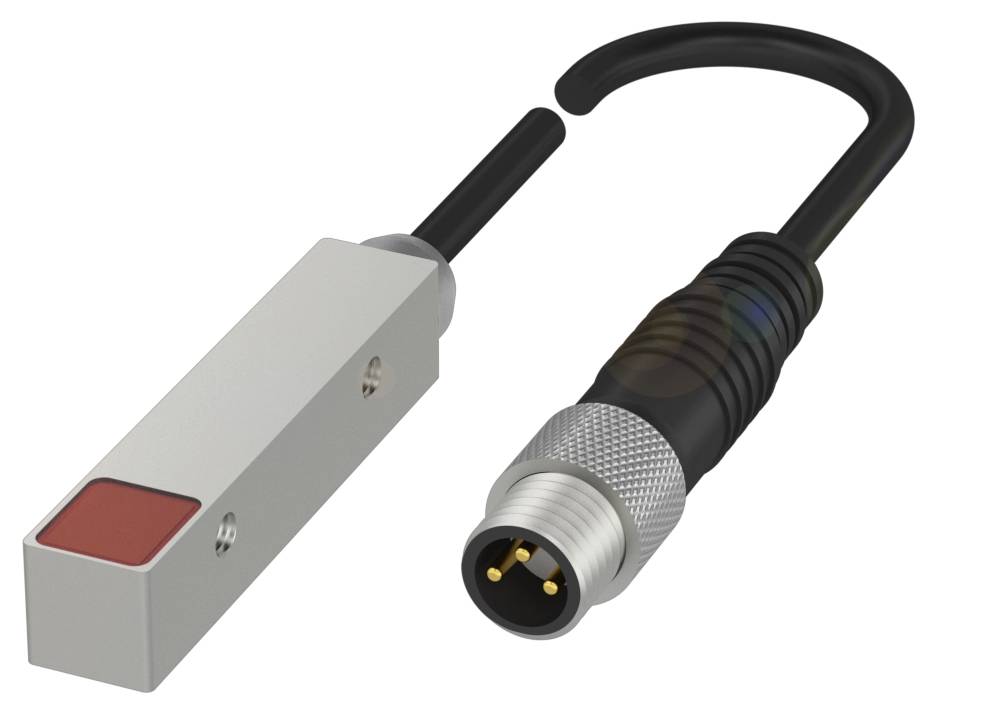

A rectangular sensor with a red button is connected by a cable to a round connector. The connector has three golden pins.

Image similar

Product type

Retroreflective light barrier

Connector

Plug

Type

BOS Q08M-PO-PR20-00,2-S49

Operating voltage

24 V DC

Contact type

1 breaker

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Balluff BOS01TC Square reflective light barriers with different light types

Dimensions 8 x 44 x 8 mm
Q08M series
PNP NC interface
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier

Technical specifications

Main features:Dimension 8 x 44 x 8 mm
Active surface, material: PMMA
Connection: Cable with connector, 0.20 m, PUR
Q08M series
Operating voltage Ub 10...30 VDC
Functional principle: Optoelectronic sensor
Optical operating principle: Reflection light barrier
Housing material: Zinc, die-cast, nickel-plated
LED red light
Light spot size: Ø 3.0 mm light emission
Range 0 - 1 m
PNP NC interface
Beam characteristics: Varied
Additional features:
Functional principle: Optoelectronic sensor
Dimensions 8 x 44 x 8 mm
Mounting: M3 screw
Rated operating voltage Ue DC 24 V
Rated operating current Ie 100 mA
Rated insulation voltage UI 75 V DC
Standby delay TV max.: 20 ms
Operating voltage Ub 10...30 VDC
Usage category: DC-13
Load capacity max. at Ue 0.5 µF
Residual ripple max. (% of Ue): 10%
Switching frequency 500 Hz
Connection: Cable with connector, 0.20 m,|PUR
Short-circuit protection: Yes
Reverse polarity protection: Yes
Exchange possibility protected: Yes
Rated switching distance Sn: 1 m.
MTTF (40 °C) 972.7 a
Active surface, material: PMMA
Switching output: PNP NC
Cable diameter D 3.00 mm
Cable length 0.2 m
Housing material: Zinc, die-cast, nickel-plated
Sheath material: PUR
EN 60068-2-27, shock: Half sine, 100 gn, 2 ms, 3x8000|half sine, 30 gn, 11 ms, 3x6
EN 60068-2-6, vibration: 10…2000 Hz, amplitude 1 mm, 30|gn, 3x5 h|10…55 Hz, Amplitude: 1 mm, 3x30|min.
Protection class IP67
Ambient temperature -5...55 °C
Range 0 - 1 m
Contacts, surface protection: Gold-plated
Surface protection: Nickel-plated
Q08M series
Shape: Cube|connection 90°
Display: Limit range - LED yellow, flashes
Shutdown delay toff max.: 1 ms
ON delay max.: 1 ms
Idle current IO max. at Ue 15 mA
Voltage drop Ud max. at Ie 0.7 V
Optical operating principle: Reflection light barrier
LED red light
Light spot size: Ø 3.0 mm light emission
Polarisation filter: Yes
Optical switching function: Light switching
Beam characteristics: Varied
Wavelength 645 nm
LED group according to IEC 62471: Free group
Reference reflector BOS R-2

Product type: Retroreflective light barrier

Type: BOS Q08M-PO-PR20-00,2-S49

Operating voltage: 24 V DC

Contact type: 1 breaker

Switching frequency: 500 Hz

Connector: Plug

Cable length: 0.2 m

Enclosure material: Zinc (die-cast, Ni-plated)

Wavelength: 645 nm

: 1 m

: IP67

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3416797 BALLUFF Retroreflective light barrier BOS Q08M-PO-PR20-00,2-S49 BOS01TC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3416797 BALLUFF Retroreflective light barrier BOS Q08M-PO-PR20-00,2-S49 BOS01TC 1 pc(s)

Description

Thanks to generous assembly tolerances, our reflection light barrier is particularly easy to align. You only install an electric device plus a reflector. Large reflectors guarantee high ranges. The light barriers detect objects regardless of surface, color and material. A polar filter makes them suitable for detecting shiny objects. Optoelectronic sensor, light transmitter = LED, connector type = cable with connector, switching output = PNP NC, range max. = 1 m

This text is machine translated.
