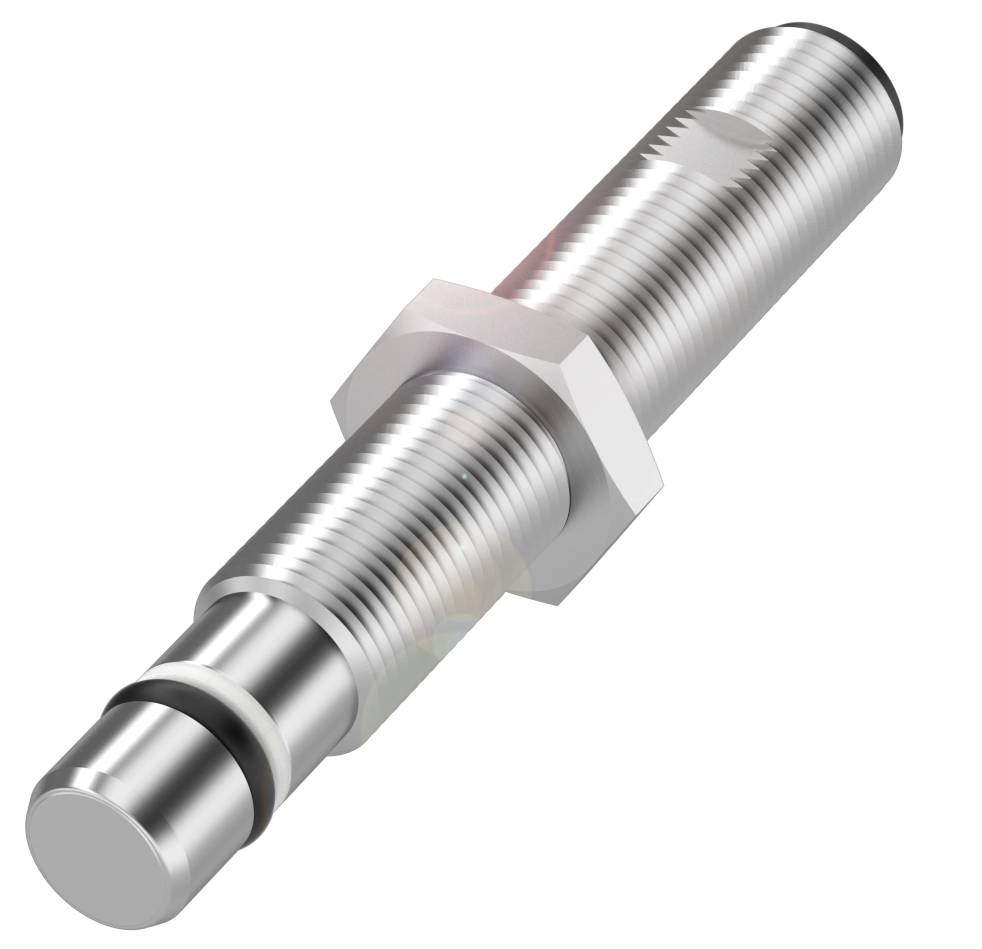

BALLUFF Sensor Inductive BES 516-300-S135-NEX-S4-D BHS001K M12 shielded PNP NO (Ø x H) 12 mm x 78 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Sensor
Max. operating voltage
30 V DC
Outputs
PNP NO
Switching distance (max.)
1.5 mm
Datasheet (PDF)
Highlights & Details
Balluff BHS001K Inductive Sensors for Hazardous Areas
- Dimensions: Ø 12 x 78 mm
- Design M12x1
- Flush mounting
- Range: 1.5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 12 x 78 mm
- Active surface, material: EP
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 500 bar
- Flush mounting
- Ex category: ATEX: 3G (EPL GC)
- Housing material: Stainless steel
- Range: 1.5 mm
- Switching output: PNP NO
- Switching frequency 1000 Hz
- Protection class: IP68
- Ambient temperature: -25 to 80 °C
- Additional features:
- Operating voltage display: No.
- Function display: No.
- Output resistance Ra: 33.0 kOhm + D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 10 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.5 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 1 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 1000 Hz
- Static voltage drop: 1.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- Active surface, material: EP
- Housing material: Stainless steel
- MTTF (40 °C) Material 720 a
- Support ring material PTFE
- Ex marking: ATEX: II 3G Ex ec IIC T4 GC -25°C|≤ Ta ≤ 80°C|IECEx: Ex ec IIC T4 GC|ATEX: II 3G Ex ec IIC T4 GC -25°C| ≤ Ta≤ 80°C|IECEx: Ex ec IIC T4 GC
- Packaging type
Piece
- Product type
Sensor
- Type
BES 516-300-S135-NEX-S4-D
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP NO
- Switching distance (max.)
1.5 mm
- Switching frequency
1000 Hz
- Model
Inductive
- Connector
M12 (4-pin)
- Installation type
shielded
- Size
M12
- Material properties
rust-proof
- Enclosure material
Stainless steel
EP
- Contact type
1 maker
IP68
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
78 mm
- Height
78 m
- (Ø)
12 mm
- Dim
(Ø x H) 12 mm x 78 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416904 BALLUFF Sensor Inductive BES 516-300-S135-NEX-S4-D BHS001K M12 shielded PNP NO (Ø x H) 12 mm x 78 m Piece
User & Safety Instructions
User & Safety Instructions 3416904 BALLUFF Sensor Inductive BES 516-300-S135-NEX-S4-D BHS001K M12 shielded PNP NO (Ø x H) 12 mm x 78 m Piece
Description
Balluff offers you a wide range of wear-free inductive sensors, which can be used to cover all Ex zones.You get solutions for different applications: for areas where an explosive atmosphere is rare (category 3G/3D) and for areas (zone 0/20) where there is a high risk of explosion.Our comprehensive portfolio includes both high-pressure sensors up to 500 bar and sensors with an extended temperature range and in different designs. With suitable accessories, such as NAMUR isolating amplifiers or connecting cables, you will have a wide range of solutions for your individual requirements. Dimensions=Ø 12 x 78 mm, design=M12x1, installation=flush, range=1.5 mm, switching output=PNP NO (NO), Switching frequency=1000 Hz, casing material=stainless steel, active surface, material=EP, connection=connector, M12x1 plug, 4-pin, operating voltage Ub=10...30 VDC, ambient temperature=-25...80 °C, compressive strength max.=500 bar, Protection class=IP68, approval/conformity=CEEACATEXWEEE
