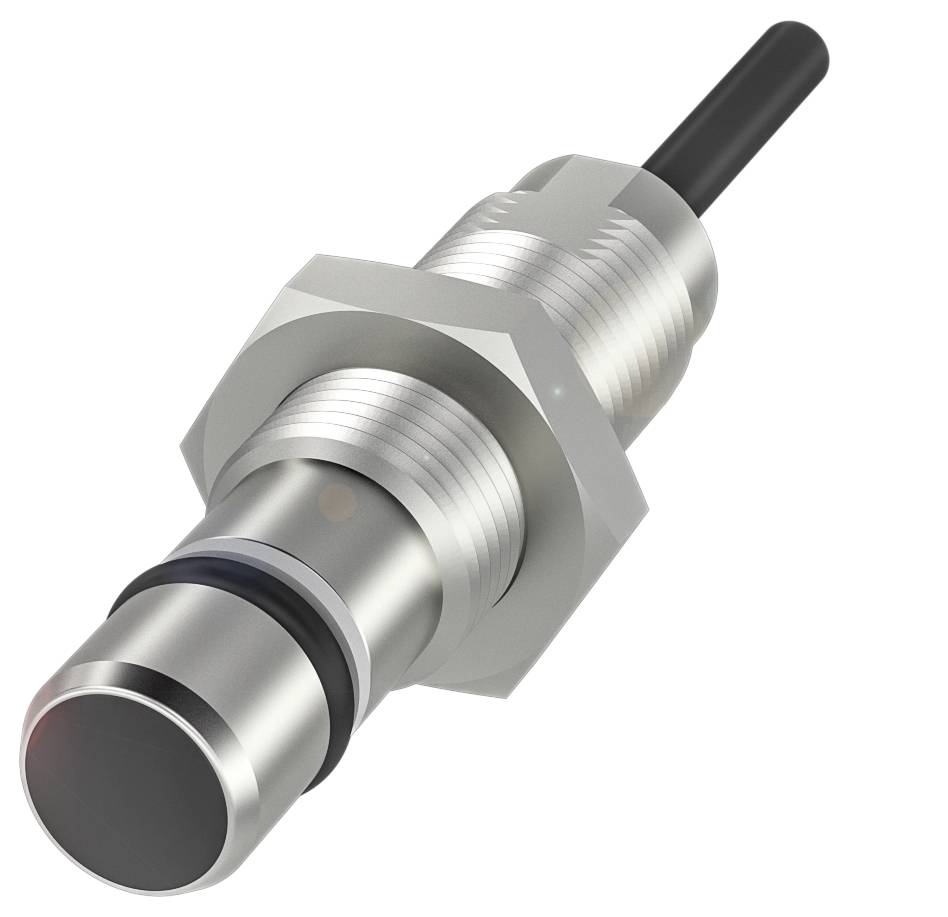

BALLUFF Sensor Inductive BES 516-300-S240-D-PU-03 BHS002H shielded PNP NO (Ø x L) 12 mm x 47 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V DC
Contact type
1 PNP
Switching distance (max.)
1.5 mm
Outputs
PNP NO
Datasheet (PDF)
Highlights & Details
Balluff BHS002H High pressure resistant inductive sensors
- Dimensions: Ø 12 x 47 mm
- Design M12x1
- Flush mounting
- Range: 1.5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 12 x 47 mm
- Active surface, material: EP
- Connection: Cable, 3.00 m, PUR
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 500 bar
- Flush mounting
- Housing material: Stainless steel
- Range: 1.5 mm
- Switching output: PNP NO
- Switching frequency 2000 Hz
- Protection class: IP68
- Ambient temperature: -25 to 80 °C
- Additional features:
- Dimensions: Ø 12 x 47 mm
- Attachment: M12x1
- Operating voltage display: No.
- Function display: No.
- Output resistance Ra: 150.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 50 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 8 mA
- Idle current IO max., unattenuated: 3 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 2000 Hz
- Static voltage drop: 2.2 V
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 855 a
- Active surface, material: EP
- Tightening torque: 20 Nm ±10%
- Size M12x1
- Mounting length 20.00 mm
- Flush mounting: Flush mounting
- Connection type: Cable, 3.00 m, PUR
- Cable diameter D 3.50 mm
- Cable length 3 m
- Housing material: Stainless steel
- Sheath material: PUR
- Number of conductors: 3
- Conductor cross-section: 0.14 mm²
- Support ring material PTFE
- Sealing ring, size 5.85 × 2.4 mm
- Compressive strength max. 500 bar
- Compressive strength, note: Oil-pressure resistant
- Product type
Sensor
- Type
BES 516-300-S240-D-PU-03
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Contact type
1 PNP
- Switching distance (max.)
1.5 mm
- Outputs
PNP NO
- Enclosure material
Stainless steel
EP
- Model
Inductive
- Installation type
shielded
- Connector
Cable
- Cable length
3 m
- Min. temperature
-25 °C
- Max. temperature
80 °C
IP68
- Length
47 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 47 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
2000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417013 BALLUFF Sensor Inductive BES 516-300-S240-D-PU-03 BHS002H shielded PNP NO (Ø x L) 12 mm x 47 mm
User & Safety Instructions
User & Safety Instructions 3417013 BALLUFF Sensor Inductive BES 516-300-S240-D-PU-03 BHS002H shielded PNP NO (Ø x L) 12 mm x 47 mm
Description
Our high pressure inductive sensors can withstand a pressure of up to 500 bar. They are therefore perfect for monitoring the position of your hydraulics, such as for the end position control of hydraulic cylinders or the monitoring of valve positions. Dimensions=Ø 12 x 47 mm, design=M12x1, installation=flush, range=1.5 mm, switching output=PNP NO (NO), Switching frequency=2000 Hz, housing material=stainless steel, active surface, material=EP, connection=cable, 3.00 m, PUR, operating voltage Ub=10...30 VDC, ambient temperature=-25...80 °C, compressive strength max.=500 bar, Protection class=IP68, approval/conformity=CecULusEACWEEE
