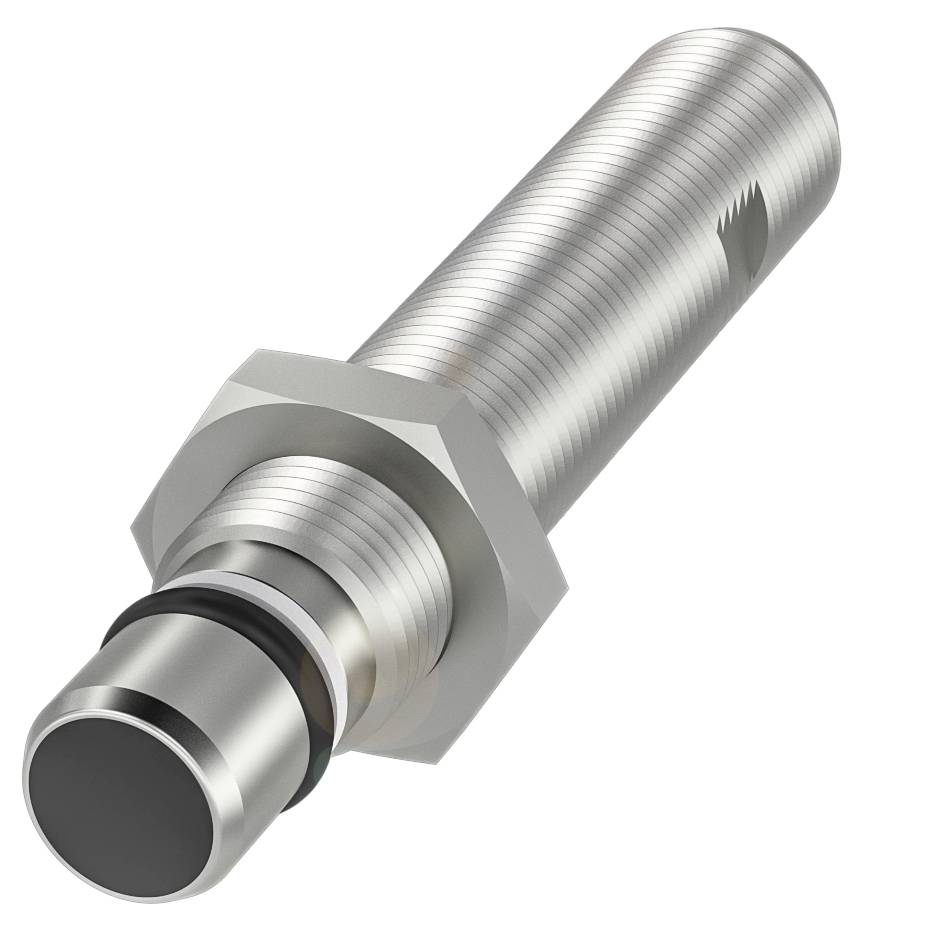

BALLUFF Sensor Inductive BES 516-300-S281-S4-D BHS0037 M12 shielded NPN NO (Ø x L) 12 mm x 69 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V DC
Outputs
NPN NO
Switching distance (max.)
1.5 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BHS0037 High pressure resistant inductive sensors
- Dimensions: Ø 12 x 69 mm
- Design M12x1
- Flush mounting
- Range: 1.5 mm
- Switching output: NPN no (NO)
Technical specifications
- Main features:Dimensions: Ø 12 x 69 mm
- Active surface, material: EP
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 500 bar
- Flush mounting
- Housing material: Stainless steel (1.4104)
- Range: 1.5 mm
- Switching output: NPN no (NO)
- Switching frequency 1000 Hz
- Protection class: IP68
- Ambient temperature: -25 to 80 °C
- Additional features:
- Dimensions: Ø 12 x 69 mm
- Attachment: M12x1
- Operating voltage display: No.
- Function display: No.
- Output resistance Ra: 33.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 10 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 10 mA
- Idle current IO max., unattenuated: 2 mA
- Residual current l max. 80 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 1000 Hz
- Static voltage drop: 1.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 1120 a
- Active surface, material: EP
- Tightening torque: 15 Nm ±10%
- Size M12x1
- Mounting length 55.00 mm
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4104)
- Support ring material PTFE
- Sealing ring, size 5.3 × 2.4 mm
- Compressive strength max. 500 bar
- Compressive strength, note: Oil-pressure resistant
- Product type
Sensor
- Type
BES 516-300-S281-S4-D
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
NPN NO
- Switching distance (max.)
1.5 mm
- Switching frequency
1000 Hz
- Model
Inductive
- Connector
M12 (4-pin)
- Installation type
shielded
- Size
M12
- Enclosure material
Stainless steel
EP
- Contact type
1 maker
IP68
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
69 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 69 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416949 BALLUFF Sensor Inductive BES 516-300-S281-S4-D BHS0037 M12 shielded NPN NO (Ø x L) 12 mm x 69 mm
User & Safety Instructions
User & Safety Instructions 3416949 BALLUFF Sensor Inductive BES 516-300-S281-S4-D BHS0037 M12 shielded NPN NO (Ø x L) 12 mm x 69 mm
Description
Our high-pressure inductive sensors BHS can withstand a pressure of up to 500 bar. They are therefore perfect for monitoring the position of your hydraulics, such as when checking the end position of hydraulic cylinders or monitoring valve positions. Their load capacity is made possible by medium-resistant housing materials and a special sealing method. For your individual applications we offer various designs as well as an extensive range with different housing diameters and thread sizes. Dimensions = Ø 12 x 69 mm, design = M12x1, installation = flush, range = 1.5 mm, switching output = NPN NO, switching frequency = 1000 Hz, housing material = stainless steel (1.4104), active surface, material = EP, connection = connector, M12x1 connector, 4-pole, operating voltage Ub = 10...30 VDC, ambient temperature = -25...80 °C, compressive strength max. = 500 bar, protection class = IP68, certification/conformity = CE, UKCA, cULus, WEEE
