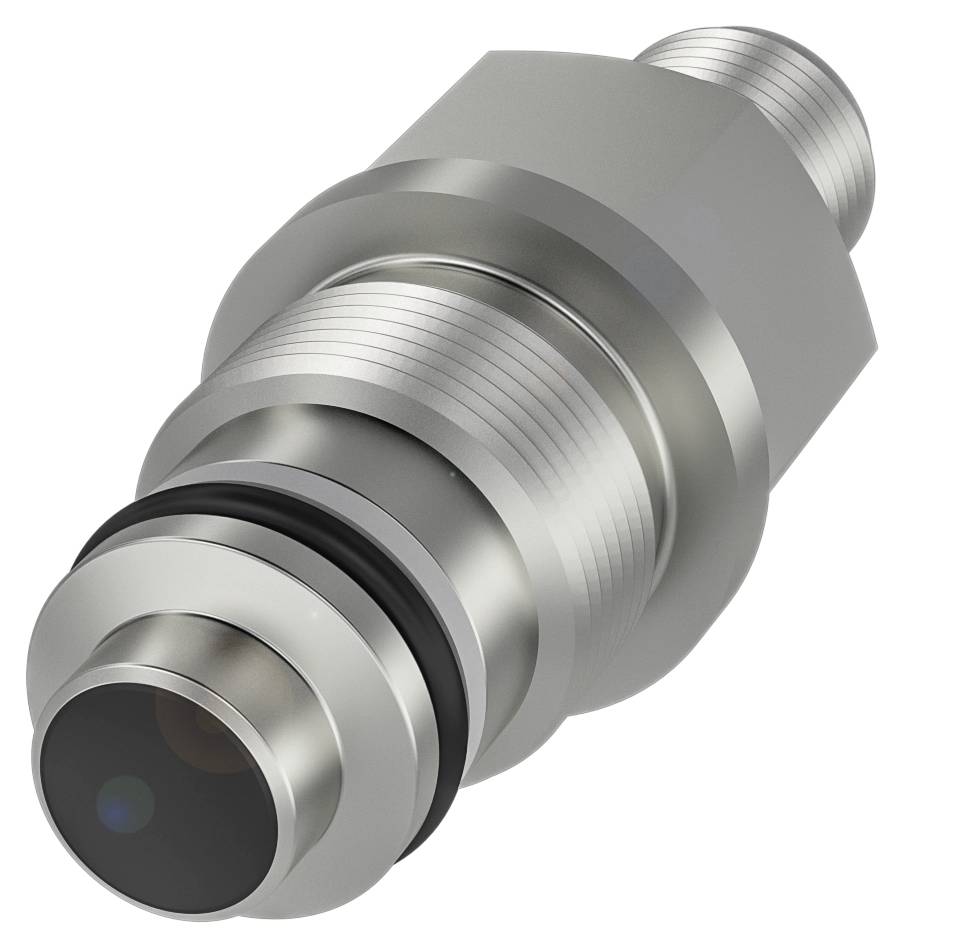

BALLUFF Sensor Inductive BES 516-300-S308-S4-D BHS004J M18 x 1 shielded PNP NO (Ø x H) 18 mm x 55 m Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Sensor
Max. operating voltage
30 V DC
Switching distance (max.)
1.5 mm
Outputs
PNP NO
Datasheet (PDF)
Highlights & Details
Balluff BHS004J High pressure resistant inductive sensors
- Dimensions: Ø 18 x 55 mm
- Design M18x1
- Flush mounting
- Range: 1.5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 18 x 55 mm
- Active surface, material: EP
- Connection: Connector, M12x1 connector, 4-pin
- Design M18x1
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 500 bar
- Flush mounting
- Housing material: Stainless steel (1.4104)
- Range: 1.5 mm
- Switching output: PNP NO
- Switching frequency 2000 Hz
- Protection class: IP68
- Ambient temperature: -25 to 80 °C
- Additional features:
- Dimensions: Ø 18 x 55 mm
- Attachment: M18x1
- Operating voltage display: No.
- Function display: No.
- Output resistance Ra: 150.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 50 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 8 mA
- Idle current IO max., unattenuated: 3 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 2000 Hz
- Static voltage drop: 2.1 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 855 a
- Active surface, material: EP
- Tightening torque: 40 Nm ±10%
- Size M18x1
- Mounting length 10.50 mm
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4104)
- Seal material NBR 60-80
- Support ring material PTFE
- Sealing ring, size 12.42 × 1.78 mm
- Compressive strength max. 500 bar
- Compressive strength, note: Oil-pressure resistant
- Packaging type
Piece
- Product type
Sensor
- Type
BES 516-300-S308-S4-D
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Switching distance (max.)
1.5 mm
- Outputs
PNP NO
- Enclosure material
Stainless steel
EP
- Model
Inductive
- Material properties
oil-resistant
- Installation type
shielded
- Size
M18 x 1
- Connector
M12 (4-pin)
- Min. temperature
-25 °C
- Max. temperature
80 °C
IP68
- Length
55 mm
- Height
55 m
- (Ø)
18 mm
- Dim
(Ø x H) 18 mm x 55 m
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
2000 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417021 BALLUFF Sensor Inductive BES 516-300-S308-S4-D BHS004J M18 x 1 shielded PNP NO (Ø x H) 18 mm x 55 m Piece
User & Safety Instructions
User & Safety Instructions 3417021 BALLUFF Sensor Inductive BES 516-300-S308-S4-D BHS004J M18 x 1 shielded PNP NO (Ø x H) 18 mm x 55 m Piece
Description
Our high pressure inductive sensors can withstand a pressure of up to 500 bar. They are therefore perfect for monitoring the position of your hydraulics, such as for the end position control of hydraulic cylinders or the monitoring of valve positions. Inductive sensor, Ø 18 x 55 mm, connector, NO (NO), nominal switching distance Sn=1.5 mm, flush, 500 bar, oil pressure resistant, housing material=stainless steel (1.4104), active surface, material=EP
