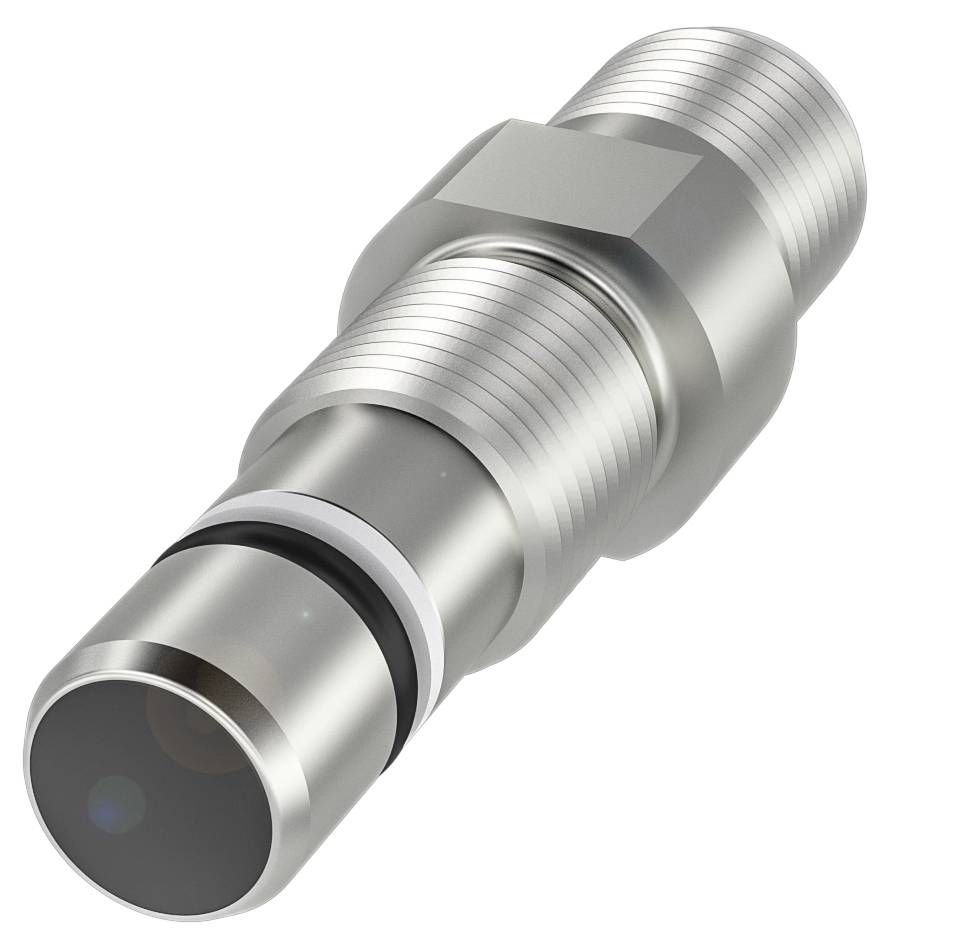

BALLUFF Sensor Inductive BES 516-300-S324-S4-D BHS004T M12 shielded PNP NO (Ø x L) 12 mm x 50 mm
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V DC
Outputs
PNP NO
Switching distance (max.)
1.5 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BHS004T High pressure resistant inductive sensors
- Dimensions: Ø 12 x 50 mm
- Design M12x1
- Flush mounting
- Range: 1.5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 12 x 50 mm
- Active surface, material: EP
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 350 bar
- Flush mounting
- Housing material: Stainless steel (1.4104)
- Range: 1.5 mm
- Switching output: PNP NO
- Switching frequency 1000 Hz
- Protection class: IP68
- Ambient temperature: -25 to 80 °C
- Additional features:
- Dimensions: Ø 12 x 50 mm
- Attachment: M12x1
- Operating voltage display: No.
- Function display: No.
- Output resistance Ra: 150.0 kOhm
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 50 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 1 µF
- Idle current IO max., dammed.: 8 mA
- Idle current IO max., unattenuated: 3 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 1000 Hz
- Static voltage drop: 2.1 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.2 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 10%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 855 a
- Active surface, material: EP
- Tightening torque: 20 Nm ±10%
- Size M12x1
- Mounting length 12.00 mm
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4104)
- Deviation from basic type: Oil-pressure resistant up to 350 bar
- Support ring material PTFE
- Sealing ring, size 5.85 × 2.4 mm
- Compressive strength max. 350 bar
- Compressive strength, note: Oil-pressure resistant
- Product type
Sensor
- Type
BES 516-300-S324-S4-D
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP NO
- Switching distance (max.)
1.5 mm
- Switching frequency
1000 Hz
- Model
Inductive
- Features
oil-resistant
- Connector
M12 (4-pin)
- Installation type
shielded
- Size
M12
- Enclosure material
Stainless steel
EP
IP68
- Min. temperature
-25 °C
- Max. temperature
80 °C
- Length
50 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 50 mm
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416899 BALLUFF Sensor Inductive BES 516-300-S324-S4-D BHS004T M12 shielded PNP NO (Ø x L) 12 mm x 50 mm
User & Safety Instructions
User & Safety Instructions 3416899 BALLUFF Sensor Inductive BES 516-300-S324-S4-D BHS004T M12 shielded PNP NO (Ø x L) 12 mm x 50 mm
Description
Our high pressure inductive sensors can withstand a pressure of up to 500 bar. They are therefore perfect for monitoring the position of your hydraulics, such as for the end position control of hydraulic cylinders or the monitoring of valve positions. Inductive sensor, Ø 12 x 50 mm, connector, NO (NO), nominal switching distance Sn=1.5 mm, flush, 350 bar, oil pressure resistant, housing material=stainless steel (1.4104), active surface, material=EP
