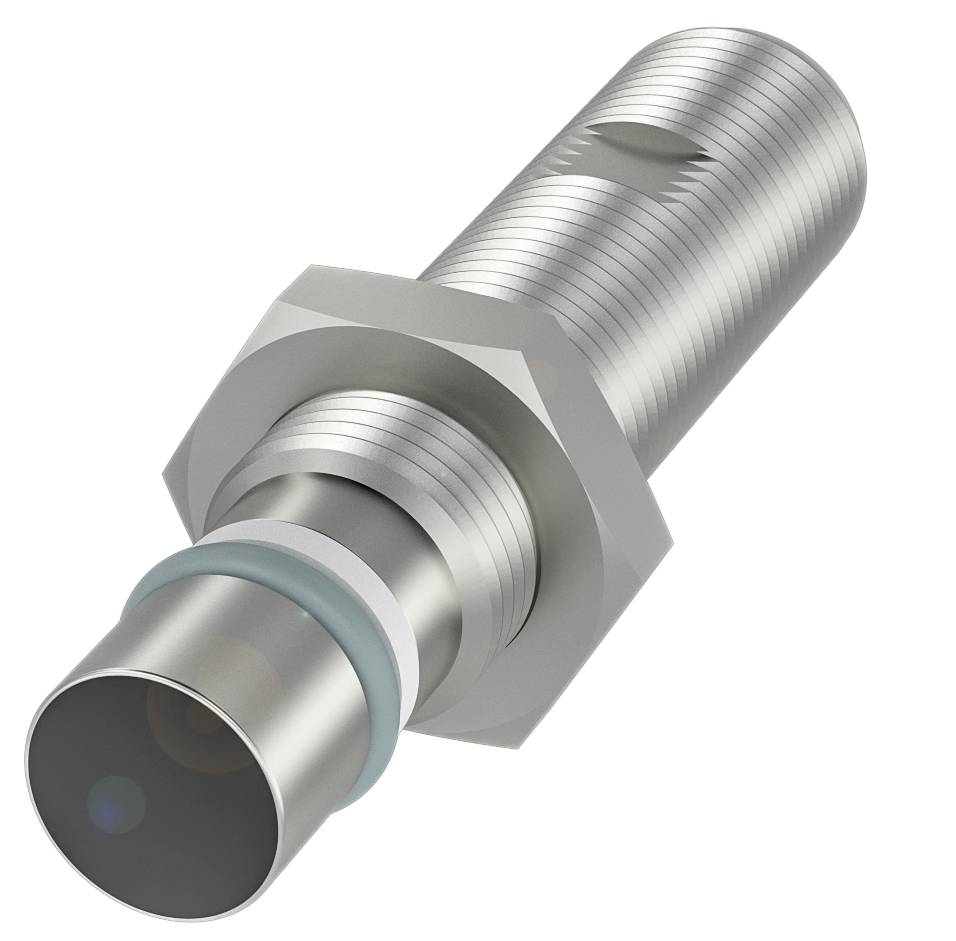

BALLUFF Sensor Inductive BHS B265V-PSD15-S04 BHS0061 M12 shielded PNP NO (Ø x L) 12 mm x 56 mm Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Sensor
Max. operating voltage
30 V DC
Switching distance (max.)
1.5 mm
Outputs
PNP NO
Datasheet (PDF)
Highlights & Details
Balluff BHS0061 Cylindrical design for high pressure resistant applications
- Dimensions: Ø 12 x 56 mm
- Design M12x1
- Flush mounting
- Range: 1.5 mm
- Installation length from contact area 15 mm
Technical specifications
- Main features:Dimensions: Ø 12 x 56 mm
- Active surface, material: Ceramic
- Connection: Connector, M12x1 connector, 4-pin
- Design M12x1
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 500 bar
- Flush mounting
- Installation length from contact area 15 mm
- Housing material: Stainless steel
- Range: 1.5 mm
- Switching output: PNP NO
- Switching frequency 400 Hz
- Protection class: IP68
- Ambient temperature: -25 to 120 °C
- Additional features:
- Dimensions: Ø 12 x 56 mm
- Attachment: M12x1
- Operating voltage display: No.
- Function display: No.
- Output resistance Ra: 33.0 kOhm + 2D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 20 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.5 µF
- Idle current IO max., dammed.: 8 mA
- Idle current IO max., unattenuated: 8 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 400 Hz
- Static voltage drop: 2.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.21 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 15%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 500 a
- Active surface, material: Ceramic
- Tightening torque: 15 Nm ±10%
- Size M12x1
- Mounting length 24.50 mm
- Flush mounting: Flush mounting
- Housing material: Stainless steel
- Support ring material PTFE
- Sealing ring, size 6.75 × 1.78 mm
- Compressive strength max. 500 bar
- Compressive strength, note: Oil-pressure resistant
- Packaging type
Piece
- Product type
Sensor
- Type
BHS B265V-PSD15-S04
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Switching distance (max.)
1.5 mm
- Outputs
PNP NO
- Enclosure material
Stainless steel
Ceramic
- Model
Inductive
- Material properties
rust-proof
- Installation type
shielded
- Size
M12
- Connector
M12 (4-pin)
- Features
oil-resistant
- Min. temperature
-25 °C
- Max. temperature
120 °C
IP68
- Length
56 mm
- (Ø)
12 mm
- Dim
(Ø x L) 12 mm x 56 mm
- Content
1 pc(s)
- Nominal voltage
24 V
- Switching frequency
400 Hz
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417196 BALLUFF Sensor Inductive BHS B265V-PSD15-S04 BHS0061 M12 shielded PNP NO (Ø x L) 12 mm x 56 mm Piece
User & Safety Instructions
User & Safety Instructions 3417196 BALLUFF Sensor Inductive BHS B265V-PSD15-S04 BHS0061 M12 shielded PNP NO (Ø x L) 12 mm x 56 mm Piece
Description
Our high pressure inductive sensors can withstand a pressure of up to 500 bar. They are therefore perfect for monitoring the position of your hydraulics, such as for the end position control of hydraulic cylinders or the monitoring of valve positions. Inductive sensor, Ø 12 x 56 mm, connector, NO (NO), nominal switching distance Sn=1.5 mm, flush, 500 bar, oil pressure resistant, housing material=stainless steel, active surface, material=ceramic
