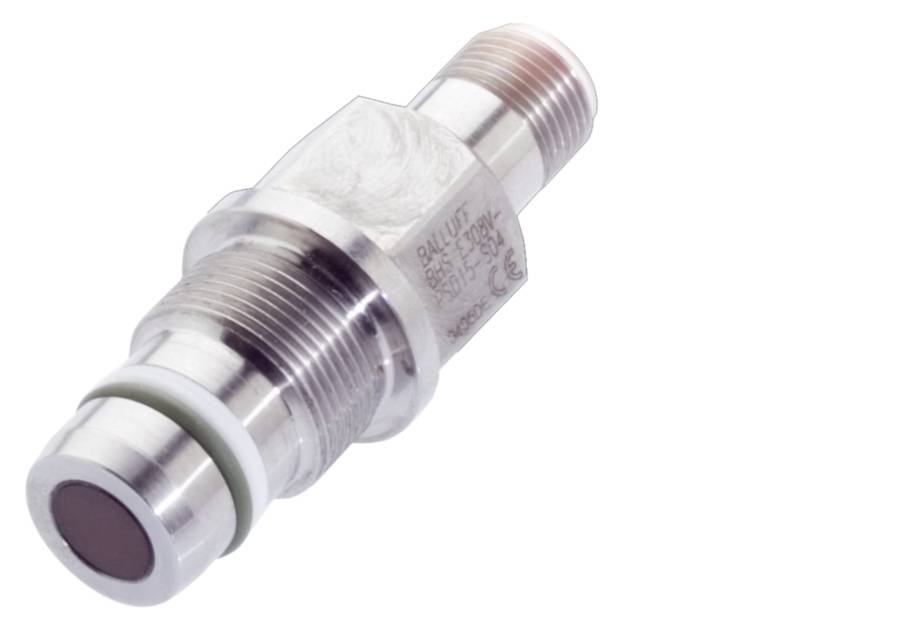

BALLUFF Sensor Inductive BHS E308V-PSD15-S04 BHS0067 shielded PNP NO (Ø x H) 15 mm x 58 m
EAN:
Part number:
Item no:
Product type
Sensor
Max. operating voltage
30 V DC
Outputs
PNP NO
Switching distance (max.)
1.5 mm
Model
Inductive
Datasheet (PDF)
Highlights & Details
Balluff BHS0067 High pressure resistant inductive sensors
- Dimensions: Ø 15 x 58 mm
- D15.0 type
- Flush mounting
- Range: 1.5 mm
- Switching output: PNP NO
Technical specifications
- Main features:Dimensions: Ø 15 x 58 mm
- Active surface, material: Ceramic
- Connection: Connector, M12x1 connector, 4-pin
- D15.0 type
- Operating voltage Ub 10...30 VDC
- Compressive strength max. 500 bar
- Flush mounting
- Housing material: Stainless steel (1.4104)
- Range: 1.5 mm
- Switching output: PNP NO
- Switching frequency 400 Hz
- Protection class: IP68
- Ambient temperature: -25 to 120 °C
- Additional features:
- Dimensions: Ø 15 x 58 mm
- Attachment: M18x1
- Operating voltage display: No.
- Function display: No.
- Output resistance Ra: 33.0 kOhm + 2D
- Rated operating voltage Ue DC 24 V
- Rated operating current Ie 200 mA
- Rated insulation voltage UI 75 V DC
- Rated short-circuit current 100 A.
- Standby delay TV max.: 20 ms
- Operating voltage Ub 10...30 VDC
- Usage category: DC-13
- Minimum operating current Im: 0 mA
- Load capacity max. at Ue 0.5 µF
- Idle current IO max., dammed.: 8 mA
- Idle current IO max., unattenuated: 8 mA
- Residual current l max. 10 µA
- Residual ripple max. (% of Ue): 15%
- Switching frequency 400 Hz
- Static voltage drop: 2.5 V
- Connection: M12x1 4-pin connector, A-coded
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Exchange possibility protected: Yes
- Guaranteed switching distance of Sa: 1.21 mm
- Hysteresis H max. (% of Sr): 15.0%
- Rated switching distance Sn: 1.5 mm
- Real switching distance Sr:1.5 mm
- Real switching distance Sr, tolerance: ±10 %
- Temperature drift max. (% of Sr): 15%
- Repeatability max. (% of Sr): 5.0%
- MTTF (40 °C) 500 a
- Active surface, material: Ceramic
- Tightening torque: 40 Nm ±10%
- Size D15.0
- Mounting length 10.50 mm
- Flush mounting: Flush mounting
- Housing material: Stainless steel (1.4104)
- Support ring material PTFE
- Sealing ring, size 12.42 × 1.78 mm
- Compressive strength max. 500 bar
- Compressive strength, note: Oil-pressure resistant
- Product type
Sensor
- Type
BHS E308V-PSD15-S04
- Min. operating voltage
10 V DC
- Max. operating voltage
30 V DC
- Operating voltage
10 - 30 V DC
- Outputs
PNP NO
- Switching distance (max.)
1.5 mm
- Switching frequency
400 Hz
- Model
Inductive
- Features
oil-resistant
- Connector
M12 (4-pin)
- Installation type
shielded
- Material properties
oil-resistant
- Enclosure material
Stainless steel
Ceramic
IP68
- Min. temperature
-25 °C
- Max. temperature
120 °C
- Length
58 mm
- Height
58 m
- (Ø)
15 mm
- Dim
(Ø x H) 15 mm x 58 m
- Nominal voltage
24 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3417298 BALLUFF Sensor Inductive BHS E308V-PSD15-S04 BHS0067 shielded PNP NO (Ø x H) 15 mm x 58 m
User & Safety Instructions
User & Safety Instructions 3417298 BALLUFF Sensor Inductive BHS E308V-PSD15-S04 BHS0067 shielded PNP NO (Ø x H) 15 mm x 58 m
Description
Our high pressure inductive sensors can withstand a pressure of up to 500 bar. They are therefore perfect for monitoring the position of your hydraulics, such as for the end position control of hydraulic cylinders or the monitoring of valve positions. Inductive sensor, Ø 15 x 58 mm, connector, NO (NO), nominal switching distance Sn=1.5 mm, flush, 500 bar, oil pressure resistant, housing material=stainless steel (1.4104), active surface, material=ceramic
