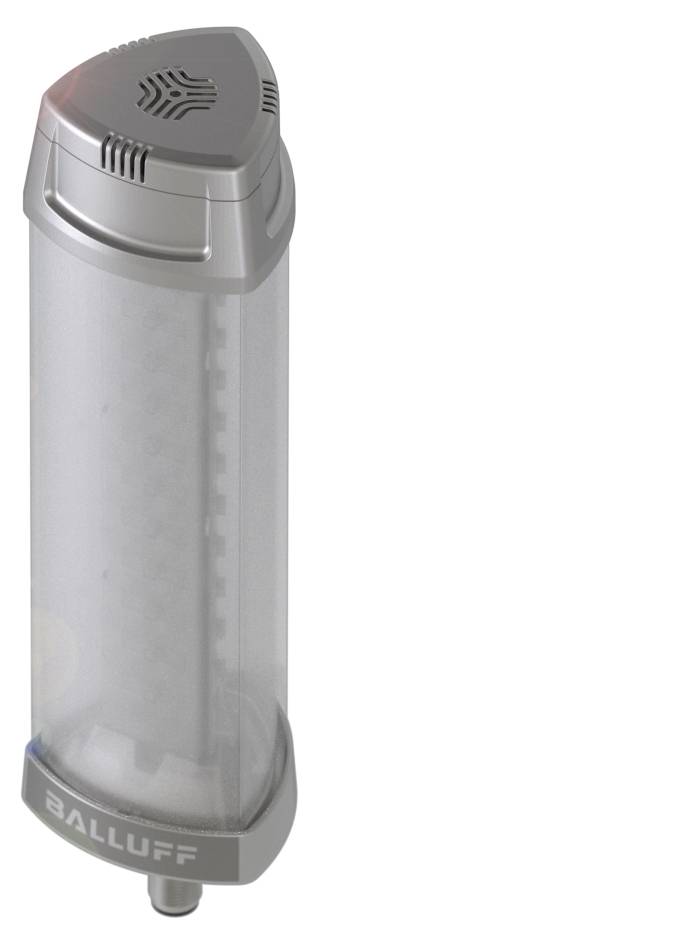

BALLUFF Signal tower BNI0086 BNI IOL-801-000-Z037 LED Yellow, White, Green, Blue, Red , Orange 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Balluff BNI0086 Smart LED signal tower with different number of segments
- Connection: M12x1 connector, 4-pin
- Operating voltage Ub 18...30.2 VDC
- Interface: IO-Link 1.1
- Operational principle: Indicator light with buzzer
- Segments, number max.: 3
Technical specifications
- Main features:Dimension 60 x 60 x 234.5 mm
- Connection: M12x1 connector, 4-pin
- Mounting: Screws M18
- Operating voltage Ub 18...30.2 VDC
- Setting option: Function display
- Volume
- Colors predefined: Yellow
- White
- Green
- Blue
- red
- orange
- configurable
- Function display: Running light mode
- Level mode
- Segment mode
- Flexi mode
- Operational principle: Indicator light with buzzer
- PC, transparent, Cu 15 µm, Ni 15 µm
- Zinc diecasting
- Volume (at 1m distance): 95 dB/m
- Process data OUT: 3 bytes
- Process data cycle min.: 5 ms
- Interface: IO-Link 1.1
- IP30 protection
- Segments, number max.: 3
- COM2 (38.4 kBaud) transfer rate
- Ambient temperature -5...50 °C
- Additional features:
- Scope of delivery: Spring ring|rubber foot|quick start guide|screw M4x6|hex nut M18x1
- Dimensions 60 x 60 x 234.5 mm
- Mounting: Screws M18
- Function display: Running light mode|Level mode|Segment mode|Flexi mode
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 18...30.2 VDC
- Connection: M12x1 4-pin connector, A-coded
- MTTF (40 °C) 52.6 a
- Housing material: PC, transparent, Cu 15 µm, Ni 15|µm|Zinc die cast
- IP30 protection
- Ambient temperature -5...50 °C
- Lifetime: Min. 50000 h
- Display IO-Link communication: Green LED
- Module supply display: Green LED
- Dimmable: Yes
- Setting option: Function display|Volume
- Predefined colors: Yellow|white|green|blue|red|orange|configurable
- Colours, number: 7
- Segments, number max.: 3
- Buzzer function: Yes
- Contacts, surface protection: Nickel-plated 2 µm/gold-plated 0.4 µm
- Case shielding: Yes
- Surface protection: Cu 15 µm|Ni 15 µm
- Application weight 470.00 g
- Mounting earthing cable M4
- Error signal: 255 mA at 24V
- Frame type 2.V
- IO-Link Version: 1.1
- IO-Link function: Device
- Process data OUT: 3 bytes
- Process data cycle min.: 5 ms
- Storage temperature: -25...50 °C
- Interface: IO-Link 1.1
- Sound frequency 2800 ± 500 Hz
- Cycle time min.: 5 ms
- Volume (at 1m distance): 95 dB/m
- Product type
Signal tower
- Operating voltage
24 V DC
- Max. current consumption
255 mA
- Height
234.5 mm
- Features
LED
IP30
- Dim
(L x W x H) 60 x 60 x 234.5 mm
- Length
60 mm
- Width
60 mm
- Colour
Yellow
White
Green
Blue
Red
Orange
- Material
PC
- Type
BNI IOL-801-000-Z037
- Noise emission (max.)
95 dB
- Weight
470.00 g
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416491 BALLUFF Signal tower BNI0086 BNI IOL-801-000-Z037 LED Yellow, White, Green, Blue, Red , Orange 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3416491 BALLUFF Signal tower BNI0086 BNI IOL-801-000-Z037 LED Yellow, White, Green, Blue, Red , Orange 1 pc(s)
Description
Balluff offers the SmartLight LED signal towers and the SmartLight Indicator signal displays for reliable monitoring of the condition and application areas of machines and systems. With these signal lights you can visualize your desired information in a convenient way.The SmartLight LED signal tower allows you to display critical machine states and simply read the trends, patterns and trends of physical quantities based on the color scale. Operating principle = indicator lamp with buzzer, interface = IO-Link 1.1, operating voltage Ub = 18...30.2 VDC, connection = M12x1 plug, 4-pole, segments, number max. = 3, colors predefined = yellow, white, green, blue, red, orange, configurable, function display = running light mode, level mode, segment mode, Flexi mode, volume (at 1m distance) = 95 dB/m, setting option = function display, volume, dimension = 60 x 60 x 234.5 mm, housing material = PC, transparent, Cu 15 µm, Ni 15 µm Zinc die casting, attachment = M18 screws, ambient temperature = -5...50 °C, protection class = IP30, transmission rate = COM2 (38.4 kBaud), process data cycle min. = 5 ms, process data OUT = 3 bytes
