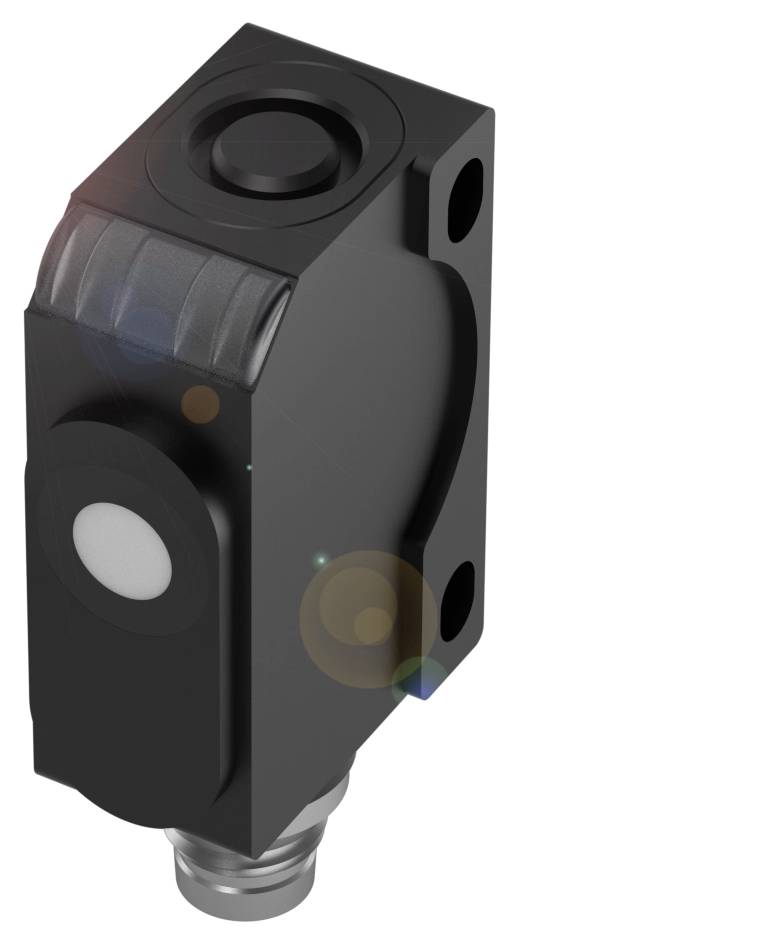

BALLUFF Ultrasonic sensor Ultrasound Current (analogue) BUS004F
EAN:
Part number:
Item no:
Product type
Ultrasonic sensor
Max. operating voltage
30 V
Outputs
Current (analogue)
Switching distance (max.)
240 mm
Model
Ultrasound
Datasheet (PDF)
Highlights & Details
BALLUFF BUS004F Cubic design and analogue or digital output
- Connection: Plug connector, M8x1 plug, 4-pin
- Design: Square-shaped
- Casing material: ABS, nickel-plated
- Active surface, material: PU foam/epoxy resin/glass
- Analog output: Analog, current 4…20 mA
Technical specifications
- Main features:Active surface, material: PU foam/epoxy resin/glass
- Analog output: Analog, current 4…20 mA
- Connection: Plug connector, M8x1 plug, 4-pin
- Design: Square-shaped
- Operating voltage Ub 20...30 VDC
- Casing material: ABS, nickel-plated
- Range 50...350 mm
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Repeatability ± 0.15 % FS
- Additional features:
- Dimensions 12 x 42.5 x 23.1 mm
- Mounting: M3 screw
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 20...30 VDC
- M8x1 connection, 4-pin
- Reverse polarity protection: Yes
- Rated switching distance Sn: 240 mm
- MTTF (40 °C) 516 a
- Active surface, material: PU foam/epoxy resin/glass
- Casing material: ABS, nickel-plated
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Setting option: Key lock on/off|factory setting (reset)|curve rising/falling
- Surface protection: Nickel-plated
- R06K1 series
- Display: Operating mode - LED green, flashes|LED green: Operating voltage|Object in range - LED yellow
- Adjuster: Button
- Storage temperature: -40...85 °C
- Application: Distance measurement
- Measurement range 50...350 mm
- Operating mode: Analogue measurement (characteristic curve)
- Input function: Synchronization signal
- Power consumption max. 35 mA
- Synchronisation: External, any number of sensors
- Ultrasound frequency 500 kHz
- Resolution ≤ 0,037 mm
- Repeatability ± 0.15 % FS
- Analog output: Analog, current 4…20 mA
- Output characteristic: Linear ascending/descending
- Load resistance RL max. (Analogue I): 500 Ohm
- Product type
Ultrasonic sensor
- Type
BUS004F
- Min. operating voltage
20 V
- Max. operating voltage
30 V
- Operating voltage
20 - 30 V
- Outputs
Current (analogue)
- Switching distance (max.)
240 mm
- Model
Ultrasound
- Connector
Plug
- Material properties
nickel plated
- Enclosure material
Acrylonitrile butadiene styrene
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
23.1 mm
- Width
12.0 mm
- Height
42.5 mm
- Dim
(L x W x H) 23.1 x 12.0 x 42.5 mm
- Material
ABS (metallized)
- Nominal voltage
30 V
- Operating voltage
24
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416333 BALLUFF Ultrasonic sensor Ultrasound Current (analogue) BUS004F
User & Safety Instructions
User & Safety Instructions 3416333 BALLUFF Ultrasonic sensor Ultrasound Current (analogue) BUS004F
Description
Position detection or object detection in solid, powder and liquid media - contactless control of presence and counting objects. They can be used universally, independent of color and surface finish. Fog, dust or dirt are no problem for you. Their high resolution and small blind zones ensure extreme precision. Ultrasonic sensors differ with their output signal. Design = rectangular, analogue output = analogue, current 4.20 mA, connection = plug connector, M8x1 plug, 4-pole, housing material=ABS, active surface, material=PU-foam/epoxy resin/glass, range=50...350 mm, Approval/conformity=CEEACWEEE, ambient temperature=-25...70 °C, protection class=IP67, repetition accuracy=± 0.15 % FS, operating voltage Ub=20...30 VDC
