BALLUFF Ultrasonic sensor Ultrasound M18 Analogue BUS0050 Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Ultrasonic sensor
Max. operating voltage
30 V
Outputs
Analogue
Switching distance (max.)
250 mm
Datasheet (PDF)
Highlights & Details

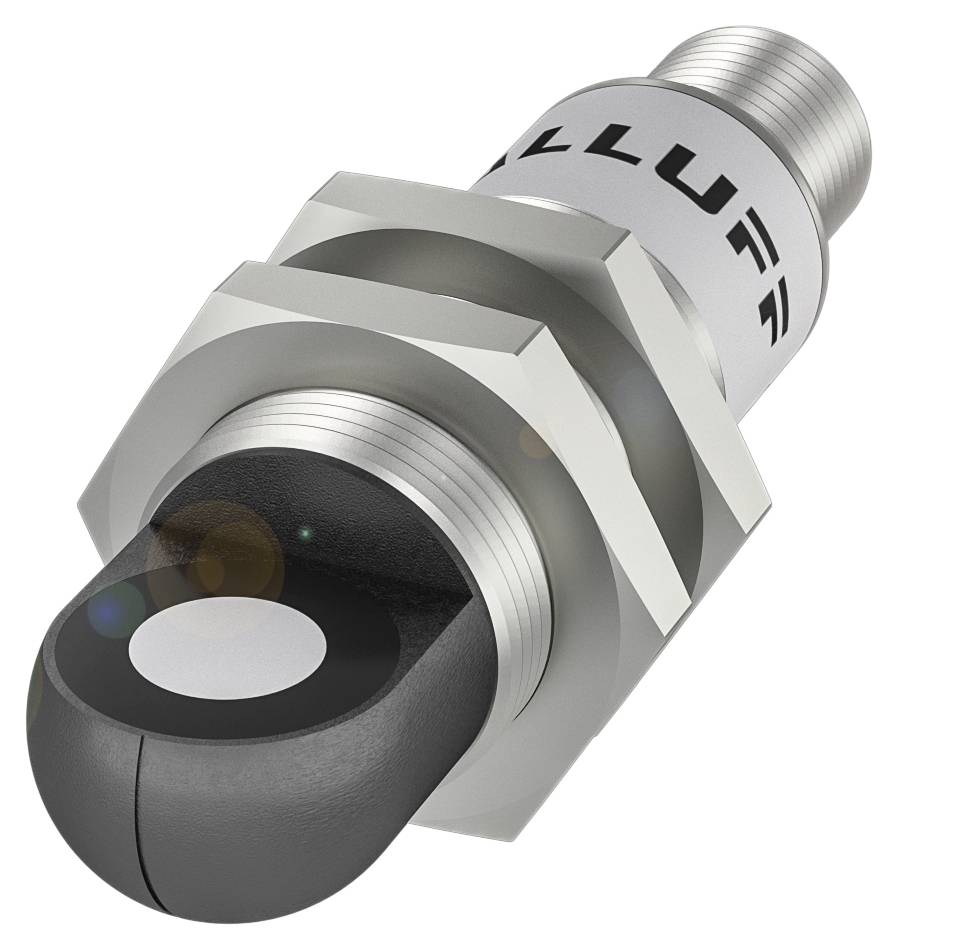

Balluff BUS0050 Cylindrical design with angled sensor head and analogue or digital output
- Connection: Connector, M12x1 connector, 5-pin
- Design: Ø 18 mm
- Housing material: Nickel-plated brass
- PBT
- Active surface, material: PU foam/epoxy resin/glass
- Analog output: Analog, voltage 0…10 V.
Technical specifications
- Main features:Active surface, material: PU foam/epoxy resin/glass
- Analog output: Analog, voltage 0…10 V.
- Connection: Connector, M12x1 connector, 5-pin
- Design: Ø 18 mm
- Operating voltage Ub 15...30 VDC
- Housing material: Nickel-plated brass
- PBT
- Range 30...350 mm
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Repeatability ± 0.15 % FS
- Additional features:
- Dimensions: Ø 18 x 68.4 mm
- Attachment: Nut M18x1
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 15...30 VDC
- Connection: M12x1 connector, 5-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Rated switching distance Sn: 250 mm
- MTTF (40 °C) 1134 a
- Active surface, material: PU foam/epoxy resin/glass
- Housing material: Brass, nickel-plated|PBT
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Surface protection: Nickel-plated
- Series W18M1
- Display: LED green: Operating voltage|Object in range - LED yellow
- Adjuster: No
- Storage temperature: -40...85 °C
- Application: Distance measurement
- Measurement range 30...350 mm
- Operating mode: Analogue measurement (characteristic curve)
- Input function: Characteristic curve rising/falling|Teaching in working area|Factory setting (Reset)|Synchronisation on/off|Synchronization signal
- Power consumption max. 40 mA
- Synchronisation: Internal, max. of 10 sensors
- Ultrasound frequency 320 kHz
- Resolution ≤ 0,070 mm
- Repeatability ± 0.15 % FS
- Analog output: Analog, voltage 0…10 V.
- Output characteristic: Linear ascending/descending
- Load resistance RL min. (Analogue U): 100 kOhm at UB > 15 V
- Packaging type
Piece
- Product type
Ultrasonic sensor
- Type
BUS0050
- Min. operating voltage
15 V
- Max. operating voltage
30 V
- Operating voltage
15 - 30 V
- Outputs
Analogue
- Switching distance (max.)
250 mm
- Model
Ultrasound
- Connector
M12 plug (5-pin)
- Size
M18
- Material properties
nickel plated
- Enclosure material
Brass
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
68.4 mm
- (Ø)
18 m
- Dim
(Ø x L) 18 m x 68.4 mm
- Material
Brass (Ni-plated)
PBT
- Nominal voltage
30 V
- Operating voltage
24
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416374 BALLUFF Ultrasonic sensor Ultrasound M18 Analogue BUS0050 Piece
User & Safety Instructions
User & Safety Instructions 3416374 BALLUFF Ultrasonic sensor Ultrasound M18 Analogue BUS0050 Piece
Description
Position detection or object detection in solid, powder and liquid media - contactless control of presence and counting objects. They can be used universally, independent of color and surface finish. Fog, dust or dirt are no problem for you. Their high resolution and small blind zones ensure extreme precision. Ultrasonic sensors differ with their output signal. Design=Ø 18 mm, analogue output=analogue, voltage 0.10 V linear increasing/falling, connection=connector, M12x1 connector, 5-pin, case material=brass PBT, Active surface, material=PU-foam/epoxy resin/glass, range=30...350 mm, approval/conformity=cULus LISTEDCEEACWEEE, ambient temperature=-25...70 °C, Protection type=IP67, repeatability=± 0.15 % FS, operating voltage Ub=15...30 VDC
