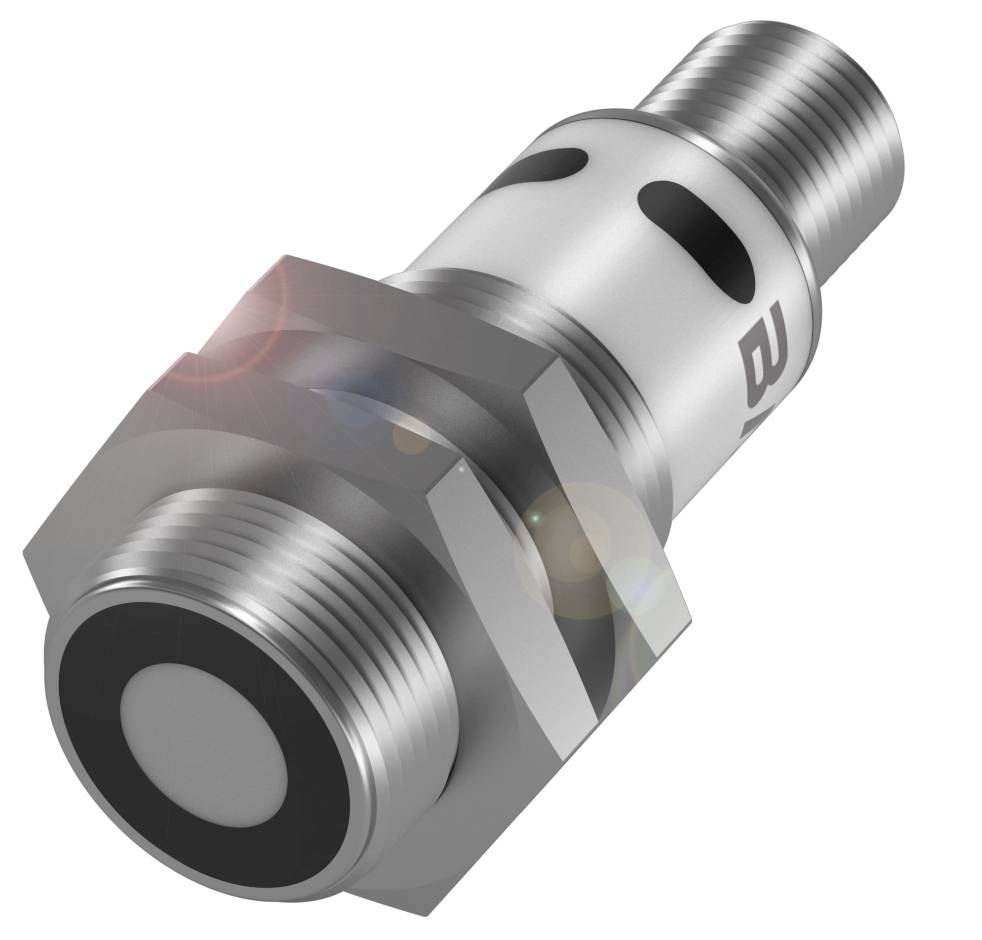

BALLUFF Ultrasonic sensor Ultrasound M18 Current (analogue) BUS002C Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Ultrasonic sensor
Max. operating voltage
30 V
Outputs
Current (analogue)
Switching distance (max.)
250 mm
Datasheet (PDF)
Highlights & Details
Balluff BUS002C Cylindrical version with M18 thread and analog or digital output
- Connection: Connector, M12x1 connector, 5-pin
- Design: Ø 18 mm
- Housing material: Nickel-plated brass
- PBT
- Active surface, material: PU foam/epoxy resin/glass
- Analog output: Analog, current 4…20 mA
Technical specifications
- Main features:Active surface, material: PU foam/epoxy resin/glass
- Analog output: Analog, current 4…20 mA
- Connection: Connector, M12x1 connector, 5-pin
- Design: Ø 18 mm
- Operating voltage Ub 10...30 VDC
- Housing material: Nickel-plated brass
- PBT
- Range 30...350 mm
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Repeatability ± 0.15 % FS
- Additional features:
- Dimensions: Ø 18 x 52.5 mm
- Attachment: Nut M18x1
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 10...30 VDC
- Connection: M12x1 connector, 5-pin
- Reverse polarity protection: Yes
- Rated switching distance Sn: 250 mm
- MTTF (40 °C) 1134 a
- Active surface, material: PU foam/epoxy resin/glass
- Housing material: Brass, nickel-plated|PBT
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Surface protection: Nickel-plated
- M18M1 series
- Display: LED green: Operating voltage|Object in range - LED yellow
- Adjuster: No
- Storage temperature: -40...85 °C
- Application: Distance measurement
- Measurement range 30...350 mm
- Operating mode: Analogue measurement (characteristic curve)
- Input function: Characteristic curve rising/falling|Teaching in working area|Factory setting (Reset)|Synchronisation on/off|Synchronization signal
- Power consumption max. 40 mA
- Synchronisation: Internal, max. of 10 sensors
- Ultrasound frequency 320 kHz
- Resolution ≤ 0,070 mm
- Repeatability ± 0.15 % FS
- Analog output: Analog, current 4…20 mA
- Output characteristic: Linear ascending/descending
- Load resistance RL max. (Analogue I): 500 ohms at UB > 20 V|100 ohms at UB < 20 V
- Packaging type
Piece
- Product type
Ultrasonic sensor
- Type
BUS002C
- Min. operating voltage
10 V
- Max. operating voltage
30 V
- Operating voltage
10 - 30 V
- Outputs
Current (analogue)
- Switching distance (max.)
250 mm
- Model
Ultrasound
- Connector
M12 plug (5-pin)
- Size
M18
- Enclosure material
Brass
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
52.5 mm
- (Ø)
18 m
- Dim
(Ø x L) 18 m x 52.5 mm
- Material
Brass (Ni-plated)
PBT
- Nominal voltage
30 V
- Operating voltage
24
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416271 BALLUFF Ultrasonic sensor Ultrasound M18 Current (analogue) BUS002C Piece
User & Safety Instructions
User & Safety Instructions 3416271 BALLUFF Ultrasonic sensor Ultrasound M18 Current (analogue) BUS002C Piece
Description
Position detection or object detection in solid, powder and liquid media - contactless control of presence and counting objects. They can be used universally, independent of color and surface finish. Fog, dust or dirt are no problem for you. Their high resolution and small blind zones ensure extreme precision. Ultrasonic sensors differ with their output signal. Design=Ø 18 mm, analogue output=analogue, current 4.20 mA linear increasing/falling, connection=plug connector, M12x1 plug, 5-pin, casing material=brass PBT, Active surface, material=PU-foam/epoxy resin/glass, range=30...350 mm, approval/conformity=cULus LISTEDCEEACWEEE, ambient temperature=-25...70 °C, Protection type=IP67, repeatability=± 0.15 % FS, operating voltage Ub=10...30 VDC
