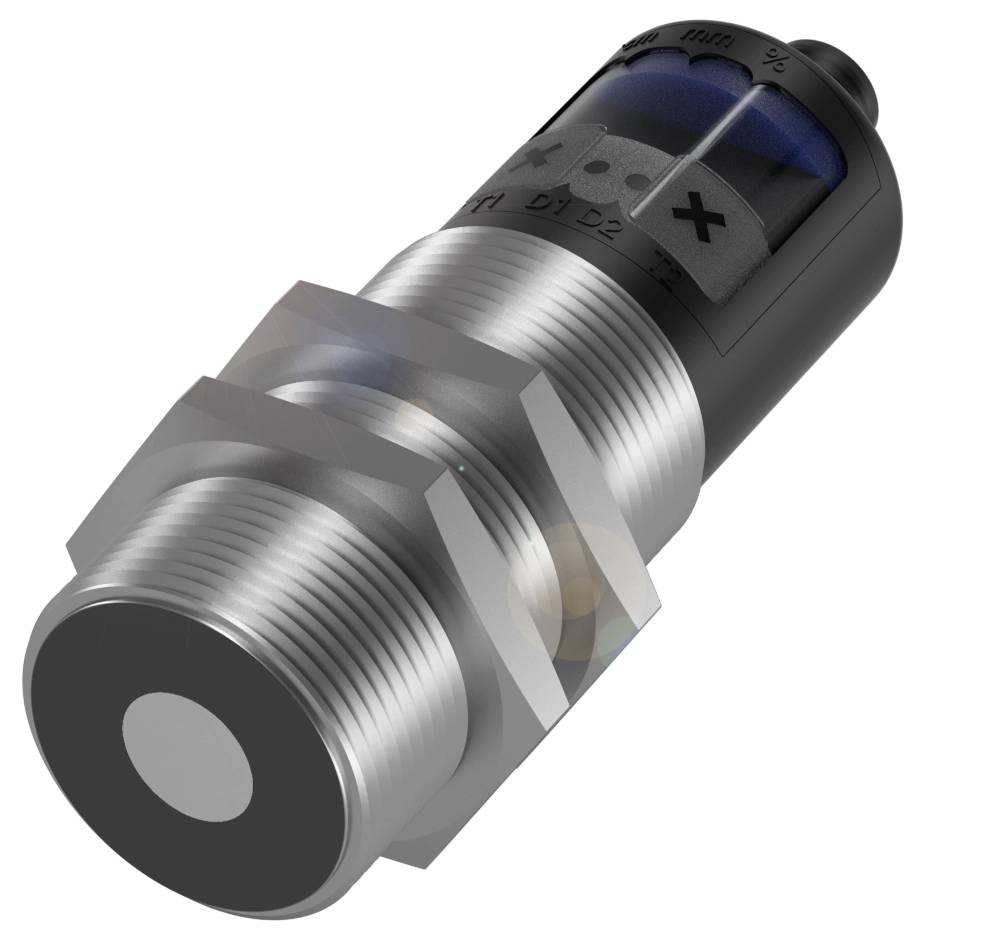

BALLUFF Ultrasonic sensor Ultrasound M30 PNP BUS005M
EAN:
Part number:
Item no:
Product type
Ultrasonic sensor
Max. operating voltage
30 V
Outputs
PNP
Switching distance (max.)
350 mm
Model
Ultrasound
Datasheet (PDF)
Highlights & Details
Balluff BUS005M Cylindrical version with M30 thread and analog or digital output
- Connection: Connector, M12x1 connector, 5-pin
- Design: Ø 30 mm
- Switching output PNP NO/NC
- Housing material: Nickel-plated brass
- PBT, TPU
- Analogue output: Analogue, voltage/analogue, current 0…10 V/4…20 mA
Technical specifications
- Main features:Active surface, material: PU foam/epoxy resin/glass
- Analogue output: Analogue, voltage/analogue, current 0…10 V/4…20 mA
- Connection: Connector, M12x1 connector, 5-pin
- Design: Ø 30 mm
- Operating voltage Ub 9...30 VDC
- Housing material: Nickel-plated brass
- PBT, TPU
- Range 65...600 mm
- Switching output PNP NO/NC
- Switching frequency 12 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Repeatability ± 0.15 % FS
- Additional features:
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 9...30 VDC
- Switching frequency 12 Hz
- Connection: M12x1 connector, 5-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Rated switching distance Sn: 350 mm
- Output current max. 200 mA.
- Display: Distance value - segment display
- Hysteresis H max. 5 mm
- Application: Distance measurement
- Measurement range 65...600 mm
- Input function: Synchronization signal
- Power consumption max. 80 mA
- Synchronisation: Internal, max. of 10 sensors
- Ultrasound frequency 400 kHz
- Resolution ≤ 0,025 mm
- Repeatability ± 0.15 % FS
- Load resistance RL max. (Analogue I): 500 ohms at UB > 20 V|100 ohms at UB < 20 V
- Load resistance RL min. (Analogue U): 100 kOhm at UB > 15 V
- Product type
Ultrasonic sensor
- Type
BUS005M
- Min. operating voltage
9 V
- Max. operating voltage
30 V
- Operating voltage
9 - 30 V
- Outputs
PNP
- Switching distance (max.)
350 mm
- Switching frequency
12 Hz
- Model
Ultrasound
- Connector
M12 plug (5-pin)
- Size
M30
- Material properties
nickel plated
- Enclosure material
Brass
- Contact type
1 PNP
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
94.5 mm
- (Ø)
30 m
- Dim
(Ø x L) 30 m x 94.5 mm
- Max. power rating per slot
200 mA
- Nominal voltage
30 V
- Operating voltage
24
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416273 BALLUFF Ultrasonic sensor Ultrasound M30 PNP BUS005M
User & Safety Instructions
User & Safety Instructions 3416273 BALLUFF Ultrasonic sensor Ultrasound M30 PNP BUS005M
Description
Position detection or object detection in solid, powder and liquid media - contactless control of presence and counting objects. They can be used universally, independent of color and surface finish. Fog, dust or dirt are no problem for you. Their high resolution and small blind zones ensure extreme precision. Ultrasonic sensors differ with their output signal. Design=Ø 30 mm, analogue output=analogue, voltage/analogue, current 0.10 V/4.20 mA linear increasing/falling, switching output=PNP NO/NC(NO/NC), connection=connector, M12x1 connector, 5-pole, Housing material=brass PBT, TPU, Active surface, material=PU-foam/epoxy resin/glass, range=65...600 mm, Switching frequency=12 Hz, Approval/conformity=cULus LISTEDCEEACWEEE, ambient temperature=-25...70 °C, protection class=IP67, repetition accuracy=± 0.15 % FS, operating voltage Ub=9...30 VDC
