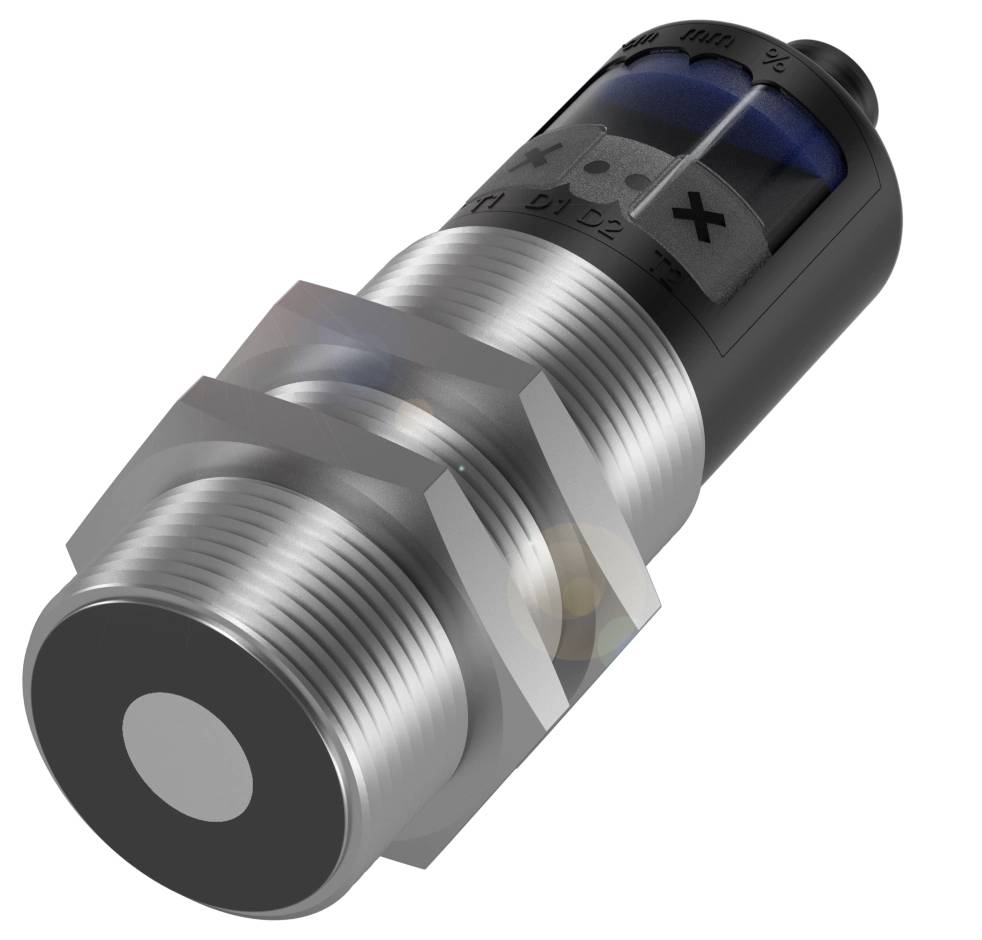

BALLUFF Ultrasonic sensor Ultrasound NPN BUS005P
EAN:
Part number:
Item no:
Product type
Ultrasonic sensor
Max. operating voltage
30 V
Outputs
NPN
Switching distance (max.)
350 mm
Model
Ultrasound
Datasheet (PDF)
Highlights & Details
Balluff BUS005P Cylindrical version with M30 thread and analog or digital output
- Connection: Connector, M12x1 connector
- Range 65...600 mm
- NPN NO/NC switched output
- Housing material: Nickel-plated brass
- PBT, TPU
- Active surface, material: PU foam/epoxy resin/glass
Technical specifications
- Main features:Active surface, material: PU foam/epoxy resin/glass
- Connection: Connector, M12x1 connector
- Operating voltage Ub 9...30 VDC
- Housing material: Nickel-plated brass
- PBT, TPU
- Range 65...600 mm
- NPN NO/NC switched output
- Switching frequency 12 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Repeatability ± 0.15 % FS
- Additional features:
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 9...30 VDC
- Switching frequency 12 Hz
- Connection M12x1 plug
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Rated switching distance Sn: 350 mm
- Output current max. 200 mA.
- Setup option: Multiplex|Synchronisation ON/OFF|Synchronous/Multiplex mode|Light/Dark/OFF segment|Filter thickness (10 levels)|Response delay 0...20 s|Area Foreground fade-out|Multiplex sensor address|Sensor adjustment (calibration)|Temperature compensation ON/OFF|Measured value filter|Hysteresis|Capturing range (3 levels)|Programming mode Display/Button|Factory setting (reset)|Key lock ON/OFF|Operating mode|Operating mode|Switching distance|2 values|Normally closed/normally open contact
- M30M1 series
- Display: Distance value - segment display|Output function - LED yellow|LED green: Operating voltage|Sensor settings - Segment-|Display
- Adjuster: Button (2x)
- Hysteresis H max. 5 mm
- Application: Object detection
- Measurement range 65...600 mm
- Operating mode: Reflection sensor|Reflection sensor (switching point)|Reflection sensor (window)
- Input function: Synchronization signal
- Power consumption max. 80 mA
- Synchronisation: Internal, max. of 10 sensors
- Ultrasound frequency 400 kHz
- Resolution ≤ 0,025 mm
- Repeatability ± 0.15 % FS
- Product type
Ultrasonic sensor
- Type
BUS005P
- Min. operating voltage
9 V
- Max. operating voltage
30 V
- Operating voltage
9 - 30 V
- Outputs
NPN
- Switching distance (max.)
350 mm
- Switching frequency
12 Hz
- Model
Ultrasound
- Connector
Plug
- Enclosure material
Brass
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Max. power rating per slot
200 mA
- Nominal voltage
30 V
- Operating voltage
24
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416414 BALLUFF Ultrasonic sensor Ultrasound NPN BUS005P
User & Safety Instructions
User & Safety Instructions 3416414 BALLUFF Ultrasonic sensor Ultrasound NPN BUS005P
Description
Contact-free measurement of fill levels, heights or sag, they can be used universally independent of color and surface texture. High resolution, large ranges and small blind zones guarantee extreme precision. The ultrasound sensors differ in their voltage or current output and versions with an additional switching output. Switch output = NPN NO/NC (NO/NC), connection = plug connector, M12x1 plug, housing material = brass PBT, TPU, Active surface, material=PU-foam/epoxy resin/glass, range=65...600 mm, switching frequency=12 Hz, approval/conformity=cULus LISTEDCEEACWEEE, Ambient temperature=-25...70 °C, protection class=IP67, repetition accuracy=± 0.15 % FS, operating voltage Ub=9...30 VDC
