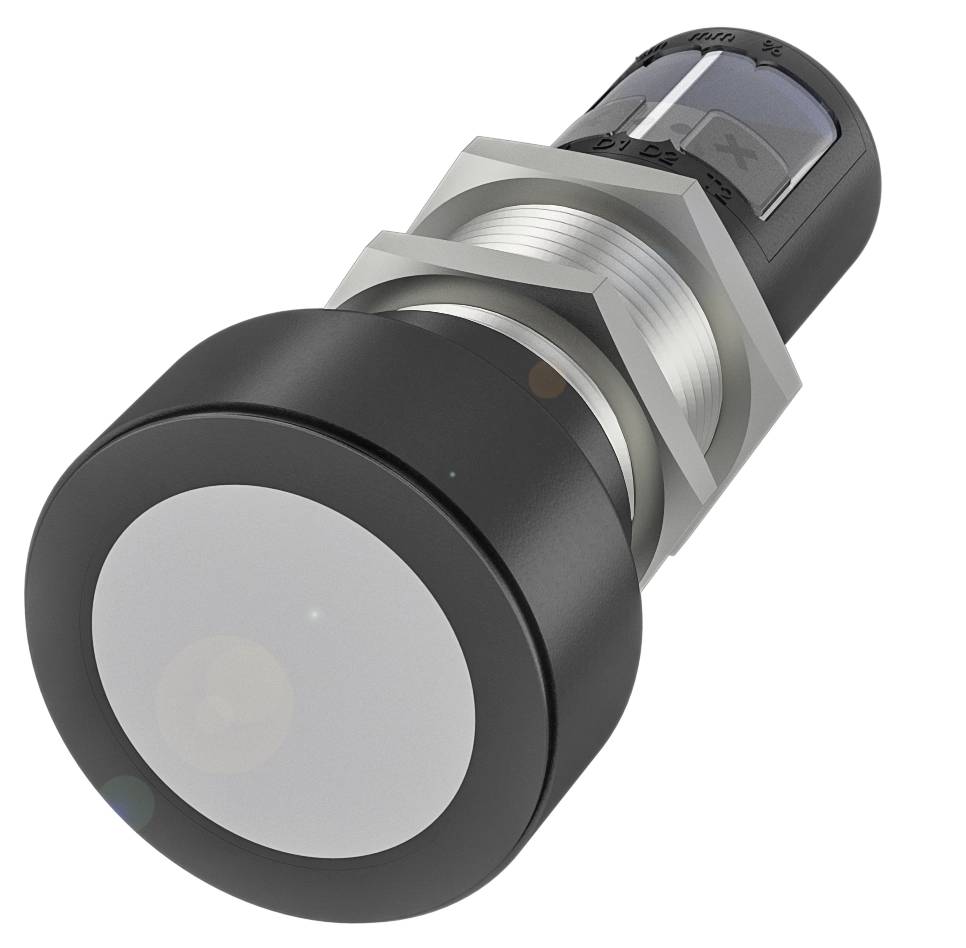

BALLUFF Ultrasonic sensor Ultrasound PNP BUS003P Piece
EAN:
Part number:
Item no:
Packaging type
Piece
Product type
Ultrasonic sensor
Max. operating voltage
30 V
Outputs
PNP
Switching distance (max.)
3400 mm
Datasheet (PDF)
Highlights & Details
Balluff BUS003P Cylindrical version with M30 thread and analog or digital output
- Connection: Connector, M12x1 connector, 5-pin
- Design: Ø 47.5 mm
- Switching output PNP NO/NC
- Housing material: Nickel-plated brass
- PBT, TPU
- Active surface, material: PU foam/epoxy resin/glass
Technical specifications
- Main features:Active surface, material: PU foam/epoxy resin/glass
- Connection: Connector, M12x1 connector, 5-pin
- Design: Ø 47.5 mm
- Operating voltage Ub 9...30 VDC
- Housing material: Nickel-plated brass
- PBT, TPU
- Range 350...5000 mm
- Switching output PNP NO/NC
- Switching frequency 4 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Repeatability ± 0.15 % FS
- Additional features:
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 9...30 VDC
- Switching frequency 4 Hz
- Connection: M12x1 connector, 5-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Rated switching distance Sn: 3400 mm
- Output current max. 200 mA.
- Setup option: Multiplex|Synchronisation ON/OFF|Synchronous/Multiplex mode|Light/Dark/OFF segment|Filter thickness (10 levels)|Response delay 0...20 s|Area Foreground fade-out|Multiplex sensor address|Sensor adjustment (calibration)|Temperature compensation ON/OFF|Measured value filter|Hysteresis|Capturing range (3 levels)|Programming mode Display/Button|Factory setting (reset)|Key lock ON/OFF|Operating mode|Operating mode|Switching distance|2 values|Normally closed/normally open contact
- M30M1 series
- Display: Distance value - segment display|Output function - LED yellow|LED green: Operating voltage|Sensor settings - Segment-|Display
- Adjuster: Button (2x)
- Hysteresis H max. 50 mm
- Application: Object detection
- Measurement range 350...5000 mm
- Operating mode: Reflection sensor|Reflection sensor (switching point)|Reflection sensor (window)
- Input function: Synchronization signal
- Power consumption max. 80 mA
- Synchronisation: Internal, max. of 10 sensors
- Ultrasound frequency 120 kHz
- Resolution ≤ 0,180 mm
- Repeatability ± 0.15 % FS
- Packaging type
Piece
- Product type
Ultrasonic sensor
- Type
BUS003P
- Min. operating voltage
9 V
- Max. operating voltage
30 V
- Operating voltage
9 - 30 V
- Outputs
PNP
- Switching distance (max.)
3400 mm
- Switching frequency
4 Hz
- Model
Ultrasound
- Connector
M12 plug (5-pin)
- Material properties
nickel plated
- Enclosure material
Brass
- Contact type
1 PNP
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
113.2 mm
- (Ø)
47.5 m
- Dim
(Ø x L) 47.5 m x 113.2 mm
- Max. power rating per slot
200 mA
- Nominal voltage
30 V
- Operating voltage
24
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416367 BALLUFF Ultrasonic sensor Ultrasound PNP BUS003P Piece
User & Safety Instructions
User & Safety Instructions 3416367 BALLUFF Ultrasonic sensor Ultrasound PNP BUS003P Piece
Description
Contact-free measurement of fill levels, heights or sag, they can be used universally independent of color and surface texture. High resolution, large ranges and small blind zones guarantee extreme precision. The ultrasound sensors differ in their voltage or current output and versions with an additional switching output. Design=Ø 47.5 mm, switch output=PNP NO/NC (NO/NC), connection=connector, M12x1 connector, 5-pole, Housing material=brass PBT, TPU, Active surface, material=PU-foam/epoxy resin/glass, range=350...5000 mm, Switching frequency=4 Hz, Approval/conformity=cULus LISTEDCEEACWEEE, ambient temperature=-25...70 °C, protection class=IP67, repetition accuracy=± 0.15 % FS, operating voltage Ub=9...30 VDC
