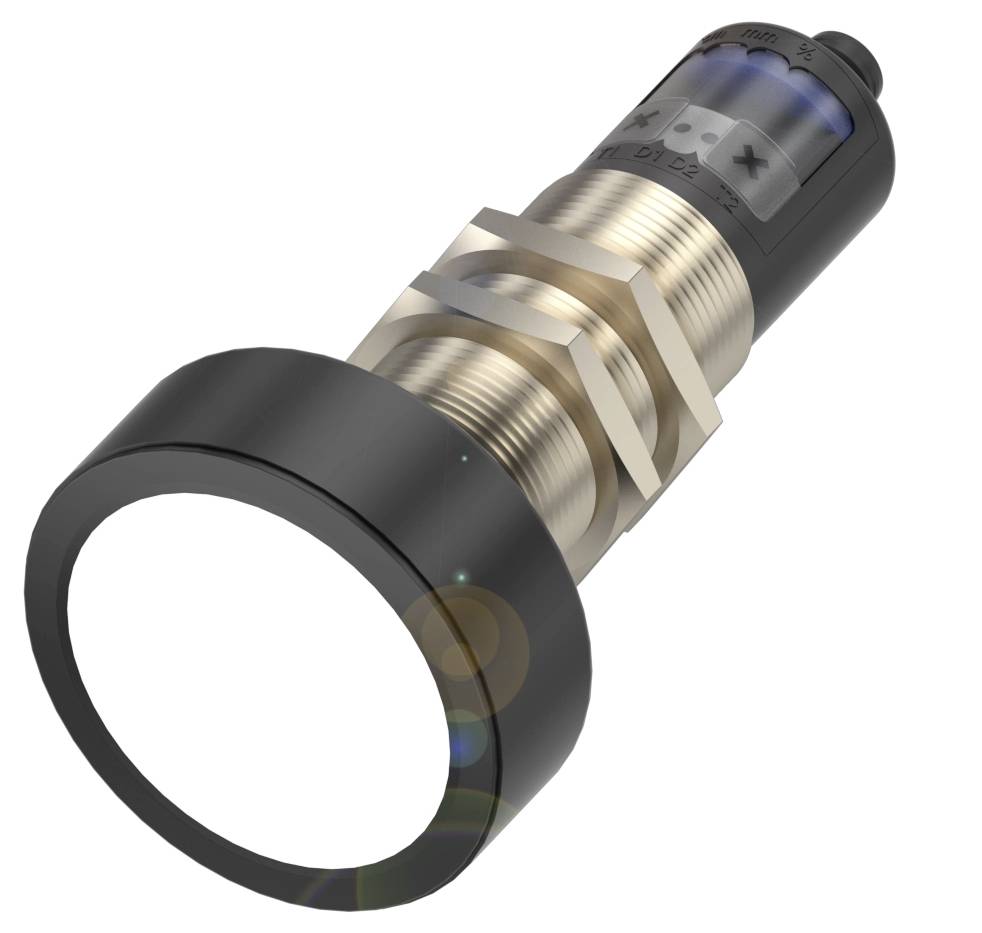

BALLUFF Ultrasonic sensor Ultrasound PNP BUS0047
EAN:
Part number:
Item no:
Product type
Ultrasonic sensor
Max. operating voltage
30 V
Outputs
PNP
Switching distance (max.)
6000 mm
Model
Ultrasound
Datasheet (PDF)
Highlights & Details
Balluff BUS0047 Cylindrical design with M30 thread and analog or digital output
- Connection: Connector, M12x1 connector, 5-pin
- Design: Ø 65 mm
- Switching output PNP NO/NC
- Housing material: Stainless steel
- PBT, TPU
- Active surface, material: PU foam/epoxy resin/glass
Technical specifications
- Main features:Active surface, material: PU foam/epoxy resin/glass
- Connection: Connector, M12x1 connector, 5-pin
- Design: Ø 65 mm
- Operating voltage Ub 9...30 VDC
- Housing material: Stainless steel
- PBT, TPU
- Range 600...8000 mm
- Switching output PNP NO/NC
- Switching frequency 3 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Repeatability ± 0.15 % FS
- Additional features:
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 9...30 VDC
- Switching frequency 3 Hz
- Connection: M12x1 connector, 5-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Rated switching distance Sn: 6000 mm
- Output current max. 200 mA.
- Setting option: Multiplex|Synchronisation ON/OFF|Synchronous/Multiplex operation|Segment light/dark/off|Filter thickness (10 levels)|Response delay 0...20 s|Area Foreground fade-out|Multiplex sensor address|Sensor adjustment (calibration)|Temperature compensation on/off|Measured value filter|Hysteresis|Capturing range (3 levels)|Programming mode display/button|Factory setting|Mode|Switching mode|Switching distance, 2 values|Normally/normally open contact/closed contact|Key lock off
- M30E1 series
- Display: Distance value - segment display|Output function - LED yellow|LED green: Operating voltage|Sensor settings - Segment-|Display
- Adjuster: Button (2x)
- Hysteresis H max. 100 mm
- Application: Object detection
- Measurement range 600...8000 mm
- Operating mode: Reflection sensor (switching point)|Reflection sensor (window)|Reflection sensor
- Input function: Synchronization signal
- Power consumption max. 80 mA
- Synchronisation: Internal, max. of 10 sensors
- Ultrasound frequency 80 kHz
- Resolution ≤ 0,180 mm
- Repeatability ± 0.15 % FS
- Product type
Ultrasonic sensor
- Type
BUS0047
- Min. operating voltage
9 V
- Max. operating voltage
30 V
- Operating voltage
9 - 30 V
- Outputs
PNP
- Switching distance (max.)
6000 mm
- Switching frequency
3 Hz
- Model
Ultrasound
- Connector
M12 plug (5-pin)
- Enclosure material
Stainless steel
- Contact type
1 PNP
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
116.2 mm
- (Ø)
65 m
- Dim
(Ø x L) 65 m x 116.2 mm
- Max. power rating per slot
200 mA
- Nominal voltage
30 V
- Operating voltage
24
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416438 BALLUFF Ultrasonic sensor Ultrasound PNP BUS0047
User & Safety Instructions
User & Safety Instructions 3416438 BALLUFF Ultrasonic sensor Ultrasound PNP BUS0047
Description
Contact-free measurement of fill levels, heights or sag, they can be used universally independent of color and surface texture. High resolution, large ranges and small blind zones guarantee extreme precision. The ultrasound sensors differ in their voltage or current output and versions with an additional switching output. Design=Ø 65 mm, switch output=PNP NO/NC (NO/NC), connection=connector, M12x1 connector, 5-pole, Housing material=stainless steel PBT, TPU, active surface, material=PU-foam/epoxy resin/glass, range=600...8000 mm, Switching frequency=3 Hz, Approval/conformity=cULus LISTEDCEEACWEEE, ambient temperature=-25...70 °C, protection class=IP67, repetition accuracy=± 0.15 % FS, operating voltage Ub=9...30 VDC
