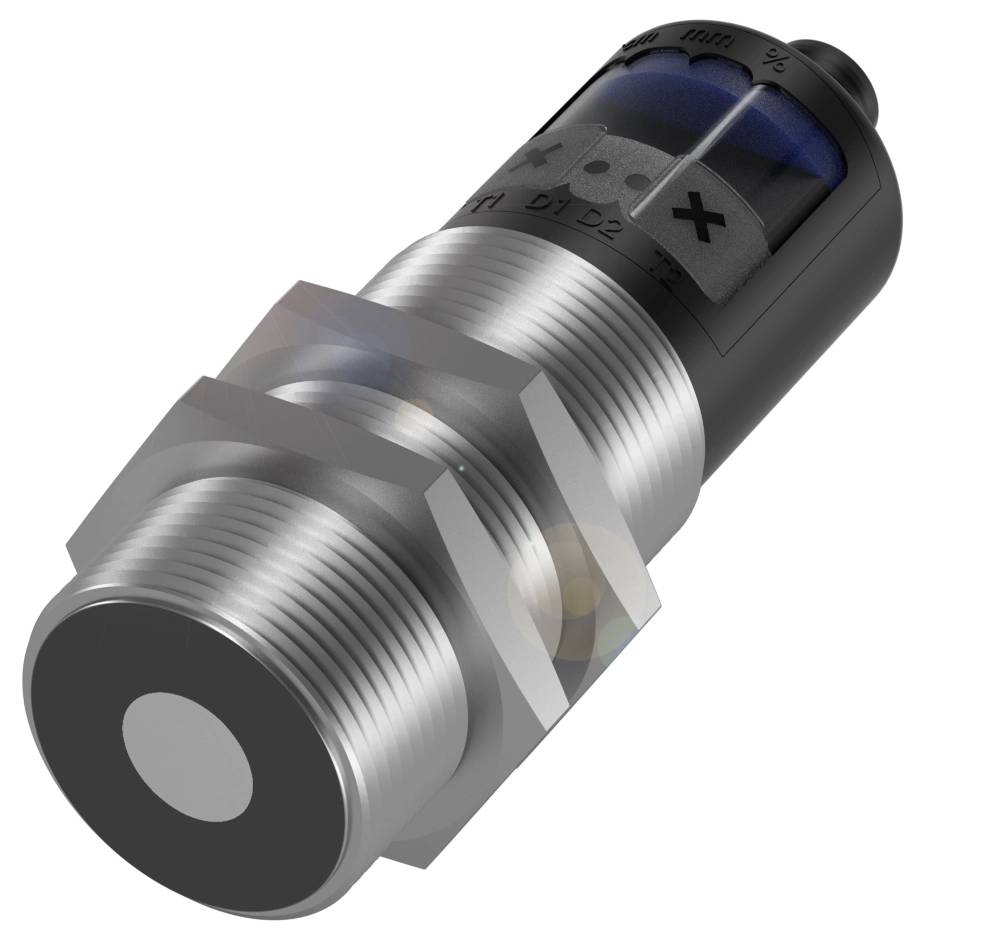

BALLUFF Ultrasonic sensor Ultrasound PNP BUS005T
EAN:
Part number:
Item no:
Product type
Ultrasonic sensor
Max. operating voltage
30 V
Outputs
PNP
Switching distance (max.)
350 mm
Model
Ultrasound
Datasheet (PDF)
Highlights & Details
Balluff BUS005T Cylindrical version with M30 thread and analog or digital output
- Connection: Connector, M12x1 connector, 5-pin
- Design: Ø 30 mm
- Switching output PNP NO/NC
- Housing material: Stainless steel
- PBT, TPU
- Active surface, material: PU foam/epoxy resin/glass
Technical specifications
- Main features:Active surface, material: PU foam/epoxy resin/glass
- Connection: Connector, M12x1 connector, 5-pin
- Design: Ø 30 mm
- Operating voltage Ub 9...30 VDC
- Housing material: Stainless steel
- PBT, TPU
- Range 65...600 mm
- Switching output PNP NO/NC
- Switching frequency 12 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Repeatability ± 0.15 % FS
- Additional features:
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 9...30 VDC
- Switching frequency 12 Hz
- Connection: M12x1 connector, 5-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Rated switching distance Sn: 350 mm
- Output current max. 200 mA.
- Setting option: Multiplex|Synchronisation ON/OFF|Synchronous/Multiplex operation|Segment light/dark/off|Filter thickness (10 levels)|Response delay 0...20 s|Area Foreground fade-out|Multiplex sensor address|Sensor adjustment (calibration)|Temperature compensation on/off|Measured value filter|Hysteresis|Capturing range (3 levels)|Programming mode display/button|Factory setting|Mode|Switching mode|Switching distance, 2 values|Normally/normally open contact/closed contact|Key lock off
- M30E1 series
- Display: Distance value - segment display|Output function - LED yellow|LED green: Operating voltage|Sensor settings - Segment-|Display
- Adjuster: Button (2x)
- Hysteresis H max. 5 mm
- Application: Object detection
- Measurement range 65...600 mm
- Operating mode: Reflection sensor (switching point)|Reflection sensor (window)|Reflection sensor
- Input function: Synchronization signal
- Power consumption max. 80 mA
- Synchronisation: Internal, max. of 10 sensors
- Ultrasound frequency 400 kHz
- Resolution ≤ 0,025 mm
- Repeatability ± 0.15 % FS
- Product type
Ultrasonic sensor
- Type
BUS005T
- Min. operating voltage
9 V
- Max. operating voltage
30 V
- Operating voltage
9 - 30 V
- Outputs
PNP
- Switching distance (max.)
350 mm
- Switching frequency
12 Hz
- Model
Ultrasound
- Connector
M12 plug (5-pin)
- Enclosure material
Stainless steel
- Contact type
1 PNP
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
94.5 mm
- (Ø)
30 m
- Dim
(Ø x L) 30 m x 94.5 mm
- Max. power rating per slot
200 mA
- Nominal voltage
30 V
- Operating voltage
24
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416389 BALLUFF Ultrasonic sensor Ultrasound PNP BUS005T
User & Safety Instructions
User & Safety Instructions 3416389 BALLUFF Ultrasonic sensor Ultrasound PNP BUS005T
Description
Contact-free measurement of fill levels, heights or sag, they can be used universally independent of color and surface texture. High resolution, large ranges and small blind zones guarantee extreme precision. The ultrasound sensors differ in their voltage or current output and versions with an additional switching output. Design=Ø 30 mm, switch output=PNP NO/NC (NO/NC), connection=connector, M12x1 connector, 5-pole, Housing material=stainless steel PBT, TPU, active surface, material=PU-foam/epoxy resin/glass, range=65...600 mm, Switching frequency=12 Hz, Approval/conformity=cULus LISTEDCEEACWEEE, ambient temperature=-25...70 °C, protection class=IP67, repetition accuracy=± 0.15 % FS, operating voltage Ub=9...30 VDC
