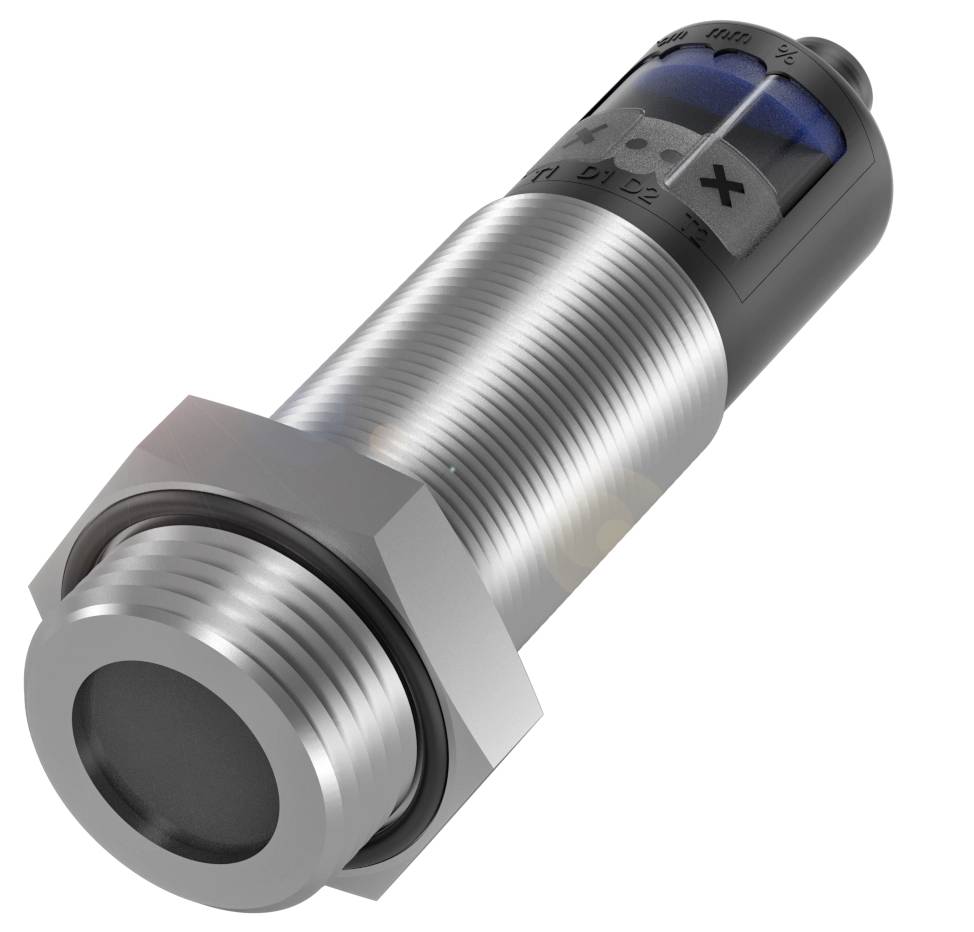

BALLUFF Ultrasonic sensor Ultrasound PNP BUS005U
EAN:
Part number:
Item no:
Product type
Ultrasonic sensor
Max. operating voltage
30 V
Outputs
PNP
Switching distance (max.)
1300 mm
Model
Ultrasound
Datasheet (PDF)
Highlights & Details
Balluff BUS005U Cylindrical version with M30 thread for high pressure resistant applications
- Connection: Connector, M12x1 connector, 5-pin
- Design: Ø 47 mm
- Switching output: 2x PNP NO/NC
- Housing material: Stainless steel (1.4571)
- PBT, TPU
- Process connection G 1"
Technical specifications
- Main features:Active surface, material: PTFE
- Connection: Connector, M12x1 connector, 5-pin
- Design: Ø 47 mm
- Operating voltage Ub 9...30 VDC
- Compressive strength max. 6 bar
- Housing material: Stainless steel (1.4571)
- PBT, TPU
- Process connection G 1"
- Range 200...5000 mm
- Switching output: 2x PNP NO/NC
- Switching frequency 5 Hz
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Repeatability ± 0.15 % FS
- Additional features:
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 9...30 VDC
- Switching frequency 5 Hz
- Connection: M12x1 connector, 5-pin
- Short-circuit protection: Yes
- Rated switching distance Sn: 1300 mm
- Output current max. 200 mA.
- Setup options: Teach-in mode display/button|Sensitivity in excess pressure|Operating mode|Switching distance, 2 values|NO/NC|Key lock on/off|Factory setting (reset)|Hysteresis|Measured value filter|Analog output U/I/Auto/manual|Synchronization on/off|Temperature compensation on/off|Sensor adjustment (calibration)|Range foreground fade-out|Response delay 0...20 s|Filter thickness (10 levels)|Light/dark/off
- M30E2 series
- Display: Distance value - segment display|Output function - LED yellow|LED green: Operating voltage|Sensor settings - Segment-|Display
- Adjuster: Button (2x)
- Hysteresis H max. 20 mm
- Application: Object detection
- Measurement range 200...5000 mm
- Operating mode: Reflection sensor (switching point)|Reflection sensor (window)|Reflection sensor
- Input function: Synchronization signal
- Power consumption max. 80 mA
- Synchronisation: Internal, max. of 10 sensors
- Ultrasound frequency 180 kHz
- Resolution ≤ 0,180 mm
- Repeatability ± 0.15 % FS
- Reverse polarity protected detection range/measuring range: Yes
- Product type
Ultrasonic sensor
- Type
BUS005U
- Min. operating voltage
9 V
- Max. operating voltage
30 V
- Operating voltage
9 - 30 V
- Outputs
PNP
- Switching distance (max.)
1300 mm
- Switching frequency
5 Hz
- Model
Ultrasound
- Features
acid-resistant
- Connector
M12 plug (5-pin)
- Enclosure material
Stainless steel
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
114.5 mm
- (Ø)
47 m
- Dim
(Ø x L) 47 m x 114.5 mm
- Max. power rating per slot
200 mA
- Nominal voltage
30 V
- Operating voltage
24
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416390 BALLUFF Ultrasonic sensor Ultrasound PNP BUS005U
User & Safety Instructions
User & Safety Instructions 3416390 BALLUFF Ultrasonic sensor Ultrasound PNP BUS005U
Description
Chemically resistant ultrasound sensors measure the fill levels contact-free both in normal pressure and with an overpressure of up to 6 bar in tanks and containers. Through the combination of switch and analogue output you can even measure the level and run over protection at the same time. A PTFE diaphragm and the stainless steel housing protect the sensor from aggressive liquids in all applications. Design=Ø 47 mm, process connection=G 1", switching output=2x PNP NO/NC contact (NO/NC), connection=connector, M12x1 connector, 5-pole, housing material=stainless steel (1.4571) PBT, TPU, active surface, material=PTFE, range=200...5000 mm, switching frequency=5 Hz, Approval/conformity=CEWEEE, ambient temperature=-25...70 °C, protection class=IP67, repetition accuracy=± 0.15 % FS, compressive strength max.=6 bar, operating voltage Ub=9...30 VDC
