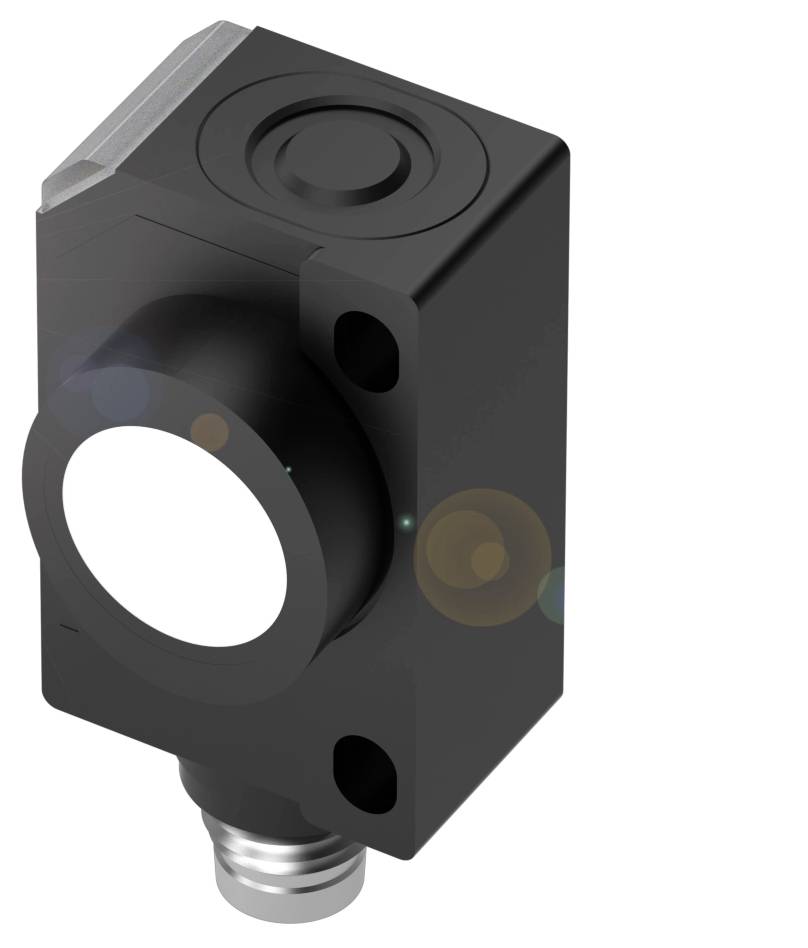

BALLUFF Ultrasonic sensor Ultrasound Voltage (analogue) BUS005E Single
EAN:
Part number:
Item no:
Packaging type
Single
Product type
Ultrasonic sensor
Max. operating voltage
30 V
Outputs
Voltage (analogue)
Switching distance (max.)
700 mm
Datasheet (PDF)
Highlights & Details
BALUFF BUS005E Cubic design and analogue or digital output
- Connection: Plug connector, M8x1 plug, 4-pin
- Design: Square-shaped
- ABS casing material
- Active surface, material: PU foam/epoxy resin/glass
- Analog output: Analog, voltage 0…10 V.
Technical specifications
- Main features:Active surface, material: PU foam/epoxy resin/glass
- Analog output: Analog, voltage 0…10 V.
- Connection: Plug connector, M8x1 plug, 4-pin
- Design: Square-shaped
- Operating voltage Ub 20...30 VDC
- ABS casing material
- Range 120...1000 mm
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Repeatability ± 0.15 % FS
- Additional features:
- Dimensions 20.1 x 42.5 x 18 mm
- Mounting: M3 screw
- Rated operating voltage Ue DC 24 V
- Operating voltage Ub 20...30 VDC
- M8x1 connection, 4-pin
- Short-circuit protection: Yes
- Reverse polarity protection: Yes
- Rated switching distance Sn: 700 mm
- MTTF (40 °C) 1657 a
- Active surface, material: PU foam/epoxy resin/glass
- ABS casing material
- Protection class IP67
- Ambient temperature: -25 to 70 °C
- Setting option: Key lock on/off|factory setting (reset)|curve rising/falling
- R06K1 series
- Display: Operating mode - LED green, flashes|LED green: Operating voltage|Object in range - LED yellow
- Adjuster: Button
- Storage temperature: -40...85 °C
- Application: Distance measurement
- Measurement range 120...1000 mm
- Operating mode: Analogue measurement (characteristic curve)
- Input function: Synchronization signal
- Power consumption max. 35 mA
- Synchronisation: External, any number of sensors
- Ultrasound frequency 300 kHz
- Resolution ≤ 0,037 mm
- Repeatability ± 0.15 % FS
- Analog output: Analog, voltage 0…10 V.
- Output characteristic: Linear ascending/descending
- Load resistance RL min. (Analogue U): 100 kOhm
- Packaging type
Single
- Product type
Ultrasonic sensor
- Type
BUS005E
- Min. operating voltage
20 V
- Max. operating voltage
30 V
- Operating voltage
20 - 30 V
- Outputs
Voltage (analogue)
- Switching distance (max.)
700 mm
- Model
Ultrasound
- Connector
Plug
- Enclosure material
Acrylonitrile butadiene styrene
IP67
- Min. temperature
-25 °C
- Max. temperature
70 °C
- Length
18.0 mm
- Width
20.1 mm
- Height
42.5 mm
- Dim
(L x W x H) 18.0 x 20.1 x 42.5 mm
- Material
Acrylonitrile butadiene styrene
- Nominal voltage
30 V
- Operating voltage
24
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3416304 BALLUFF Ultrasonic sensor Ultrasound Voltage (analogue) BUS005E Single
User & Safety Instructions
User & Safety Instructions 3416304 BALLUFF Ultrasonic sensor Ultrasound Voltage (analogue) BUS005E Single
Description
Position detection or object detection in solid, powder and liquid media - contactless control of presence and counting objects. They can be used universally, independent of color and surface finish. Fog, dust or dirt are no problem for you. Their high resolution and small blind zones ensure extreme precision. Ultrasonic sensors differ with their output signal. Design = rectangular, analogue output = analogue, voltage 0.10 V, connection = plug connector, M8x1 plug, 4-pole, housing material=ABS, active surface, material=PU-foam/epoxy resin/glass, range=120...1000 mm, Approval/conformity=CEEACWEEE, ambient temperature=-25...70 °C, protection class=IP67, repetition accuracy=± 0.15 % FS, operating voltage Ub=20...30 VDC
