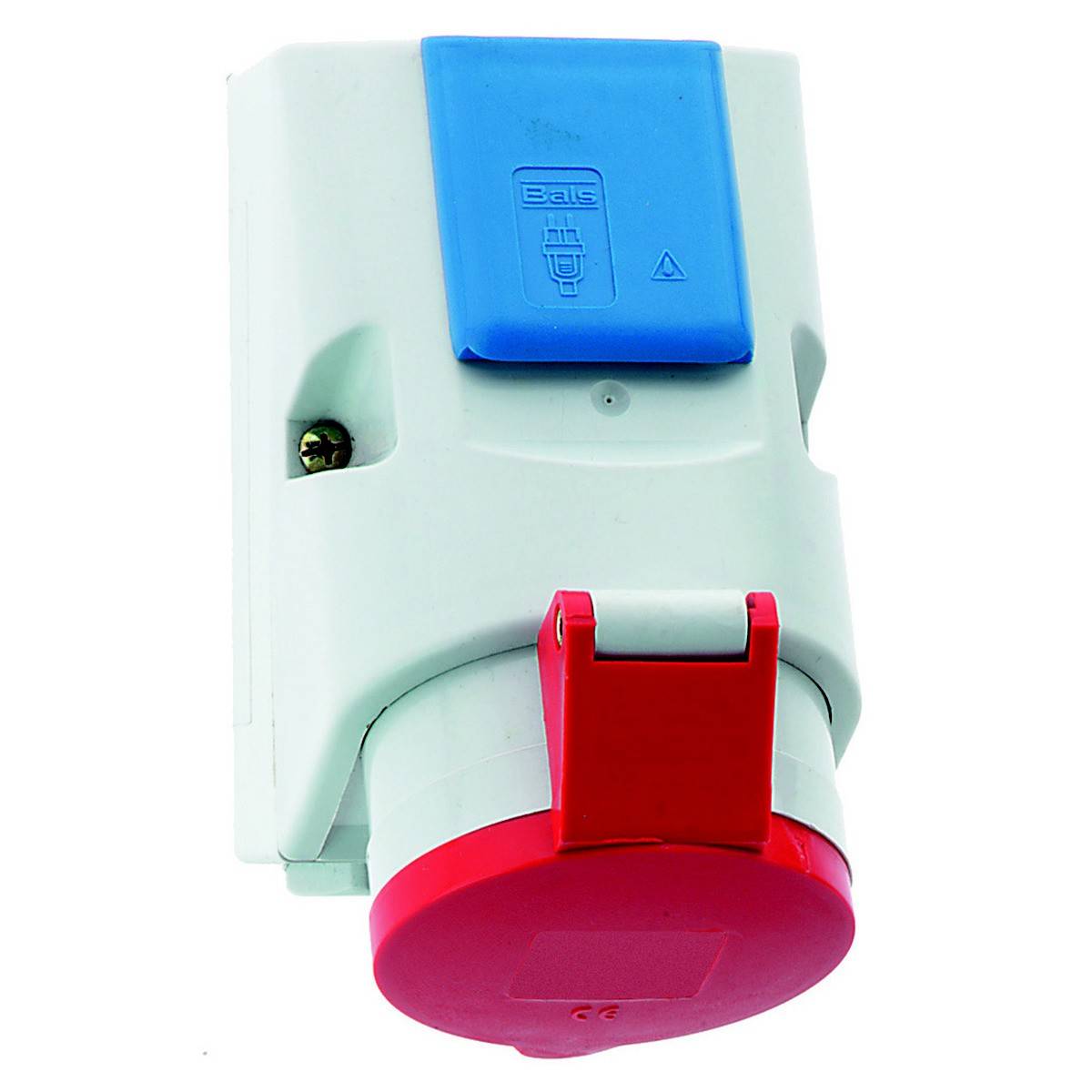

Bals Elektrotechnik 1011 1011 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: Without
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 1
- Security: Other
- FI-circuit breaker: Without
- Housing material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Feed/connection possibility: Other
- Diameter entrance: M25
- Cable length 0 m
- Handling: Wall-mounting
- Protection type (IP) IP44
- Military version: No.
- Colour: Red
- Height: 157 mm
- Width 83 mm
- Depth: 136 mm
- Product type
CEE wall socket
- Type A
CEE plug
- Type B
CEE plug
IP44
- Factory colour
Multicolour
- Dim
(W x H x D) 83.00 x 157.00 x 136.00 mm
- Width
83.00 mm
- Height
157.00 mm
- Content
1 pc(s)
- Depth
136.00 mm
- Material
Plastic
- Weight
0
Red
83
157 mm
136 mm
0 m
Plastic
Untreated
CuZn
IP44
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147122 Bals Elektrotechnik 1011 1011 CEE wall socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147122 Bals Elektrotechnik 1011 1011 CEE wall socket 1 pc(s)
Description
Combined wall socket
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Casing size: 126x83 mm (HxB)
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 6.0 sqmm
Housing material: Plastic
Connection technology: With screw terminal
Cable entry: 1xM25 top, 2xM25 below
Colour: Hinged lid red RAL 3000, lower part gray RAL 7035, upper part of housing gray RAL 7035, collar gray RAL 7035

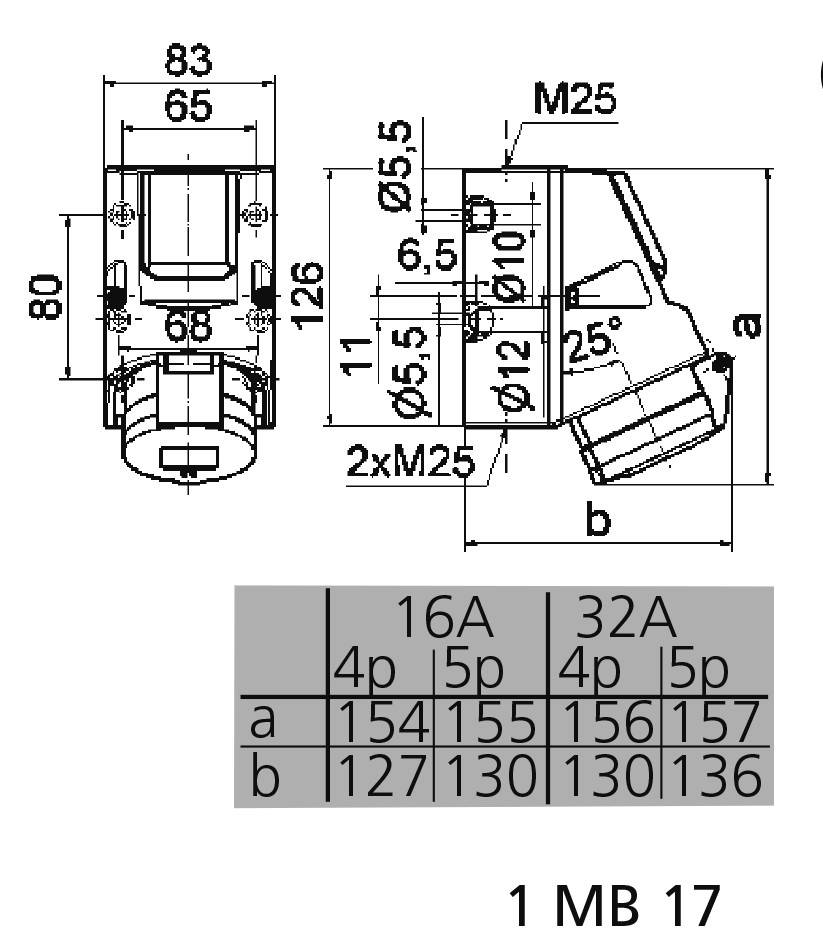

Device height: 157 mm, device width: 83 mm, device depth: 136 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom, With integrated earthing contact socket 16A 250V AC German system, In the bottom of the housing there are 4 mounting holes for breaking off, With fuse insert 6.3 A, With fuse socket 5x20 mm DIN 41671, type 1862, With terminals 3x6 mm² and wired ready for connection
This text is machine translated.
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Casing size: 126x83 mm (HxB)
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 6.0 sqmm
Housing material: Plastic
Connection technology: With screw terminal
Cable entry: 1xM25 top, 2xM25 below
Colour: Hinged lid red RAL 3000, lower part gray RAL 7035, upper part of housing gray RAL 7035, collar gray RAL 7035
Device height: 157 mm, device width: 83 mm, device depth: 136 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom, With integrated earthing contact socket 16A 250V AC German system, In the bottom of the housing there are 4 mounting holes for breaking off, With fuse insert 6.3 A, With fuse socket 5x20 mm DIN 41671, type 1862, With terminals 3x6 mm² and wired ready for connection
This text is machine translated.
