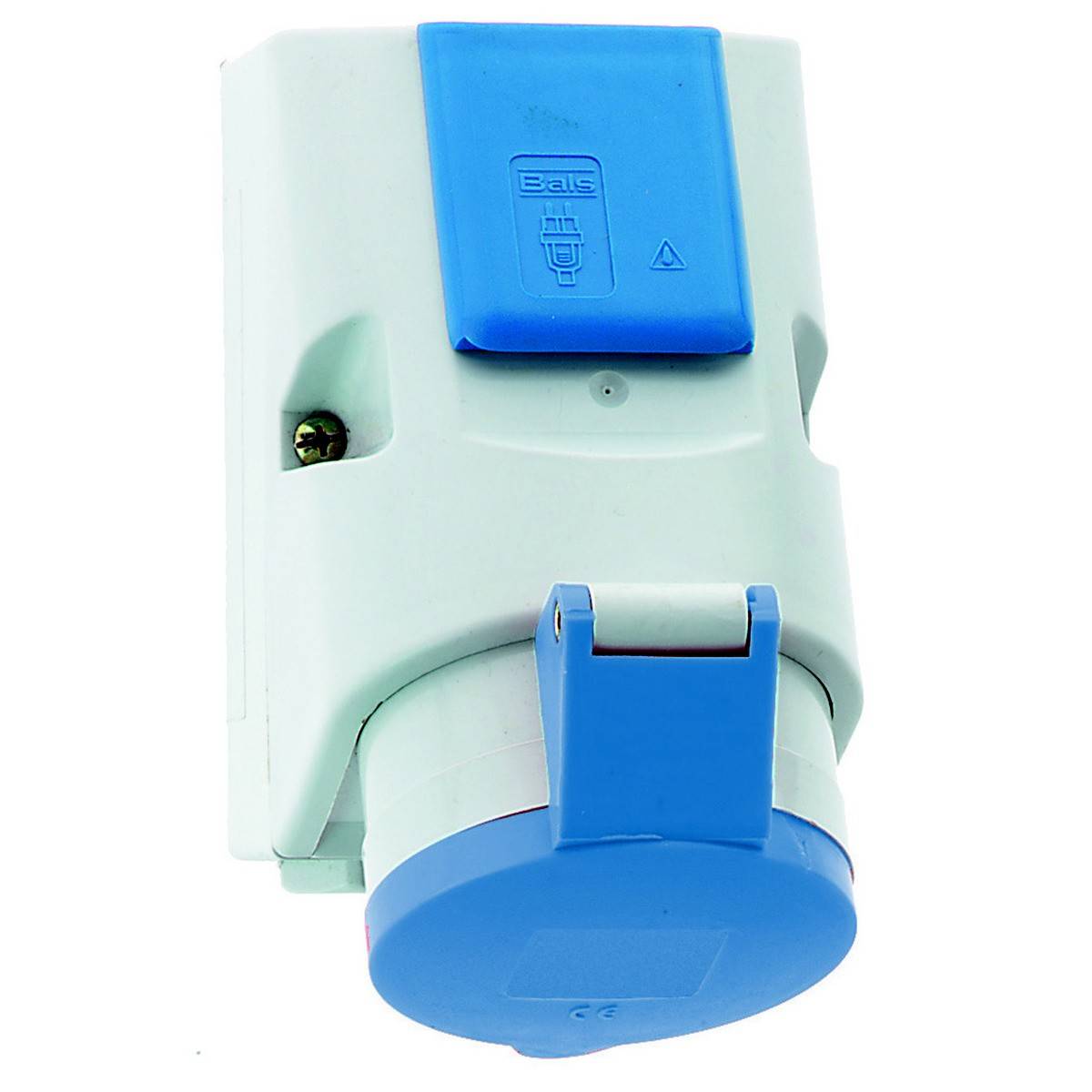

Bals Elektrotechnik 1017 1017 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 1x16A XP xxxV
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Other fixtures and/or empty spaces: 1
- Security: Other
- FI-circuit breaker: Without
- Housing material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Feed/connection possibility: Other
- Diameter entrance: M25
- Cable length 0 m
- Handling: Wall-mounting
- Protection type (IP) IP44
- Military version: No.
- Colour: grey
- Height: 157 mm
- Width 83 mm
- Depth: 128 mm
- Product type
CEE wall socket
- Type B
PG socket
- Cores
4
IP44
- Dim
(W x H x D) 83.00 x 157.00 x 128.00 mm
- Width
83.00 mm
- Height
157.00 mm
- No. of PG sockets
1
- Content
1 pc(s)
3680 W
- Number of pins
4
- Depth
128.00 mm
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147148 Bals Elektrotechnik 1017 1017 CEE wall socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147148 Bals Elektrotechnik 1017 1017 CEE wall socket 1 pc(s)
Description
Combined wall socket
16A 4P (3P+PE) 230V (200 - 250V~) 9H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Casing size: 126x83 mm (HxB)
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: With screw terminal
Cable entry: 1xM25 top, 2xM25 below
Colour: Hinged lid of the earthed socket blue RAL 5015, hinged lid blue RAL 5015, lower part of the housing gray RAL 7035, upper part of the housing gray RAL 7035, collar gray RAL 7035

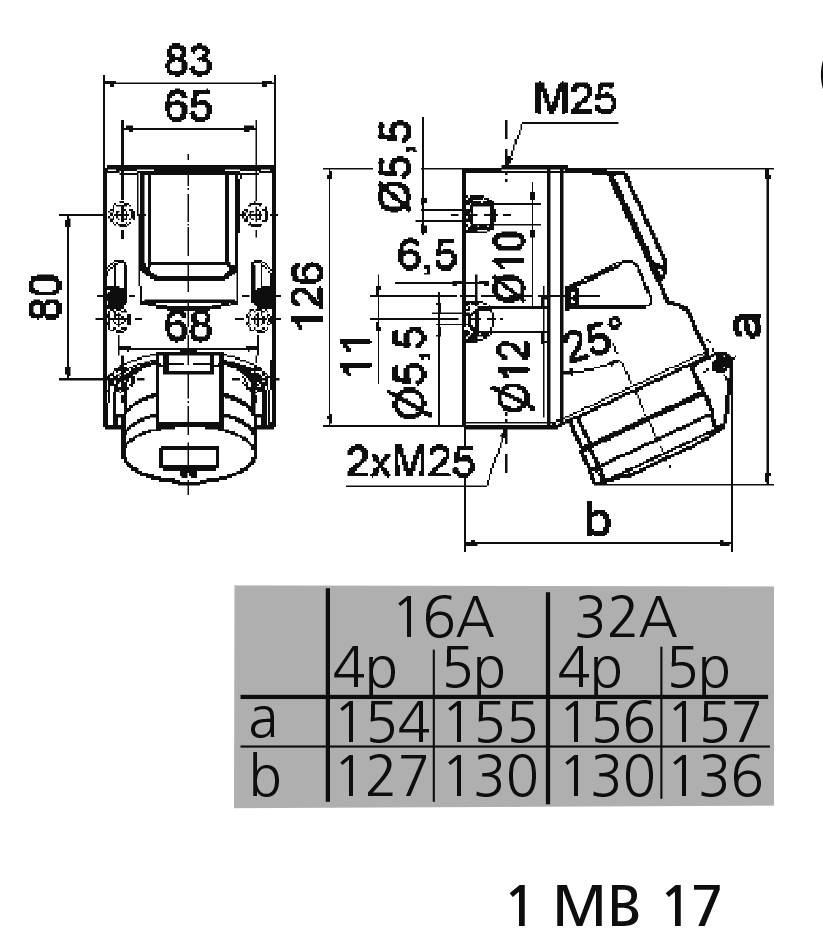

Device height: 157 mm, device width: 83 mm, device depth: 128 mm
Other technical properties: The cable entry is open at the top and closed twice at the bottom, With integrated earthing contact socket 16A 250V AC Belgian-French system, there are 4 mounting holes in the bottom of the housing for breaking off, With 2x hot-melt insert 6.3 A, With 2 fuse socket 5x20 mm DIN 41671, Type 1862, With terminals 3x6 mm² and wired ready for connection
This text is machine translated.
