Bals Elektrotechnik 1018 1018 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: Without
- CEE socket - 32 A: 1x32A5p400V
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Other fixtures and/or empty spaces: 1
- Security: Other
- FI-circuit breaker: Without
- Housing material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Feed/connection possibility: Other
- Diameter entrance: M25
- Cable length 0 m
- Handling: Wall-mounting
- Protection type (IP) IP44
- Military version: No.
- Colour: grey
- Height: 157 mm
- Width 83 mm
- Depth: 134 mm
- Product type
CEE wall socket
- Type B
PG socket
- Cores
5
IP44
- Factory colour
Grey
- Dim
(W x H x D) 83.00 x 157.00 x 134.00 mm
- Length
0 m
- Width
83.00 mm
- Height
157.00 mm
- No. of PG sockets
1
- Content
1 pc(s)
- Number of pins
5
- Depth
134.00 mm
- Material
Plastic
Grey
83
157 mm
134 mm
0 m
Plastic
Untreated
CuZn
IP44
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147171 Bals Elektrotechnik 1018 1018 CEE wall socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147171 Bals Elektrotechnik 1018 1018 CEE wall socket 1 pc(s)
Description
Combined wall socket
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Casing size: 126x83 mm (HxB)
Contact carrier/contacts: The contacts are bare brass
Maximum cross-section of 6.0 sqmm
Housing material: Plastic
Connection technology: With screw terminal
Cable entry: 1xM25 top, 2xM25 below
Colour: Lower part of the casing gray RAL 7035, upper part of the casing gray RAL 7035, collar gray RAL 7035

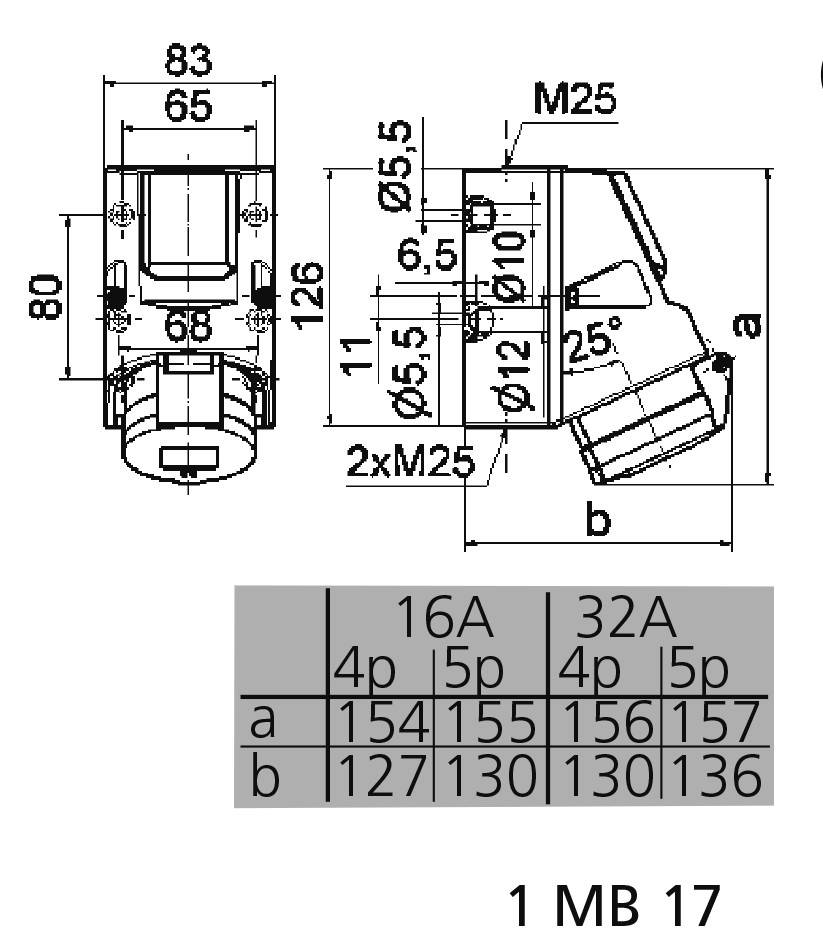

Device height: 157 mm, device width: 83 mm, device depth: 134 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom, With integrated earthing contact socket 16A 250V AC Belgian-French system, there are 4 mounting holes for breaking out in the bottom of the housing, with fuse insert 6.3 A, with fuse socket 5x20 mm DIN 41671, type 1862, with terminals 3x6 mm² and wired ready for connection
This text is machine translated.
32A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Casing size: 126x83 mm (HxB)
Contact carrier/contacts: The contacts are bare brass
Maximum cross-section of 6.0 sqmm
Housing material: Plastic
Connection technology: With screw terminal
Cable entry: 1xM25 top, 2xM25 below
Colour: Lower part of the casing gray RAL 7035, upper part of the casing gray RAL 7035, collar gray RAL 7035
Device height: 157 mm, device width: 83 mm, device depth: 134 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom, With integrated earthing contact socket 16A 250V AC Belgian-French system, there are 4 mounting holes for breaking out in the bottom of the housing, with fuse insert 6.3 A, with fuse socket 5x20 mm DIN 41671, type 1862, with terminals 3x6 mm² and wired ready for connection
This text is machine translated.
