Bals Elektrotechnik 109 109 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- CEE socket - 16 A: 1x16A5p400V
- CEE socket - 32 A: Without
- CEE socket - 63 A: Without
- CEE socket - 125A: Without
- Number of Schuko sockets: 1
- Security: Other
- FI-circuit breaker: Without
- Housing material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Feed/connection possibility: Other
- Diameter entrance: M25
- Cable length 0 m
- Handling: Wall-mounting
- Protection type (IP) IP44
- Military version: No.
- Colour: grey
- Height: 154 mm
- Width 83 mm
- Depth: 130 mm
- Product type
CEE wall socket
IP44
- Factory colour
Grey
- Dim
(W x H x D) 83.00 x 154.00 x 130.00 mm
- Width
83.00 mm
- Height
154.00 mm
- Content
1 pc(s)
- Cable length
0 m
- Depth
130.00 mm
- Material
Plastic
Grey
83
154 mm
130 mm
0 m
Plastic
Untreated
CuZn
IP44
FALSE
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3147093 Bals Elektrotechnik 109 109 CEE wall socket 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3147093 Bals Elektrotechnik 109 109 CEE wall socket 1 pc(s)
Description

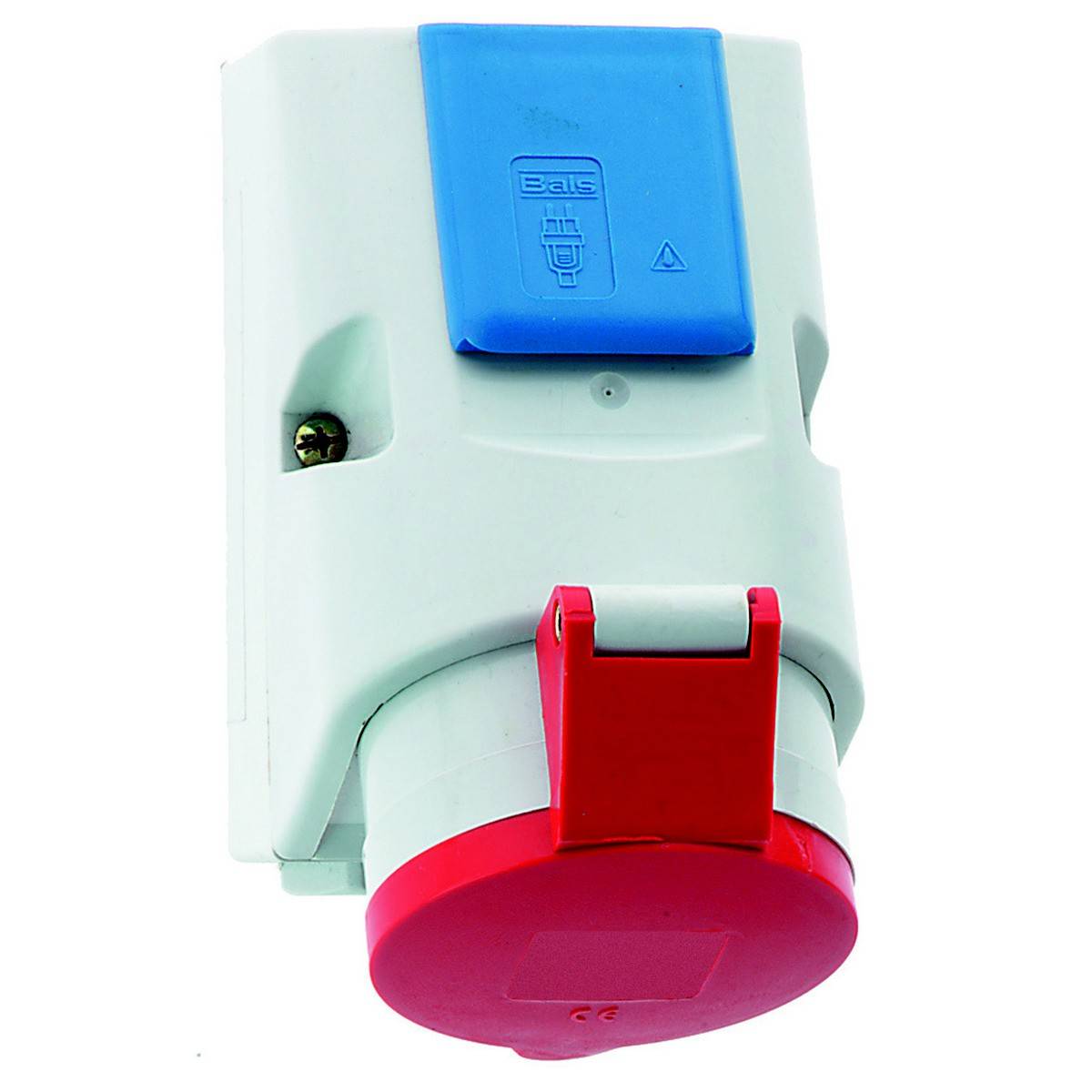

Combined wall socket
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Casing size: 126x83 mm (HxB)
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: With screw terminal
Cable entry: 1xM25 top, 2xM25 below
Colour: Lower part of the casing gray RAL 7035, upper part of the casing gray RAL 7035, collar gray RAL 7035

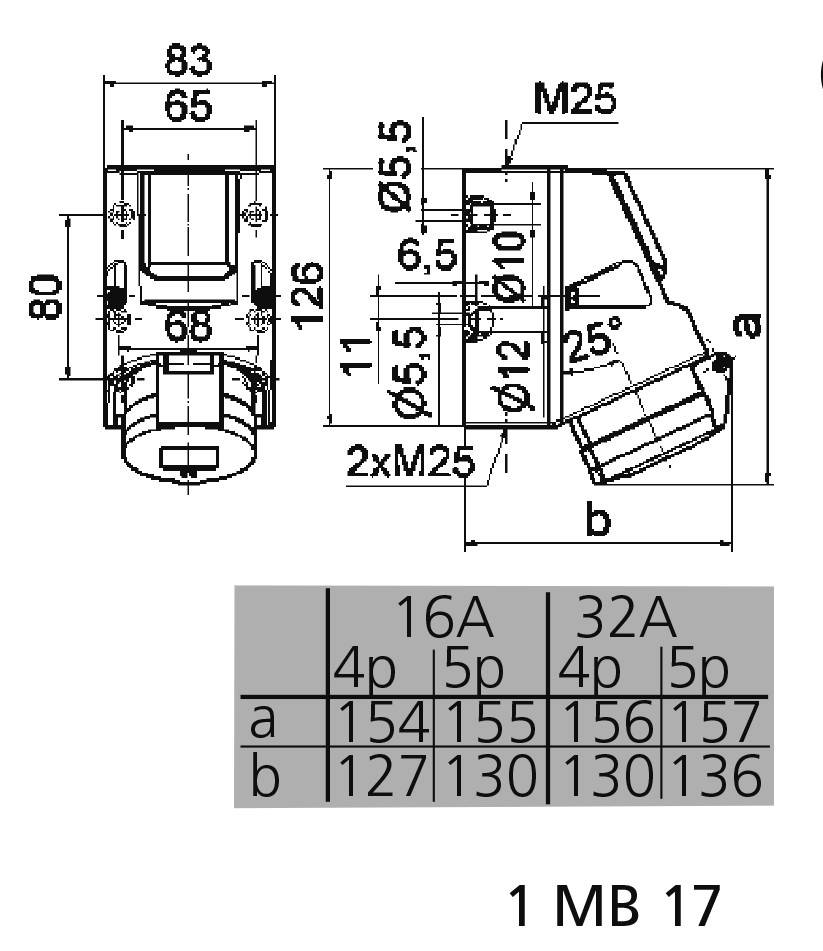

Device height: 154 mm, device width: 83 mm, device depth: 130 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom, With integrated earthing contact socket 16A 250V AC German system, In the bottom of the housing there are 4 mounting holes for breaking off, With fuse insert 6.3 A, With fuse socket 5x20 mm DIN 41671, type 1862, With terminals 3x6 mm² and wired ready for connection
This text is machine translated.
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Casing size: 126x83 mm (HxB)
Contact carrier/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 4.0 sqmm
Housing material: Plastic
Connection technology: With screw terminal
Cable entry: 1xM25 top, 2xM25 below
Colour: Lower part of the casing gray RAL 7035, upper part of the casing gray RAL 7035, collar gray RAL 7035
Device height: 154 mm, device width: 83 mm, device depth: 130 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom, With integrated earthing contact socket 16A 250V AC German system, In the bottom of the housing there are 4 mounting holes for breaking off, With fuse insert 6.3 A, With fuse socket 5x20 mm DIN 41671, type 1862, With terminals 3x6 mm² and wired ready for connection
This text is machine translated.
