Bals Elektrotechnik 11052 11052 CEE wall socket 63.0 A 4-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Surface-mounted version
- IEC current 63 A.
- Number of pins: 4
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- RAL number: 3000
- Protection class (IP) IP67
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Mounting type: Inside mounting
- Military version: No.
- Product type
CEE wall socket
- Nominal voltage
400 V
- Nominal current
63.0 A
- Nominal current - rounded value
63 A
- Type A
Screw terminals
- Type
Surface-mounted
IP67
- Factory colour
Red
- Content
1 pc(s)
- Number of pins
4
- Connection
Screw terminal
- Material (details)
Plastic
- Operating voltage
400 V
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3146439 Bals Elektrotechnik 11052 11052 CEE wall socket 63.0 A 4-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3146439 Bals Elektrotechnik 11052 11052 CEE wall socket 63.0 A 4-pin 400 V 1 pc(s)
Description
Wall socket
63A 4P (3P+PE) 400V (380 - 415V~) 6HR IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size:170x118 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: 1xM40/M20 top, 2xM32 bottom
Colour: Hinged lid red RAL 3000, bayonet ring gray RAL 7035, lower housing gray RAL 7035, housing top gray RAL 7035

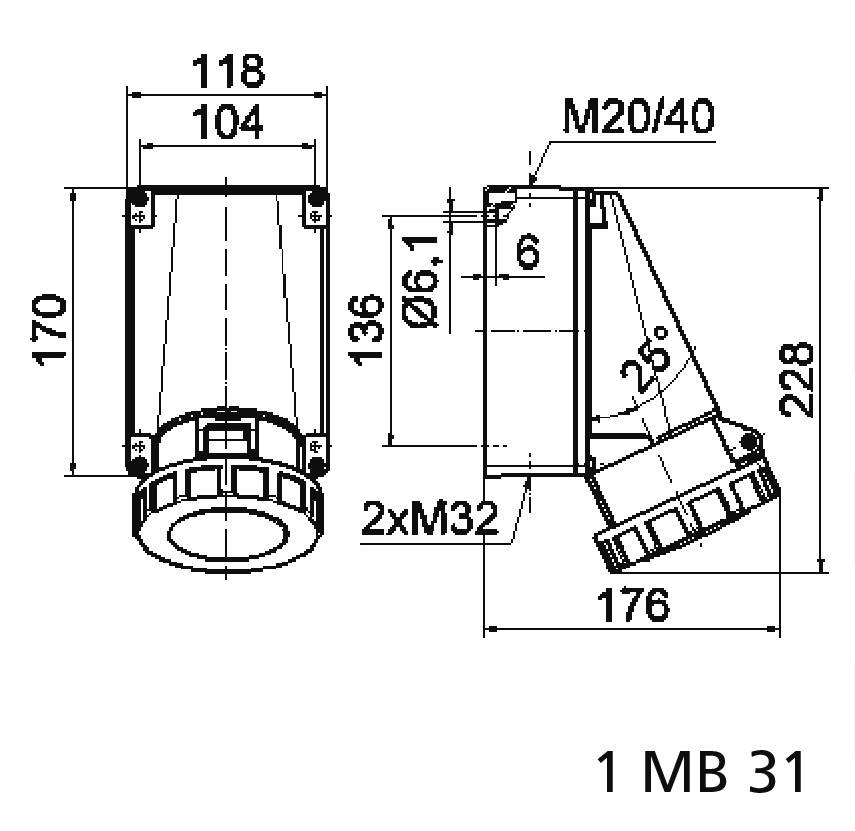

Device height: 228 mm, device width: 118 mm, device depth: 176 mm
Other technical features: Cable entry open twice at the top, closed twice at the bottom, with PSK-locking (pilot switch contact) for a potential-free switching of the integrated auxiliary contact in the pilot hole of the socket., the lower part of the housing can be rotated by 180°
This text is machine translated.
63A 4P (3P+PE) 400V (380 - 415V~) 6HR IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size:170x118 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material, the contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Polycarbonate housing material
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: 1xM40/M20 top, 2xM32 bottom
Colour: Hinged lid red RAL 3000, bayonet ring gray RAL 7035, lower housing gray RAL 7035, housing top gray RAL 7035
Device height: 228 mm, device width: 118 mm, device depth: 176 mm
Other technical features: Cable entry open twice at the top, closed twice at the bottom, with PSK-locking (pilot switch contact) for a potential-free switching of the integrated auxiliary contact in the pilot hole of the socket., the lower part of the housing can be rotated by 180°
This text is machine translated.
