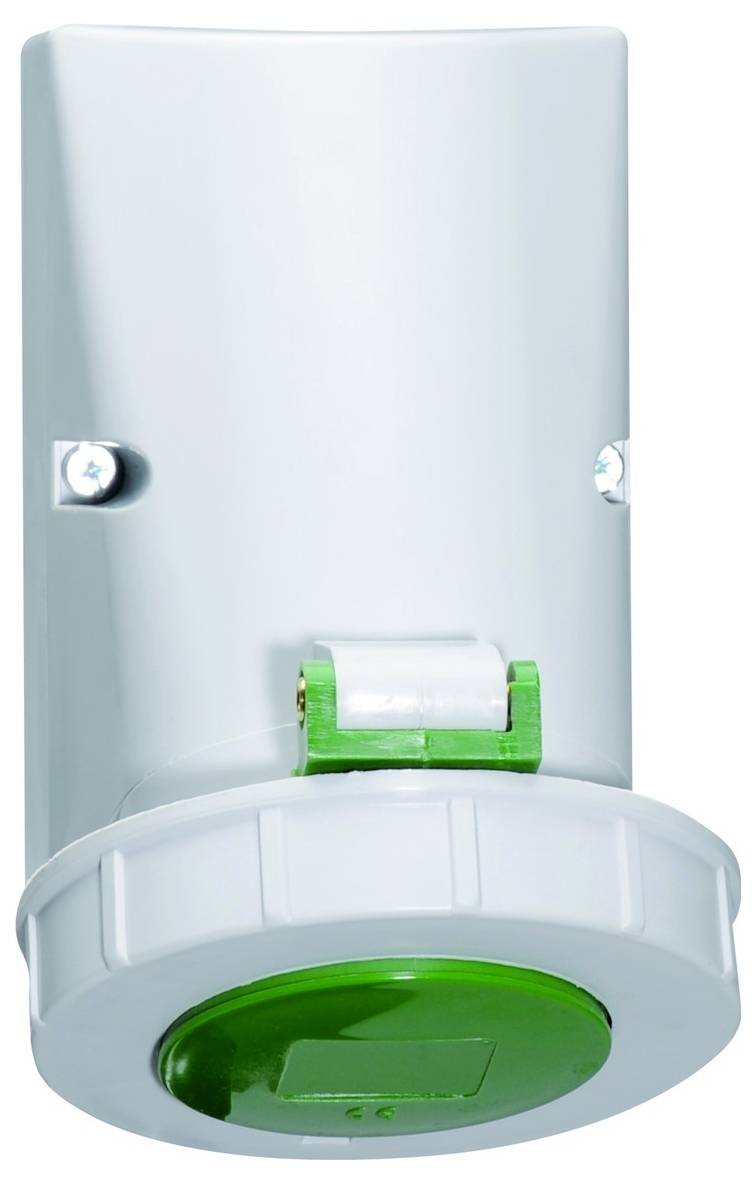

Image similar

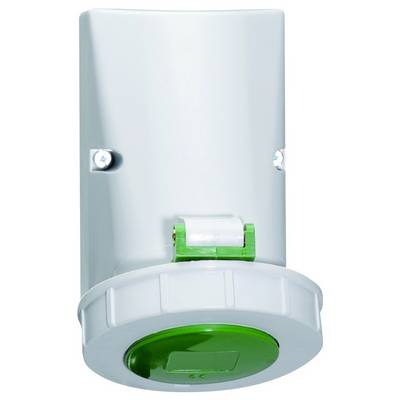

Image similar
Bals Elektrotechnik 11390 11390 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Surface-mounted version
- Material: Plastic
- RAL number: 6002
- Protection class (IP) IP67
- Mounting type: Inside mounting
- IEC current 16 A.
- Voltage according to EN 60309-2: 50-500 V (100-300 Hz) green
- Time setting 10 h
- Colour code: Green
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Untreated
- Insulated installation: Yes
- Military version: No.
- Product type
CEE wall socket
- Cores
5
- Factory colour
RAL 6002 (Leaf Green)
- Dim
(L x W x H) 120 x 86 x 134 mm
- Length
120 mm
- Width
86 mm
- Height
134 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544450 Bals Elektrotechnik 11390 11390 CEE wall socket 1 pc(s)
Description
Wall socket
16A 5p (3P+N+PE) >50V green 100-300Hz (> 50V~) 10h IP67
Frequency: 100 to 300Hz inclusive
Technical color: Green RAL 6002
Body size: 100x75 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry 1xM20 at the top
Colour: Hinged lid green RAL 6002, lower housing gray RAL 7035, upper housing part gray RAL 7035, bayonet ring gray RAL 7035
Device height: 134 mm, device width: 86 mm, device depth: 120 mm
Other technical features: The cable entry is open at the top, sealed at the bottom and rear once, the lower part of the housing can be rotated by 180°
This text is machine translated.
16A 5p (3P+N+PE) >50V green 100-300Hz (> 50V~) 10h IP67
Frequency: 100 to 300Hz inclusive
Technical color: Green RAL 6002
Body size: 100x75 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry 1xM20 at the top
Colour: Hinged lid green RAL 6002, lower housing gray RAL 7035, upper housing part gray RAL 7035, bayonet ring gray RAL 7035
Device height: 134 mm, device width: 86 mm, device depth: 120 mm
Other technical features: The cable entry is open at the top, sealed at the bottom and rear once, the lower part of the housing can be rotated by 180°
This text is machine translated.
