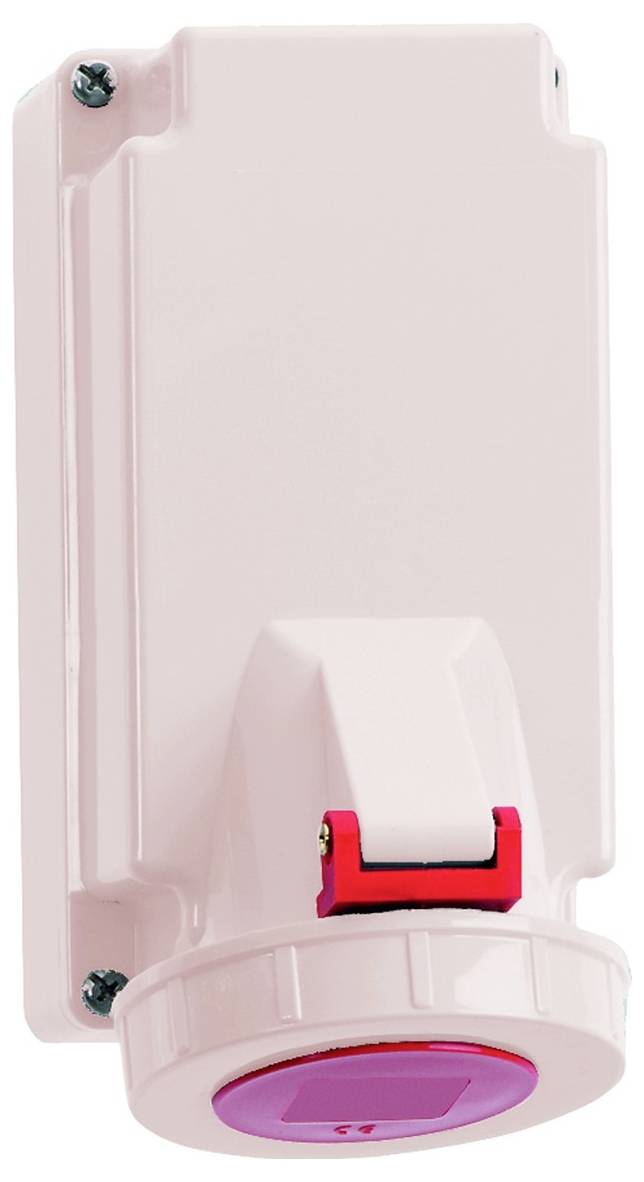

Bals Elektrotechnik 11455 11455 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Surface-mounted version
- Material: Plastic
- RAL number: 3000
- Protection class (IP) IP67
- Mounting type: Inside mounting
- IEC current 16 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Insulated installation: Yes
- Military version: No.
- Product type
CEE wall socket
- Features
Screwless terminals
- Cores
5
- Dim
(W x H) 90 mm x 195 mm
- Width
90 mm
- Height
195 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3545484 Bals Elektrotechnik 11455 11455 CEE wall socket 1 pc(s)
Description
WALL SOCKET QUICK-CONNECT TE
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size:170x90 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Case material: Polycarbonate polyethylene terephthalate lightbeige
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: 1xM20 top, 1xM25/20 down
Colour: Red hinged lid RAL 3000, light beige bayonet ring, light beige housing, light beige lower case of housing
Device height: 195 mm, device width: 90 mm, device depth: 123 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°
This text is machine translated.
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Housing size:170x90 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 4.0 sqmm
Case material: Polycarbonate polyethylene terephthalate lightbeige
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: 1xM20 top, 1xM25/20 down
Colour: Red hinged lid RAL 3000, light beige bayonet ring, light beige housing, light beige lower case of housing
Device height: 195 mm, device width: 90 mm, device depth: 123 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°
This text is machine translated.
