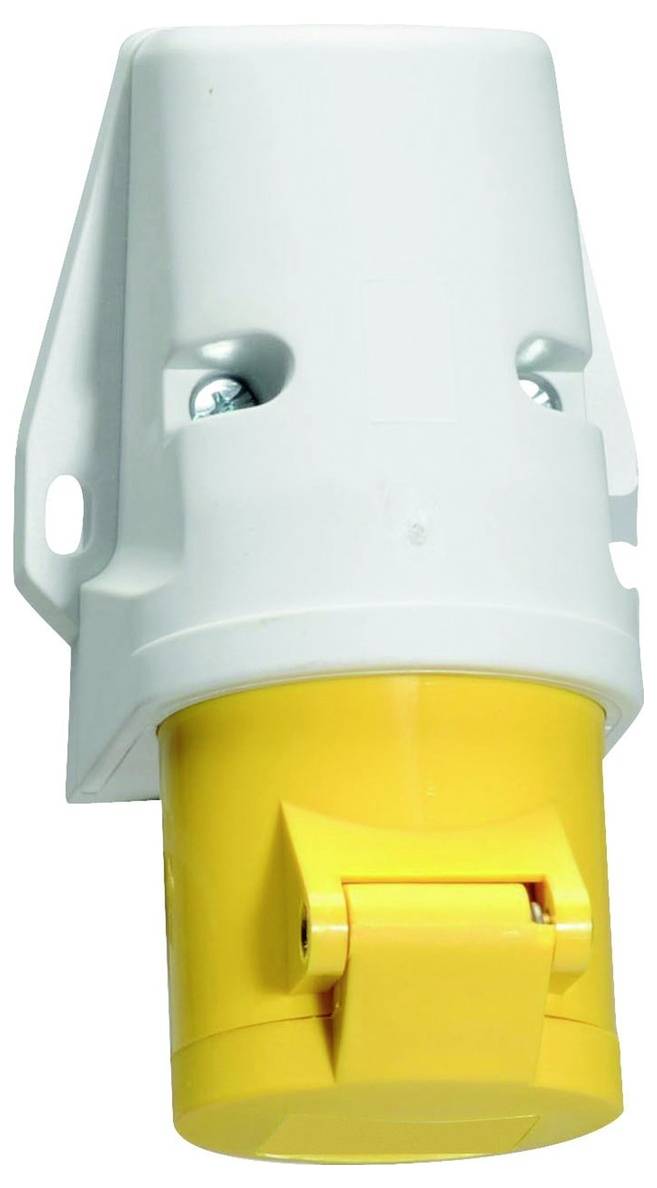

Bals Elektrotechnik 11724 11724 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Surface-mounted version
- Material: Plastic
- RAL number: 1012
- Protection type (IP) IP44
- Mounting method: Outdoor mounting
- IEC current 16 A.
- Voltage according to EN 60309-2: 110 V (50+60 Hz) yellow
- Time setting 4 h
- Colour code: Yellow
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Untreated
- Insulated installation: Yes
- Military version: No.
- Product type
CEE wall socket
- Cores
5
- Dim
(L x W x H) 99 x 87 x 131 mm
- Length
99 mm
- Width
87 mm
- Height
131 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546523 Bals Elektrotechnik 11724 11724 CEE wall socket 1 pc(s)
Description
Wall socket
16A 5P (3P+N+PE) 110V (57/100 - 75/130V~) 4H IP44
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
90x87 mm (HxB) housing size
Contact holder/contacts: The contacts are bare brass, the contact carrier is made of polyamide
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: 1xM25 at the top
Colour: Hinged cover yellow RAL 1012, lower part gray RAL 7035, upper part of housing gray RAL 7035, yellow collar RAL 1012
Device height: 131 mm, device width: 87 mm, device depth: 99 mm
Other technical characteristics: The cable entry is open at the top once and is closed at one time in the floor
This text is machine translated.
16A 5P (3P+N+PE) 110V (57/100 - 75/130V~) 4H IP44
Mains frequency: 50/60Hz.
Technical color: Yellow RAL 1012
90x87 mm (HxB) housing size
Contact holder/contacts: The contacts are bare brass, the contact carrier is made of polyamide
Maximum cross-section of 4.0 sqmm
Housing material: Polyamid
Connection technology: With screw terminal
Cable entry: 1xM25 at the top
Colour: Hinged cover yellow RAL 1012, lower part gray RAL 7035, upper part of housing gray RAL 7035, yellow collar RAL 1012
Device height: 131 mm, device width: 87 mm, device depth: 99 mm
Other technical characteristics: The cable entry is open at the top once and is closed at one time in the floor
This text is machine translated.
