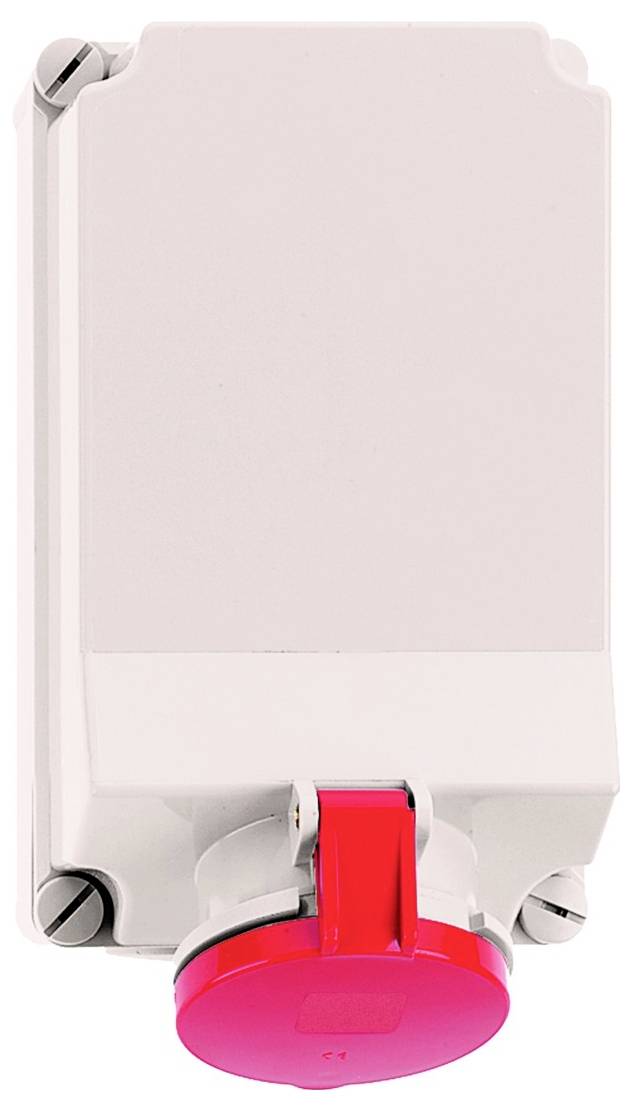

Bals Elektrotechnik 11803 11803 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 5
- Surface-mounted version
- Material: Plastic
- RAL number: 3000
- Protection type (IP) IP44
- Mounting type: Inside mounting
- IEC current 63 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Insulated installation: Yes
- Military version: No.
- Product type
CEE wall socket
- Type A
CEE socket
- Cores
5
- Dim
(L x W x H) 192 x 160 x 302 mm
- Length
192 mm
- Width
160 mm
- Height
302 mm
- Content
1 pc(s)
- Number of pins
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544454 Bals Elektrotechnik 11803 11803 CEE wall socket 1 pc(s)
Description
TE wall socket
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Cabinet size: 260x160 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Case material: Polycarbonate polyethylene terephthalate lightbeige
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: 1xM40 top, 1xM40/M32 bottom
Colour: Red hinged lid RAL 3000, light beige lower part of housing, pale beige upper part of housing, pale beige casing screws
Device height: 302 mm, device width: 160 mm, device depth: 192 mm
Other technical features: The cable entry is open once at the top and twice at the bottom
This text is machine translated.
63A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Cabinet size: 260x160 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Case material: Polycarbonate polyethylene terephthalate lightbeige
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: 1xM40 top, 1xM40/M32 bottom
Colour: Red hinged lid RAL 3000, light beige lower part of housing, pale beige upper part of housing, pale beige casing screws
Device height: 302 mm, device width: 160 mm, device depth: 192 mm
Other technical features: The cable entry is open once at the top and twice at the bottom
This text is machine translated.
