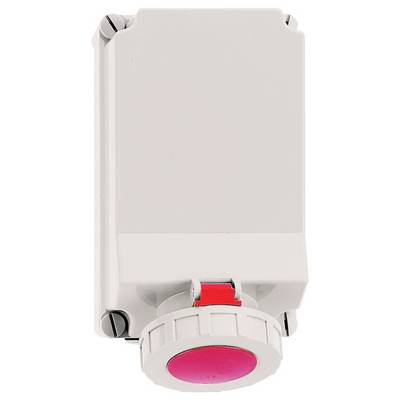

Image similar

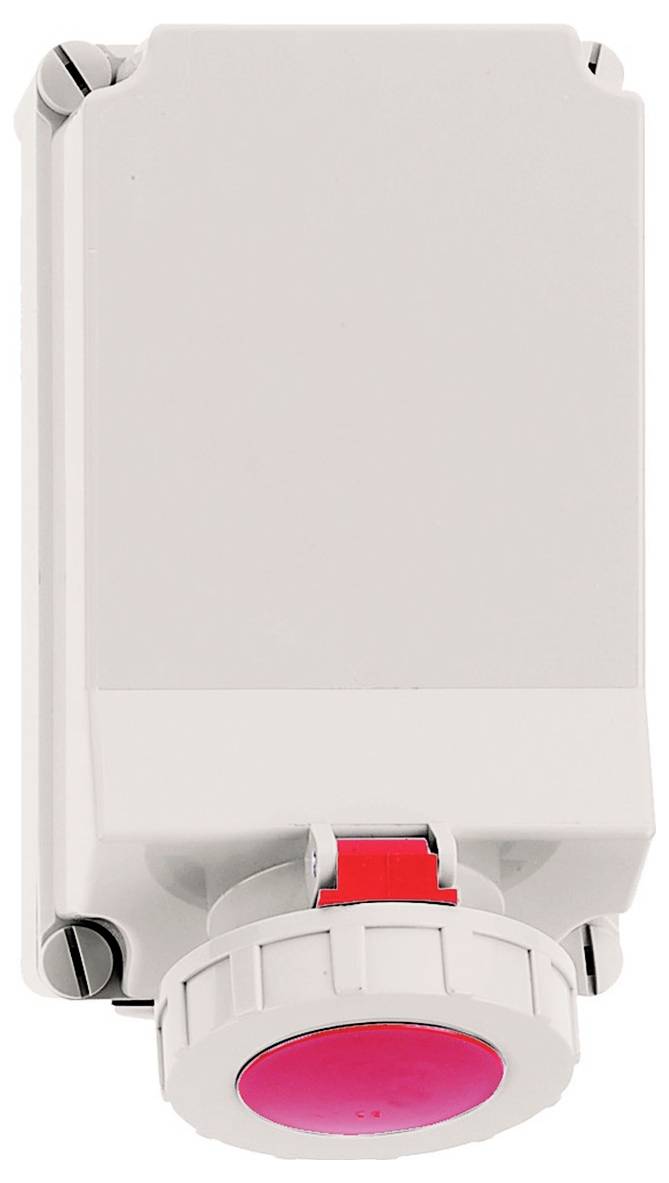

Image similar
Bals Elektrotechnik 11827 11827 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of pins: 4
- Surface-mounted version
- Material: Plastic
- RAL number: 3000
- Protection class (IP) IP67
- Mounting type: Inside mounting
- IEC current 63 A.
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- Connection technology: Screw terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Nickel-plated
- Insulated installation: Yes
- Military version: No.
- Product type
CEE wall socket
- Cores
4
- Dim
(L x W x H) 195 x 160 x 304 mm
- Length
195 mm
- Width
160 mm
- Height
304 mm
- Content
1 pc(s)
- Number of pins
4
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3546524 Bals Elektrotechnik 11827 11827 CEE wall socket 1 pc(s)
Description
TE wall socket
63A 4P (3P+PE) 400V (380 - 415V~) 6HR IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Cabinet size: 260x160 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Case material: Polycarbonate polyethylene terephthalate lightbeige
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: 1xM40 top, 1xM40/M32 bottom
Colour: Red hinged lid RAL 3000, light beige lower case section, light beige case of housing, pale beige case of housing, pale beige bayonet ring
Device height: 304 mm, device width: 160 mm, device depth: 195 mm
Other technical features: The cable entry is open once at the top and twice at the bottom
This text is machine translated.
63A 4P (3P+PE) 400V (380 - 415V~) 6HR IP67
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Cabinet size: 260x160 mm (HxB)
Contact holder/contacts: The contact carrier is made of high heat resistant material. The contacts are nickel-plated brass
Maximum cross-section of 25.0 sqmm
Case material: Polycarbonate polyethylene terephthalate lightbeige
Connection technology: Screw terminals as frame terminals with contex contact
Cable entry: 1xM40 top, 1xM40/M32 bottom
Colour: Red hinged lid RAL 3000, light beige lower case section, light beige case of housing, pale beige case of housing, pale beige bayonet ring
Device height: 304 mm, device width: 160 mm, device depth: 195 mm
Other technical features: The cable entry is open once at the top and twice at the bottom
This text is machine translated.
