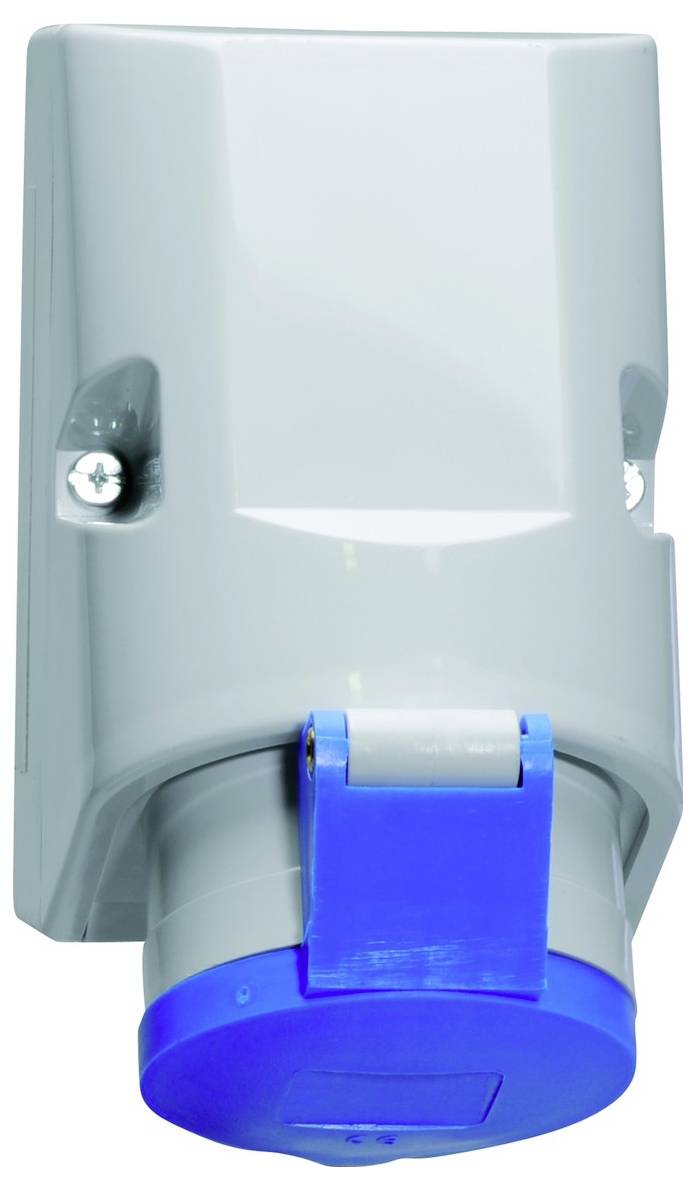

Bals Elektrotechnik 11949 11949 CEE wall socket 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Number of poles: 3
- Surface-mounted version
- Material: Plastic
- RAL number: 5015
- Protection type (IP) IP44
- Mounting type: Inside mounting
- IEC current 32 A.
- Voltage according to EN 60309-2: 230 V (50+60 Hz) blue
- Time setting 6 h
- Colour code: Blue
- Connection technology: Screw less terminal
- Cable entry: Screw connection
- Contact material CuZn
- Surface treatment contacts: Untreated
- Insulated installation: Yes
- Military version: No.
- Product type
CEE wall socket
- Features
Screwless terminals
- Cores
3
- Dim
(L x W x H) 130 x 83 x 156 mm
- Length
130 mm
- Width
83 mm
- Height
156 mm
- Content
1 pc(s)
- Number of pins
3
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547615 Bals Elektrotechnik 11949 11949 CEE wall socket 1 pc(s)
Description
Wall socket quick-connect
32A 3P (2P+PE) 230V (200 - 250V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Casing size: 126x83 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: 1xM25 top, 2xM25 below
Colour: Hinged lid blue RAL 5015, lower part gray RAL 7035, upper part of housing gray RAL 7035, collar gray RAL 7035
Device height: 156 mm, device width: 83 mm, device depth: 130 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°, and the bottom of the housing contains 4 fixing holes for breaking off
This text is machine translated.
32A 3P (2P+PE) 230V (200 - 250V~) 6H IP44
Mains frequency: 50/60Hz.
Technical color: Blue RAL 5015
Casing size: 126x83 mm (HxB)
Contact holder/contacts: The contact carrier is made of polyamide, the contacts are bare brass
Maximum cross-section of 10.0 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with Kontex contact
Cable entry: 1xM25 top, 2xM25 below
Colour: Hinged lid blue RAL 5015, lower part gray RAL 7035, upper part of housing gray RAL 7035, collar gray RAL 7035
Device height: 156 mm, device width: 83 mm, device depth: 130 mm
Other technical features: The cable entry is open at the top and closed twice at the bottom. The lower part of the housing can be rotated by 180°, and the bottom of the housing contains 4 fixing holes for breaking off
This text is machine translated.
